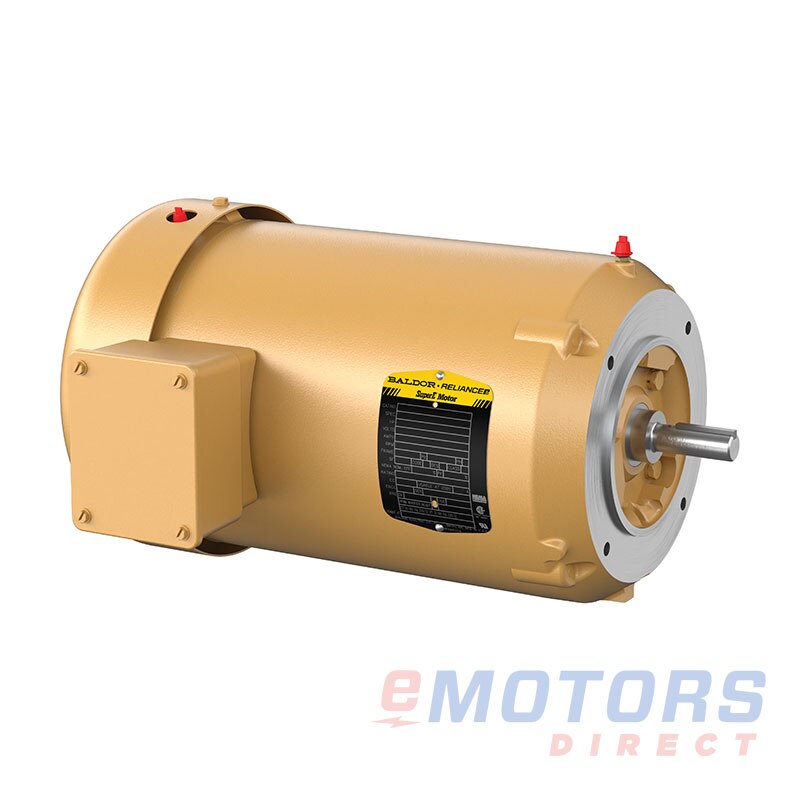

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor VNM3542

Baldor · General purpose, three phase, totally enclosed, C-Face, footless
5.0
3/4 HP 1725 56C TENV 230V|460V General Purpose AC Motors
Catalog Number: VNM3542
Spec Number: 34K13-3820
HP
3/4
RPM
1800
Voltage
230V, 460V
Frame
56C
Phase
3
Enclosure
TENV
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor General Purpose three-phase motor is designed for reliable, high-performance operation across a wide range of applications. This motor features a totally enclosed construction, providing protection from dust, dirt, and moisture for enhanced durability. Its C-Face design ensures easy mounting and alignment with various equipment, offering flexibility in installation. With a footless configuration, it is ideal for use in applications where space is limited or where mounting flexibility is needed. This versatile motor is built to deliver long-lasting, efficient performance in industrial and commercial settings.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

Baldor: General purpose, three phase, totally enclosed, C-Face, footless (116)

VEM3538-51/21770575V56C $721.28
VEM35381/21775230V, 460V56C $721.28
VEM3542-53/41765575V56C $766.00
VENM354611745230V, 460V56C $895.21
VENM3546T11745230V, 460V143TC $907.28
VEM3558T21760230V, 460V145TC $939.93
VEM3611T-531760575V182TC $998.15
VEM3611T31760230V, 460V182TC $998.15
VEM3615T-551750575V184TC $1,028.67
VEM3615T51750230V, 460V184TC $1,028.67
VEM3610T-533450575V182TC $1,115.28
VEM3610T33450230V, 460V182TC $1,115.28
VENM3581T11745230V, 460V143TC $1,142.97
VEM3581T-511760575V143TC $1,142.97
VEM3581T11760230V, 460V143TC $1,142.97
VEM358111760230V, 460V56C $1,142.97
VEM3584T-51 1/21765575V145TC $1,182.73
VEM3584T1 1/21765230V, 460V145TC $1,182.73
VEM3613T-553450575V184TC $1,227.45
VEM3613T53450230V, 460V184TC $1,227.45
VEM3587T-521750575V145TC $1,236.68
VEM3587T21750230V, 460V145TC $1,236.68
VEM3614T21170230V, 460V184TC $1,296.31
VEM3661T-531755575V182TC $1,433.33
VEM3661T31755230V, 460V182TC $1,433.33
VEM3665T-551750575V184TC $1,463.86
VEM3665T51750230V, 460V184TC $1,463.86
VEM3664T21165230V, 460V184TC $1,561.82
VEM3616T7 1/23450230V, 460V184TC $1,592.35
VEM3663T53480230V, 460V184TC $1,692.45
VEM3710T-57 1/21770575V213TC $1,712.33
VEM3710T7 1/21770230V, 460V213TC $1,712.33
VEM3704T31160230V, 460V213TC $1,739.30
VEM3709T-57 1/23470575V213TC $1,874.90
VEM3709T7 1/23450230V, 460V213TC $1,874.90
VEM3711T-5103490575V215TC $1,898.33
VEM3711T103490230V, 460V215TC $1,898.33
VEM3714T-5101770575V215TC $1,912.52
VEM3714T101770230V, 460V215TC $1,912.52
VEM3708T51165230V, 460V215TC $1,943.76
VEM3770T-57 1/21770575V213TC $1,987.07
VEM3770T7 1/21770230V, 460V213TC $1,987.07
VEM3774T-5101760575V215TC $2,201.46
VEM3713T-5153500575V215TC $2,611.80
VEM3713T153450230V, 460V215TC $2,611.80
VEM4106T203520230V, 460V256TC $3,915.21
VEM4107T253530230V, 460V284TSC $5,123.49
VEM4103T251775230V, 460V284TC $5,179.58
VEM4108T303520230V, 460V286TSC $5,917.18
VEM4104T301760230V, 460V286TC $5,976.11

General purpose, three phase, totally enclosed, C-Face, footless

Features

  • Designed for 60 Hz operation with 50 Hz specifications for 2, 4, and 6-pole models ranging from 1 to 125 HP
  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2, unless otherwise indicated
  • Easy F1 to F2 conversion on cast iron frames
  • Built for durability, with a 3-year warranty on NEMA Premium® efficient motors

Applications

  • General-purpose use
  • Fans and ventilation
  • Conveying systems
  • Blowers and air handling
  • Compressors and pressure systems
  • Pumps for fluid movement
  • Industrial machinery and equipment
Electrical Data
Rated Motor Output Power
3/4 HP
Rated Motor Speed
1725 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
2.6/1.3 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
3.2
Service Factor
1.25
KVA Code
L
Nominal Efficiency
75
Nominal Power Factor
71
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TENV
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.75"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
3-Year
