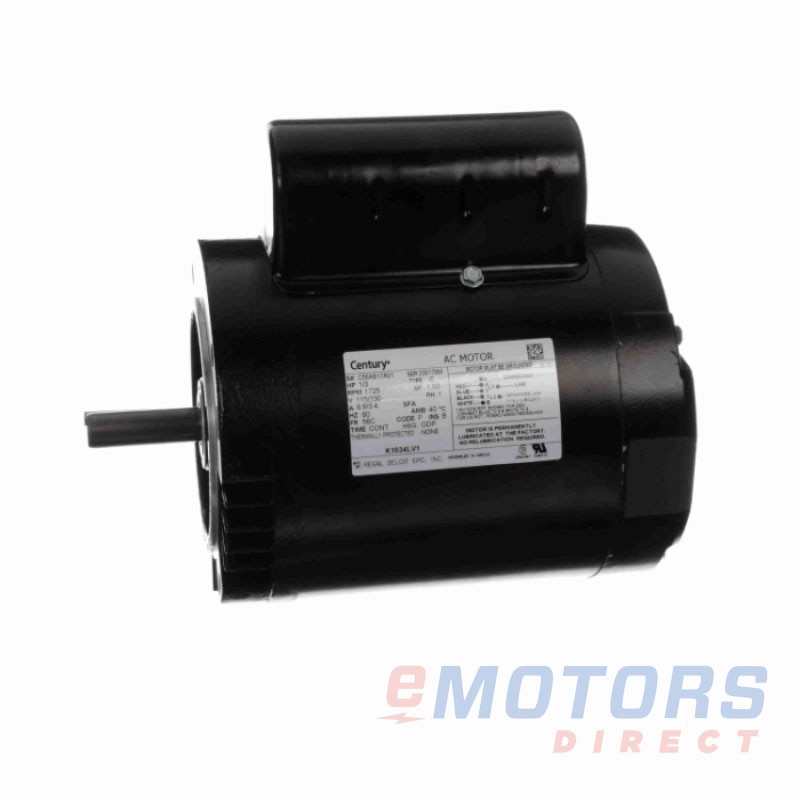

Century K1034LV1

Century · General Purpose Single Phase, ODP, C-Face Rigid Base
1/3 HP 1725 56C ODP 115V|230V General Purpose
Catalog Number: K1034LV1
HP
1/3
RPM
1800
Voltage
115V, 230V
Frame
56C
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

These general purpose motors from Century offer dependable and energy efficient operation. They are high-quality motors built for Canada’s top industries. Find OAO, ODP, TEAO, TEFC, TENV enclosure types, and single- or 3-phase power input. Plus, a range of mounting options for your application.

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Century: General Purpose Single Phase, ODP, C-Face Rigid Base (3)

K1034LV11/31725115V, 230V56C $164.26
B652ES3/43450115V, 230V56 $377.15
V10821725115V, 208-230V145TC $910.21

Feature

  • Heavy gauge steel frame and base
  • Ball bearings
  • Capacitor start/capacitor run designs
Electrical Data
Rated Motor Output Power
1/3 HP
.24 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
6.8/3.4 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.5
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
ODP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.56"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
Ball
NDE Bearing
Ball
Shaft Diameter
0.625"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
