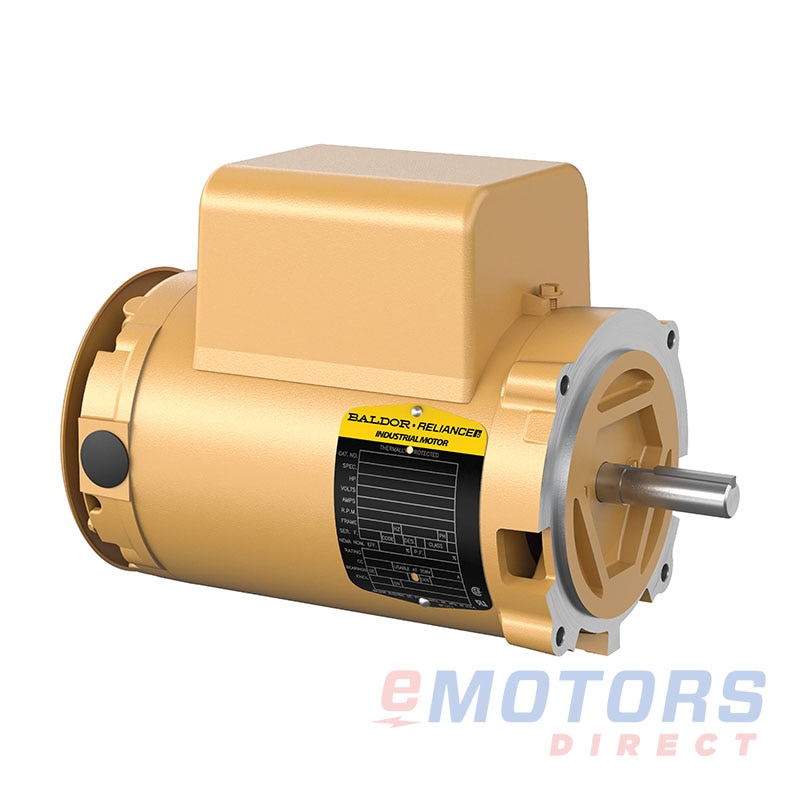

Baldor VEL11301A

Baldor · General Purpose, single phase, ODP, C-face footless
1/3 HP 1740 56C ODP 115V|230V General Purpose AC Motors
Catalog Number: VEL11301A
Spec Number: 34L588R213G1
HP
1/3
RPM
1800
Voltage
115V, 230V
Frame
56C
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor general-purpose motor is a single-phase, open drip-proof (ODP) motor with a C-face footless design, ideal for a wide range of industrial applications. It is equipped with manual thermal overload protection to prevent overheating, while the capacitor start and run design ensures smooth, reliable operation. The motor is available in 1.5 horsepower models, rated at 14 amps or less on 115 volts, providing a powerful yet energy-efficient solution. With UL and CSA recognized components, this motor meets the highest standards of safety and quality, making it an excellent choice for use in pressure washers, steam cleaners, and other industrial systems requiring durable, efficient performance.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

General Purpose, single phase, ODP, C-face footless

Features

  • Quiet operation with a vibration-dampening base for reduced noise
  • Dynamically balanced rotor extends bearing life and improves performance
  • Advanced switch design ensures efficient torque delivery
  • Built with heavy-duty steel for maximum durability
  • Optimized airflow system delivers higher horsepower in a compact design

Applications

  • Industrial machine tools
  • Air handling systems
  • Conveyor machinery
  • Pumping systems
  • Material handling equipment
  • Fan installations
Electrical Data
Rated Motor Output Power
1/3 HP
.2475 kW
Rated Motor Speed
1740 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
3.4/1.7 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
2.1
Service Factor
1.35
KVA Code
K
Nominal Efficiency
72.4
Nominal Power Factor
85
Leads (Qty, Size)
2
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
ODP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11"
NEMA Design
N
Degree of Protection (IP)
IP22
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
35 °C
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.88"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus
Country of Origin
USA
Warranty
-
