Product images are for reference only. Please review product specifications for the most accurate and detailed information.

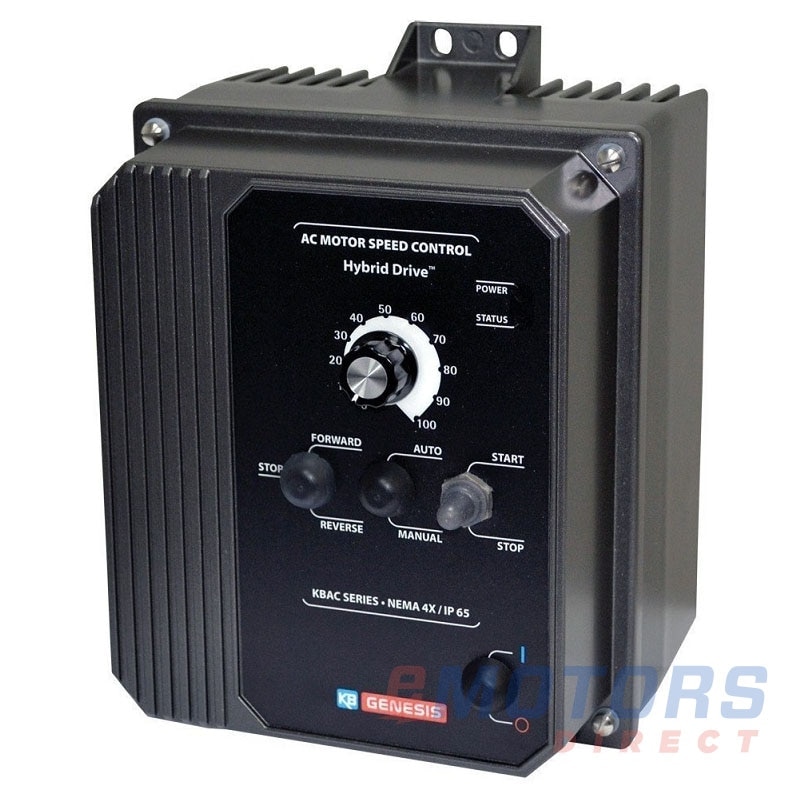

KB Electronics KBAC-29 (1P) Black

KB Electronics · KBAC - VFD
KBAC Hybrid Drive - NEMA 4X 3 HP 230V (No.10001)
Catalog Number: KBAC-29 (1P) Black
Part Number: 10001
HP
3
Input Voltage
230V
Output Voltage
230V
Input Phase
1
Enclosure
NEMA 4X

Product-line overview

The KB Electronics KBAC series VFDs are secured inside a NEMA 4X enclosure, a heavy-duty housing rated for IP 65 for protection in washdown environments. These digital drives have an analog interface and are rated for single- or 3-phase input. Select from 12 models rated for 1 HP up to 5 HP.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)
Edmonton, AB: In Stock

On Order

2 Expected 8/10/2026

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

The KBAC Series of Adjustable Frequency Drives consist of twelve inverter models rated from 1/8 to 10 horsepower. These drives are housed in a heavy duty NEMA 4X/IP 65 die-cast aluminum washdown enclosure for indoor or outdoor use. Hybrid drives are a digital drive with an analog interface.

Electrical Data
HP CT Rating
3 HP
HP VT Rating
-
Input
Output
Voltage
230V
230V
Max CT Current
20.5
9
Max VT Current
-
-
Phase
1
3
Hz Range
50-60
0-120
Physical Data
Weight
-
Height
7.55"
Width
9.8"
Depth
7.25"
Enclosure
NEMA 4X
Degree of Protection (IP)
IP65
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
