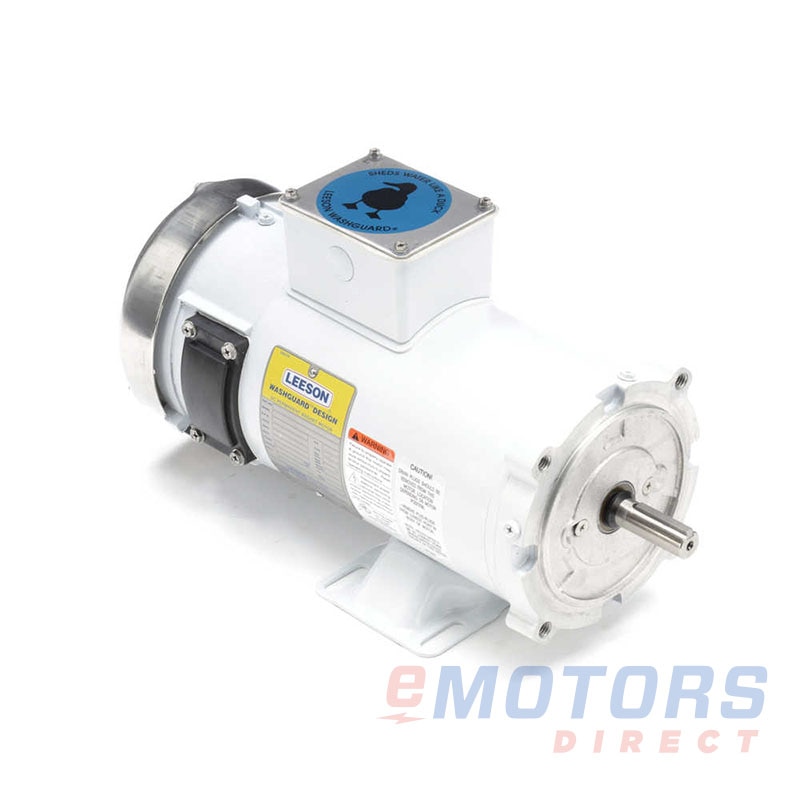

Leeson 108231.00

Leeson · Washguard DC Motor
1 HP 1750 56C TEFC 180V Washdown
Catalog Number: 108231.00
Model Number: C4D17WK2
HP
1
RPM
1800
Voltage
180V
Frame
56C
Phase
DC
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Ideal for applications where washdown and sterilization are frequent, Leeson washdown electric motors are TEAO, TEFC, or TENV enclosed. They are available in a variety of frame sizes and mounting options. Available in single-phase, three-phase, or DC power input options to suit your application.

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

LEESON Washguard Duty motors are designed for extended life in applications requiring regular washdown or otherwise wet environments. These White Epoxy painted and All Stainless DC motors retard the entrance of water during cleaning operations and their drain holes release and water that does enter the motor. The interior of the motor is also coated, which offers extra protection to the motor’s interior surfaces to prevent corrosion.

Feature

  • High Quality 303 Stainless Steel Shafts
  • Spring loaded contact seals and patented “V” ring Forsheda seal
  • Interior surfaces are protected by an enamel and polyester coating
  • External surfaces painted with USDA approved Epoxy paint
  • Stainless steel fan guards and conduit box cover
  • Double sealed, over-sized bearings
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
180V
Rated Motor Current
5 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
85
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.82"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
