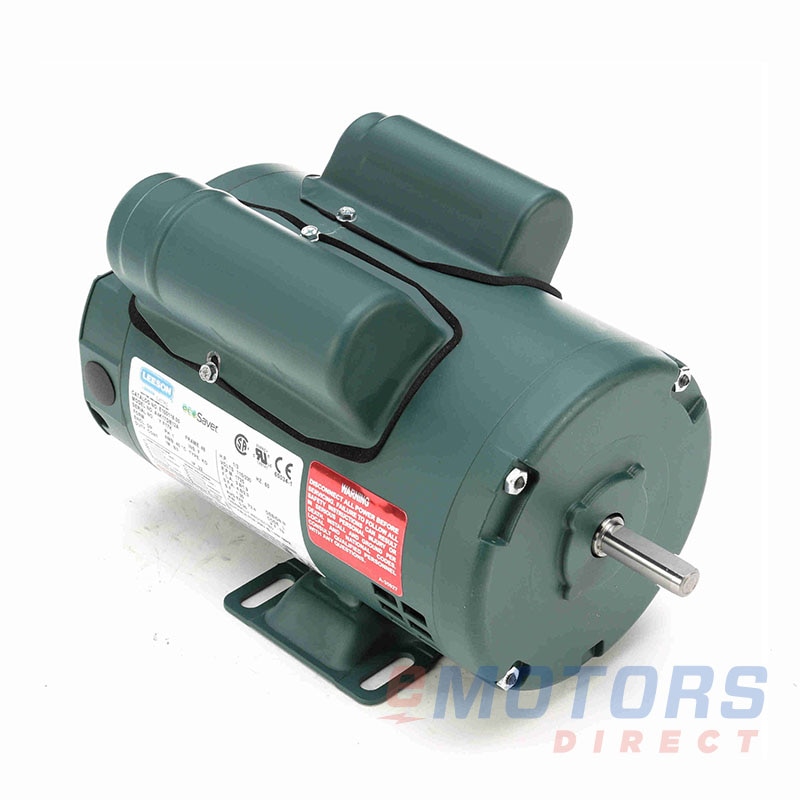

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson E100116.00

Leeson · Single Phase Rolled Steel ODP
1/3HP 1800 48 ODP 115V|208-230V General Purpose
Catalog Number: E100116.00
Model Number: A4K17DB12
HP
1/3
RPM
1800
Voltage
115V, 208-230V
Frame
48
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

Leeson’s line of general purpose motors has hundreds of standard, off-the-shelf models for a variety of industrial applications. Choose from ODP, TEFC, or TENV enclosure options and single-phase or three-phase power input. Match your application with ¼ HP up to 200 HP and RPM from 900 to 3600.

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Leeson: Single Phase Rolled Steel ODP (1)

E100116.001/31800115V, 208-230V48 $427.99

Description

For use where water and dust exposure is minimal. Ideally suited for use on pumps,
compressors, blowers, fans and other standard industrial applications

Feature

  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified
Electrical Data
Rated Motor Output Power
1/3 HP
.25 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
3.8/1.9 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.35
KVA Code
L
Nominal Efficiency
72.4
Nominal Power Factor
79
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.62"
NEMA Design
N
Degree of Protection (IP)
IP22
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
MEXICO
Warranty
1-Year
