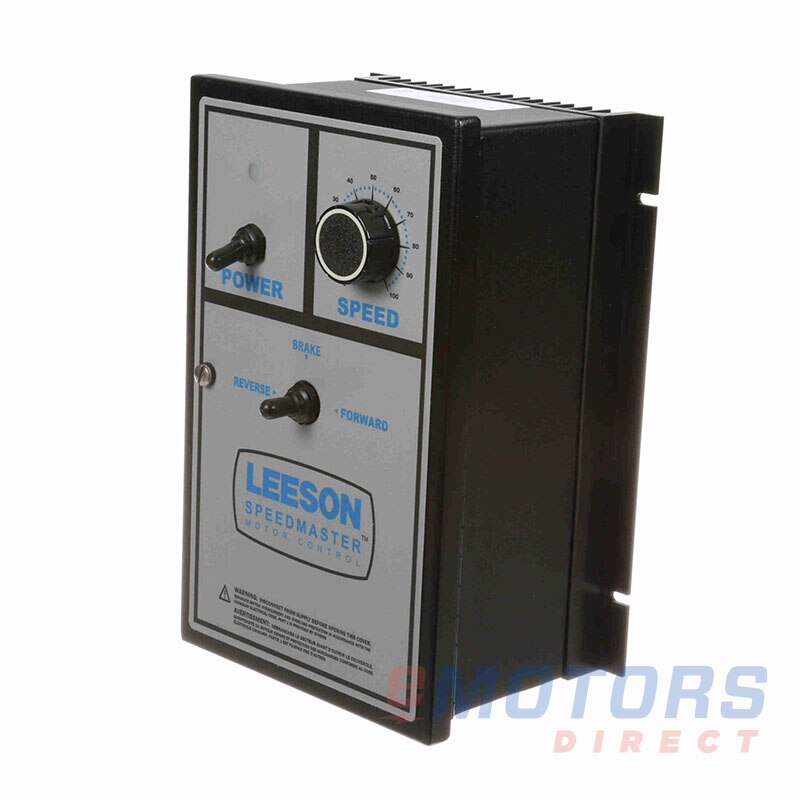

Marathon 175720.00

Marathon
1HP 115V | 2HP 230V 1 PHASE INPUT DC PHASE OUTPUT REGENERATIVE SCR DRIVES
Catalog Number: 175720.00
HP
1, 2
Input Voltage
115V, 230V
Output Voltage
90V, 180V
Input Phase
1
Enclosure
NEMA 4X
Availability: Factory Order (3-4 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: Out of Stock
Factory Ordered: 3-4 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Overview

The 175720.00 drive is a full-wave, fourquadrant regenerative SCR drive that provides smooth motoring and braking torque for brush-type DC motors from 1/8 through 2 HP, for a single or bi- directional variable speed, without using mechanical contactors.

Electrical Data
HP CT Rating
1,2 HP
HP VT Rating
2,3 HP
Input
Output
Voltage
115V,230V
180V,90V
Max CT Current
6.49
10
Max VT Current
-
-
Phase
1
DC
Hz Range
48-62
-
Physical Data
Weight
-
Height
9.78"
Width
6.92"
Depth
5.49"
Enclosure
NEMA 4X
Degree of Protection (IP)
-
Frame
-
Ambient Temp
10°C - 40°C
Additional Data
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
