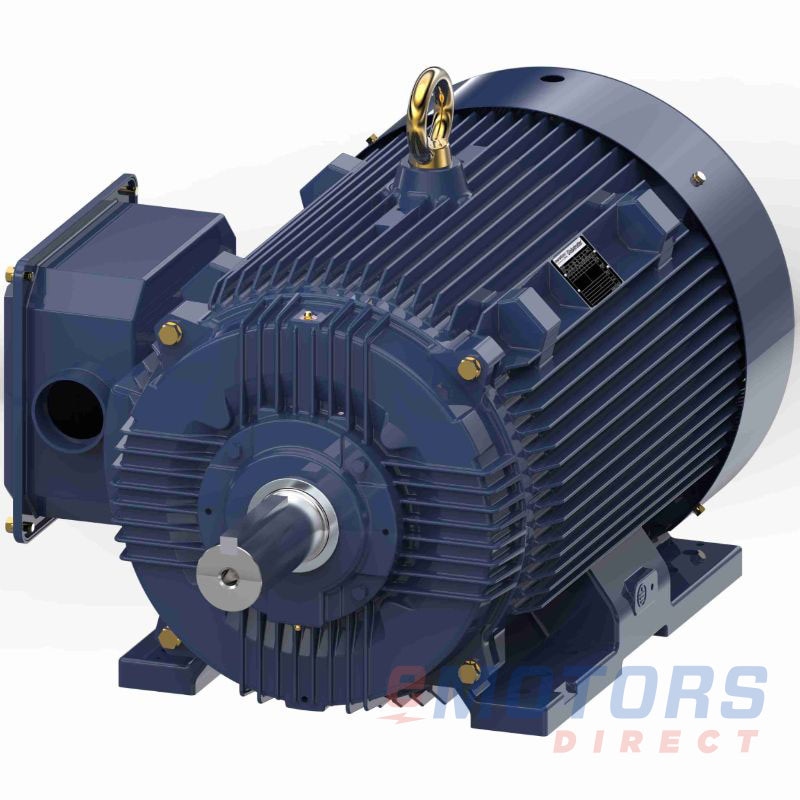

Marathon GT10135

Marathon · Globetrotter
150 HP 1200 445T TEFC 460V General Purpose
Catalog Number: GT10135
Model Number: 445TTFCD6088
HP
150
RPM
1200
Voltage
460V
Frame
445T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

Marathon’s line of general purpose motors is designed to meet the demands of some of the toughest industries, aggregate, manufacturing, mining, and more. These electric motors meet or exceed NEMA Premium® efficiency standards. Select the HP, RPM, and voltage ratings to match your requirements.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Marathon: Globetrotter (426)

GT191031762575V182TC $473.24
GT1210A31762230V, 460V182TC $489.55
GT1210A-P31762230V, 460V182TC $629.74
GT131927 1/23510230V, 460V184TC $642.02
GT1213A-P51765230V, 460V184TC $704.63
GT1216A-P7 1/21768230V, 460V213TC $943.39
GT13174153530230V, 460V215TC $992.50
GT12174153530230V, 460V215TC $1,043.43
GT1219A-P101762208-230V, 460V215TC $1,067.99
GT1218A-P103518230V, 460V215TC $1,107.27
GT1322151772230V, 460V254TC $1,313.60
GT1822151772200V254T $1,358.92
GT1325201768230V, 460V256TC $1,568.82
GT1022A-P151772230V, 460V254T $1,573.14
GT1825201768200V, 400V256T $1,615.48
GT1025A-P201768230V, 460V256T $1,837.67
GT1225A-P201768230V, 460V256TC $1,891.69
GT1223151182230V, 460V284TC $2,082.31
GT1028A-P251772230V, 460V284T $2,255.67
GT12127253555230V, 460V284TC $2,277.14
GT1031A-P301770230V, 460V286T $2,491.97
GT1228A-P251800230V, 460V284TC $2,589.57
GT1231A-P301770230V, 460V286TC $2,695.74
GT1011310880230V, 460V284T $3,029.04
GT1334401782230V, 460V324TC $3,035.84
GT1259401782230V, 460V324TSC $3,162.22
GT1034A-P401782230V, 460V324T $3,211.94
GT1234A-P401782230V, 460V324TC $3,472.19
GT1260501782230V, 460V326TSC $3,839.84
GT1037A-P501782230V, 460V326T $3,852.11
GT1237A-P501782230V, 460V326TC $4,149.81
GT1011720885230V, 460V324T $4,661.70
GT1235401188230V, 460V364TC $5,571.33
GT1238501188230V, 460V365TC $6,589.60
GT1243A-P751780230V, 460V365TC $7,097.20
GT12631001785230V, 460V405TSC $8,956.97
GT12641251790460V444TSC $11,730.07
GT101351501190460V445T $15,701.69
GT12692001790460V445TSC $16,560.77
GT1056A-P2001190460V449T $19,781.23
GT10702501790460V449T $20,348.25
GT10692501790460V449T $20,348.25
GT10733001790460V449T $23,177.68
GT10712501189460V449T $24,214.45
GT1073-P3001790460V449T $24,542.09
GT10793501789460V449T $27,812.72
GT10753001189460V449T $28,445.13
GT10854001788460V449T $33,325.99
GT10844001788460V449T $33,364.08
GT10773503580460V449TS $33,364.08

Description

The Globetrotter®motors are built tough to go the distance in many commercial and industrial applications around the world. The motors come in a variety of configurations and enclosures where variable speed, premium efficiency and reliability are required. The Globetrotter®motors were designed for applications such as cooling tower, HVAC, conveyors, packaging equipment, pumping, extruders, gear reducers, and machine tools.

Feature

  • Meets or exceeds NEMA Premium® efficiencies
  • NEMA Premium models are in compliance with EISA 2007
  • Inverter duty 10:1 variable torque and 10:1 constant torque, 1.0 SF
  • Division 2 / Zone 2 Class 1 (gases), Groups A, B, C, D
  • 1.15 Service factor on sinewave, 1.0 service factor on IGBT power
  • Meets temperature code T2B
  • Class F Insulation
  • Standard assembly F1, reversible to F2 assembly
  • UL recognized, CSA certified, CE mark
Electrical Data
Rated Motor Output Power
150 HP
112.5 kW
Rated Motor Speed
1190 RPM
Rated Motor Voltage
460V
Rated Motor Current
171 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
95.8
Nominal Power Factor
86
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:01
6
Constant Torque
2:01
30
General Data
Frame
445T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
51.08"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1/F2
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
ROLLER
NDE Bearing
BALL
Shaft Diameter
3.375"
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
MEXICO
Warranty
3-Year
