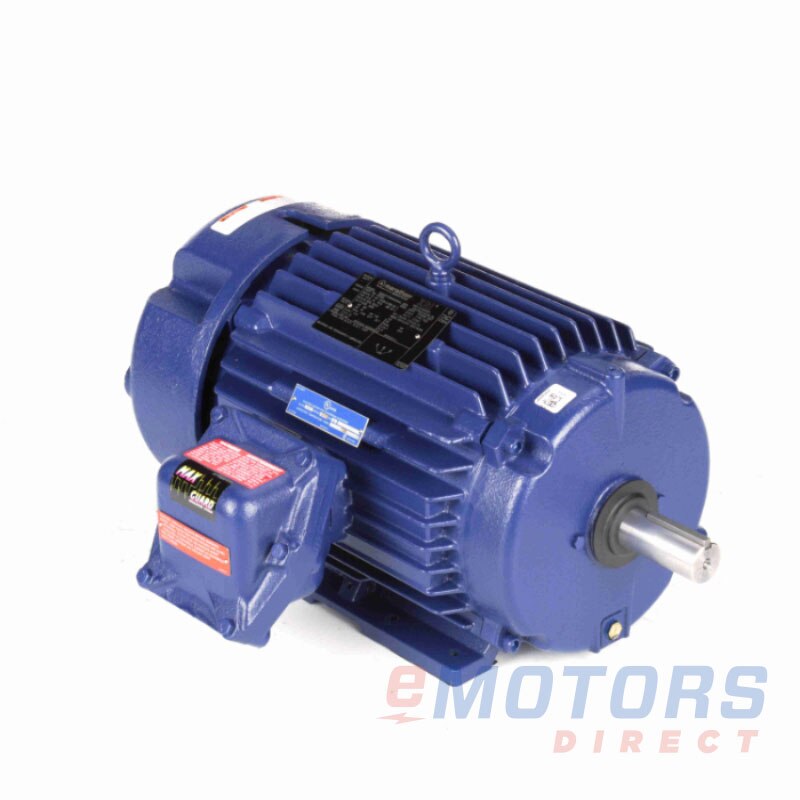

Marathon U026B

Marathon · Explosion Proof NEMA Premium Efficiency Blue Chip Series Hazardous Duty
10 HP 1765 215T TEFC-XP 575V Explosion Proof
Catalog Number: U026B
Model Number: 215TTGND16532
HP
10
RPM
1800
Voltage
575V
Frame
215T
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
Rigid

Product-line overview

Marathon’s line of explosion proof motors is designed to protect against contamination that could lead to an explosion and to internally contain an explosion if it were to happen. They are the right choice for your severe duty applications in hazardous locations across various industries.

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Marathon: Explosion Proof NEMA Premium Efficiency Blue Chip Series Hazardous Duty (82)

G651A1/31725115V, 208-230V56 $593.60
G654A1/21725115V, 230V56 $639.80
G846A11725575V56C $742.00
G841A11725230V, 460V56C $742.00
G663A11725230V, 460V56 $778.40
C320B11765230V, 460V143TC $936.39
C301B1 1/23515230V, 460V143TC $965.33
K2111A1 1/21725230V, 460V56H $982.80
C321B1 1/21755230V, 460V145TC $993.17
K2115A1 1/21725230V, 460V56C $1,036.00
C322B21755230V, 460V145TC $1,040.68
C302B23500230V, 460V145TC $1,095.82
C370B7 1/21765575V213TC $2,004.91
U043B51170230V, 460V215T $2,335.24
C306B103520230V, 460V215TC $2,418.78
U006B7 1/21765230V, 460V213T $2,479.93
U992B-P101765230V, 460V215T $2,555.28
E547A251800230V, 460V284T $3,974.33
C328B201775230V, 460V256TC $4,594.59
C307B153535230V, 460V254TC $4,803.16
C308B203537230V, 460V256TC $4,898.17
U032A501800575V326T $7,239.41
E570501800230V, 460V326T $7,239.41
E570-P501800230V, 460V326T $7,599.77
E569503600230V, 460V326TS $8,487.57
U033A601800575V364T $10,037.66
E573A601800230V, 460V364T $10,037.66
E568A401200230V, 460V364T $10,310.66
E571501200230V, 460V365T $10,627.34
U034A751800575V365T $11,651.09
E576A751800230V, 460V365T $11,651.09
E575753600230V, 460V365TS $15,954.67
U080A601800230V, 460V364TS $16,139.76
E577751200230V, 460V405T $17,988.52
U082A1001800230V, 460V405TS $19,046.12
U035A1001800575V405T $19,046.12
E5781003600230V, 460V405TS $19,393.37
E574601200230V, 460V404T $19,546.80
E5831251200460V445T $23,582.99
U084A1501800460V445TS $23,872.56
E582A1251800460V444T $28,590.00
E580A1001200230V, 460V444T $28,760.06
U073A1253600460V444TS $29,363.96
U038A2001800575V445T $29,991.02
E5882001800460V445T $29,991.02
U090A1501200460V445T $30,803.94
E595A2503575460V447TS, 449TS $40,275.67
E5912501800460V449T $40,353.59
E5963001785460V447T, 449T $44,688.79
H504A3501785460V447T, 449T $45,412.73

Feature

  • Meets NEMA Premium efficiencies
  • 10:1 variable torque, see Inverter Duty column for constant torque
  • MAX GUARD® Class F insulation
  • Blue Chip Series® motor quality, 100% cast iron construction for rigidity and reduced vibration
  • Internal and external surfaces treated with epoxy paint
  • 1.15 service factor on sinewave or 1.0 service factor on IBGT power
  • Precision balanced to .08”/sec.
  • Extended grease tubes
  • Normally closed thermostats (must be connected to control circuit)
  • Meets temperature code T3B
  • Shaft slinger
  • UL listed file no. E12044
  • CSA certified file no. LR47504
  • Three year warranty

What Makes Motors Explosion Proof

eMotors Direct’s stock of NEMA explosion proof electric motors are designed to be used for hazardous location applications. Their TEFC-XP (totally enclosed, fan cooled) and TENV-XP (totally enclosed, non-ventilated) enclosures keep internal explosions contained, while their flame paths allow for a safer escape for burning gases, helping to mitigate chances of an external ignition. Although many explosion proof motors are TEFC (totally enclosed fan cooled), not all TEFC motors are suitable for hazardous locations.

Our NEMA explosion proof motors are CSA approved for use in Classes I & II and Division I hazardous locations. One way to spot an explosion proof motor is the connection box. To control the damage when an internal explosion happens, the connection box will be visibly larger and likely have more bolts than a general-purpose motor.

Dust Ignition Proof Motors

If hazardous materials are present in the pulp and paper, mining or grain industries (class II, group E, F & G), motors specifically rated for explosive dusts are typically required. Dust may settle on the surface of the motor, increasing the surface temperature and limiting the cooling ability, potentially leading to overloading. Dustproof seals and bearings also prevent dust from entering the motor and causing an explosion.

Buy Explosion Proof Motors Canada

Choose from a plethora of frame sizes, output RPMs of 900, 1200, 1800, 2500 & 3600, and horsepower ratings from fractional to 350 HP and you’ll be on your way to keeping your hazardous worksite as safe as possible. Browse motors from your top trusted brands; Baldor, Marathon, WEG, Nidec, TECO-Westinghouse, Brook Crompton, and Leeson explosion proof motors.

Shop explosion proof electric motors online through our Canadian website today. With over 1700 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Industries:

  • Petrochemical
  • Oil and gas
  • Chemical
  • Grain handling
  • Mining
  • Pulp and paper
  • Waste management

Applications:

  • Pumps
  • Fans
  • Compressors
  • Blowers

Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
575V
Rated Motor Current
10.7 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
91.7
Nominal Power Factor
76.9
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
215T
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
220lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
22.63"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6208
NDE Bearing
6208
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UL
Country of Origin
-
Warranty
3-Year
