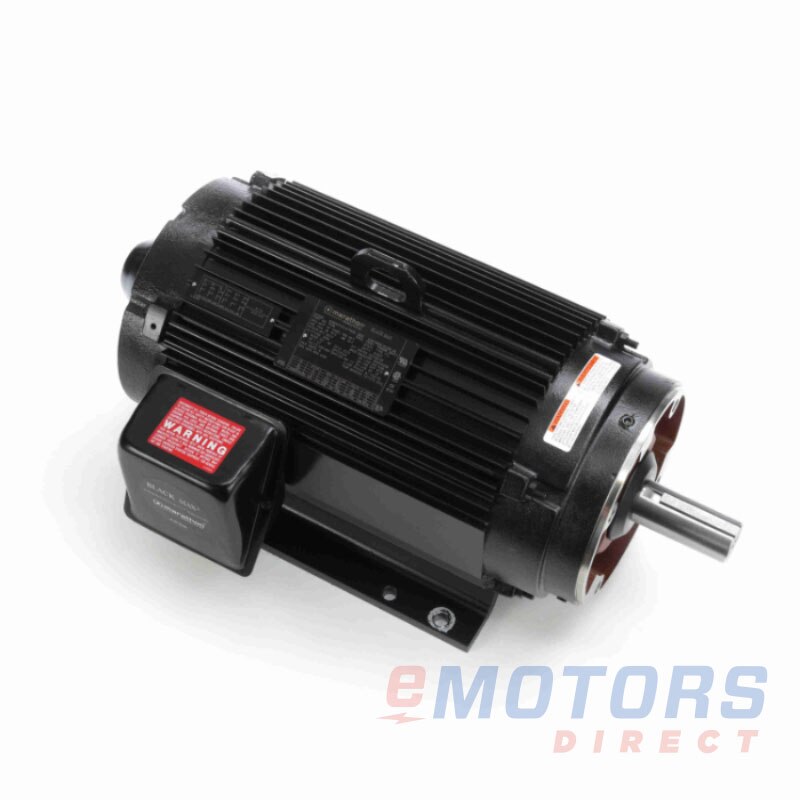

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Marathon Y546

Marathon · Inverter Duty Black Max Series
7 1/2 HP 1170 254TC TENV 230V|460V 1000:1 Turndown
Catalog Number: Y546
Model Number: 254THTL5776
HP
7 1/2
RPM
1200
Voltage
230V,460V
Frame
254TC
Phase
3
Enclosure
TENV
Material
Aluminum
Mounting
C-Face / Rigid

Product-line overview

Face those tough industrial applications with Marathon Motors’ 1000:1 turndown motors. These inverter duty motors can take on the contaminated environments of manufacturing and fabrication while providing the constant torque you need. Select your VFD-ready motor from a range of rating options.

Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Description

Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required. Typical uses include: material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.

Feature

  • MAX GUARD® Class F insulation system
  • Constant torque operation from 0 to base speed on vector drive
  • Constant horsepower operation up to twice base RPM
  • Continuous duty at 40ºC ambient
  • Optimized for operation with IGBT inverter (NEMA® Design A)
  • Normally closed thermostats (one per phase, Class F)
  • Removable rigid base, as noted
  • Ball bearings
  • Field reversible to F2 (except as noted)
  • Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake)
  • UL recognized, CSA certified, and CE mark
  • Three year warranty
Electrical Data
Rated Motor Output Power
7 1/2 HP
5.6 kW
Rated Motor Speed
1170 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
22.0/11.0 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
L
Nominal Efficiency
87.5
Nominal Power Factor
73
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
254TC
Enclosure
TENV
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
223lb
Double Drilled
No
Frame Material
Aluminum
C-Dimension
25.37"
NEMA Design
-
Degree of Protection (IP)
IP43
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6206
Shaft Diameter
1.625"
Shaft Length
3.75"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
3-Year
