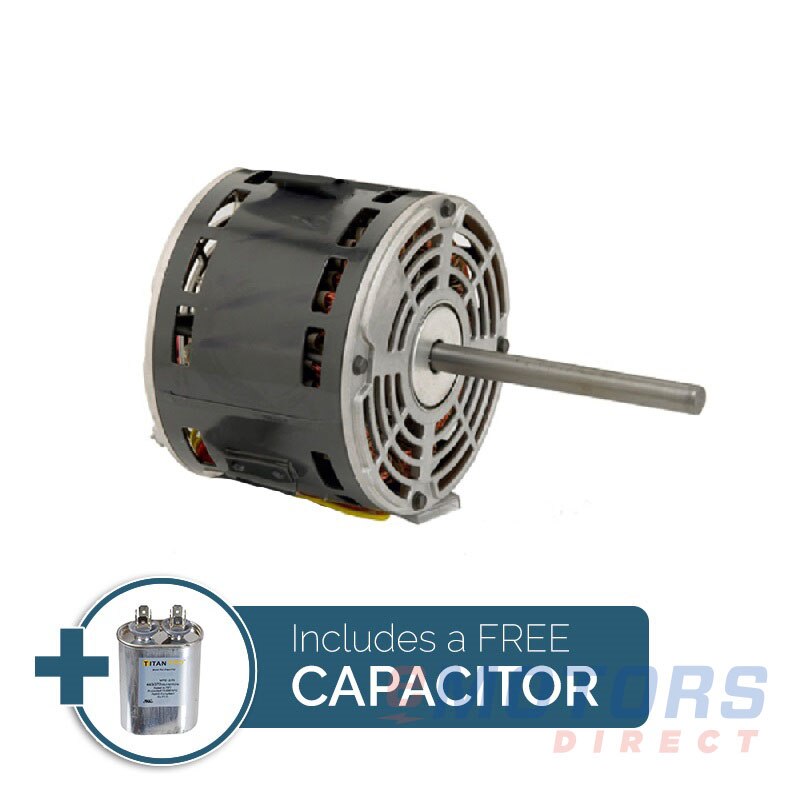

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Nidec CA3413

Nidec · OEM Replacement
1/2 HP 1075 48Y Fr OAO 115V Permanent Split Capacitor Capacitor Included: TOCF10
Catalog Number: CA3413
Model Number: K055KNJ0227011B
HP
1/2
RPM
1200
Voltage
115V
Frame
48Y
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Round Body

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

Ships next business day — In Stock (1)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (2)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
EMERSON5460, K055JEW9056011J, K55KNJ-0227, K55HAK-2067, K55JEW-9056, K55HXHAK-2067, K55KNJ-227
CARRIER 3S028, HC43AE117A, HC43AE115A, HC43AE116A, HC43AE115
GENERAL ELECTRIC 5KCP39LGR546, 5KCP39LGZ24, 5KCP39LGM301, 5KCP39LGR668, 5KCP39LGZ34
GENTEQ 3S028
ICP 1013341

Description

Replacement for Carrier 5KCP39GLZ024S, K55HXKNJ-0227

Feature

  • PSC
  • OAO
  • Automatic Reset Thermal Protector
  • Sleeve Bearing
  • 17" Leads
  • CCWLE
  • 10 MFD / 370V Capacitor Included
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
115V
Rated Motor Current
6.7 AMP
Phase
1
Poles
6
Locked Rotor Current
14.07
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
10
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
OAO
Mounting
Round Body
Number of Speeds
4 Speed
Approximate Weight
13lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
9.31"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CCWLE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SELF-ALIGN
NDE Bearing
SELF-ALIGN
Shaft Diameter
0.5"
Shaft Length
4"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
