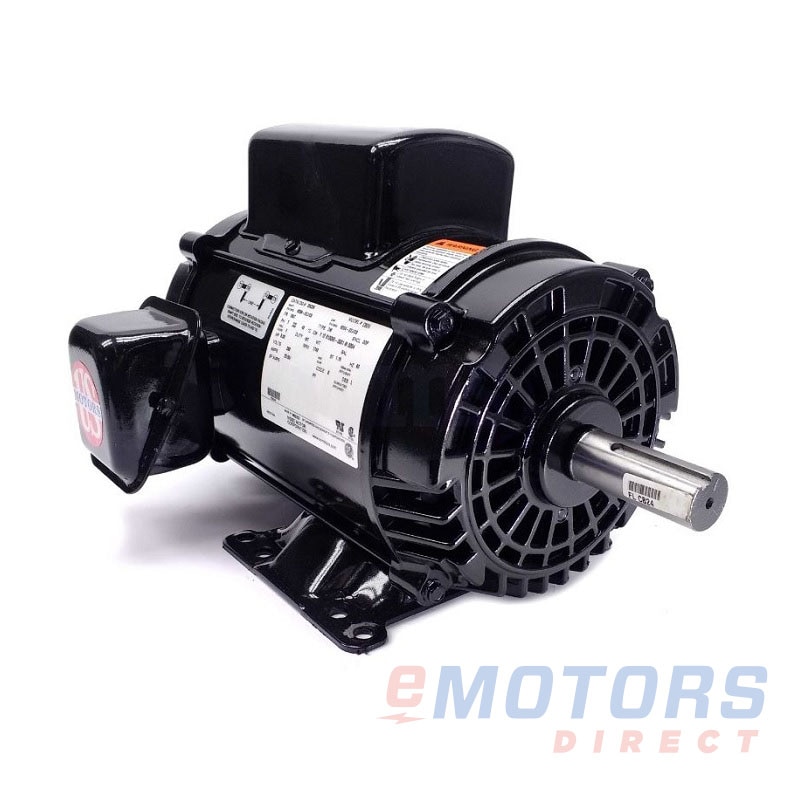

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Nidec D7C1K

Nidec · Special Application Air Compressor Single Phase ODP
7 1/2 HP 3490 184T Fr ODP 230V General Purpose
Catalog Number: D7C1K
Model Number: CB25
HP
7 1/2
RPM
3600
Voltage
230V
Frame
184T
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

Nidec’s farm duty motors are designed for applications like crop dryers, exhaust fans, auger drive systems, barn cleaners, manure pumps, and silo unloaders. Available in horsepower ratings as low as ¼ up to 30, in single or three-phase voltage, and in rolled steel or aluminum frame construction.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (1)

On Order

4 Expected 5/11/2026

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.


    Electrical Data
    Rated Motor Output Power
    7 1/2 HP
    5.6 kW
    Rated Motor Speed
    3490 RPM
    Rated Motor Voltage
    230V
    Rated Motor Current
    30 AMP
    Phase
    1
    Poles
    2
    Locked Rotor Current
    -
    Fl Current @ 208V
    -
    Service Factor
    1.15
    KVA Code
    G
    Nominal Efficiency
    -
    Nominal Power Factor
    -
    Leads (Qty, Size)
    -
    Frequency
    60 Hz
    Connection
    -
    Start Capacitor
    -
    Run Capacitor
    -
    MFD
    -
    VFD (S.F. 1.0)
    Ratio
    Hz
    Variable Torque
    -
    -
    Constant Torque
    -
    -
    General Data
    Frame
    184T
    Enclosure
    ODP
    Mounting
    Rigid
    Number of Speeds
    1 Speed
    Approximate Weight
    -
    Double Drilled
    No
    Frame Material
    Rolled Steel
    C-Dimension
    16.3"
    NEMA Design
    -
    Degree of Protection (IP)
    -
    Insulation Class
    F
    Rotation
    Reversible
    Duty
    Continuous
    Conduit Box Location
    -
    Removable Feet
    No
    Orientation
    Horizontal
    Ambient Temp
    40°C
    Full Load Temperature Rise
    Full Load Temp Rise
    -
    Temp Code
    -
    Mechanical Data
    DE Bearing
    6206-2ZJ/C3
    NDE Bearing
    6204-2ZJ/C3
    Shaft Diameter
    1.125"
    Shaft Length
    2.75"
    Grease Type
    -
    Greaseable
    No
    Hazardous Locations
    CSA Certified
    -
    Temp Code (Sine Wave Power)
    -
    Temp Code (VFD Power)
    -
    Additional Information
    Agency Approvals
    CSA, UL & CE
    Country of Origin
    -
    Warranty
    1-Year
