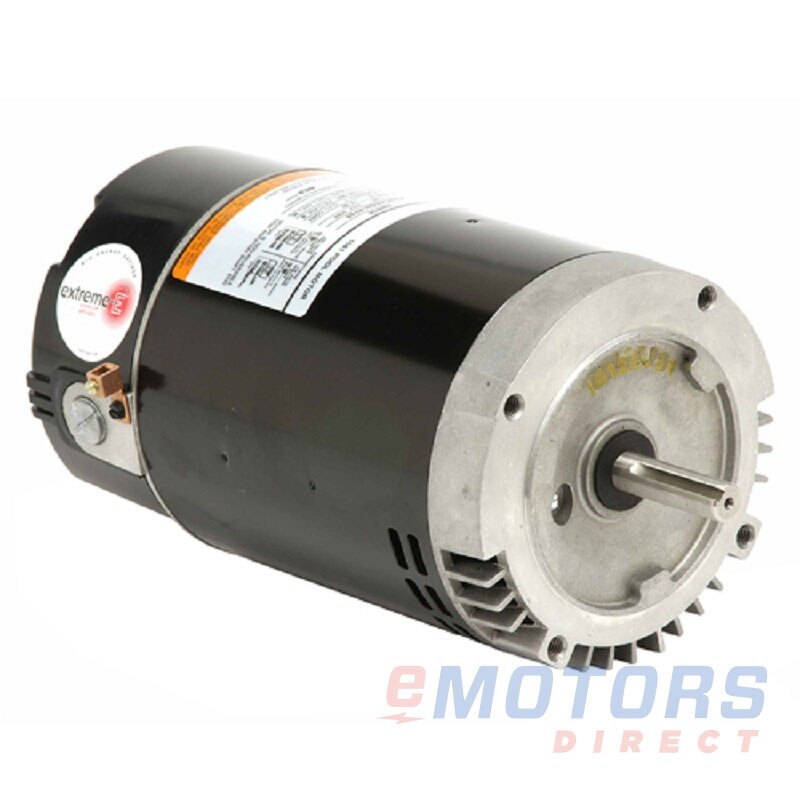

Nidec EB231

Nidec · C-Flange Pool & Spa Motors Switchless Design 6.5" Frame Diameter Category "S" & "J"
2 1/2 HP 3450 56J Fr ODP 230V General Purpose
Catalog Number: EB231
Model Number: K063EAY5228013J
HP
2 1/2
RPM
3600
Voltage
230V
Frame
56J
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

Available in open drip proof (ODP) or totally enclosed, fan cooled (TEFC) enclosures, HP ranging from 1 - 500, and a range of voltages & RPM’s. Choose Nidec General Purpose motors for dirty, industrial environments where the reliability and around-the-clock availability of your equipment is crucial.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (2)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Nidec: C-Flange Pool & Spa Motors Switchless Design 6.5" Frame Diameter Category "S" & "J" (1)

EB2312 1/23450230V56J $713.01
Electrical Data
Rated Motor Output Power
2 1/2 HP
1.86 kW
Rated Motor Speed
3450 RPM
Rated Motor Voltage
230V
Rated Motor Current
10.5 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
E
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
35
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56J
Enclosure
ODP
Mounting
C-Face / Round Body
Number of Speeds
1 Speed
Approximate Weight
30lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.83"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CWLE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
50°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.625"
Shaft Length
2.44"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
