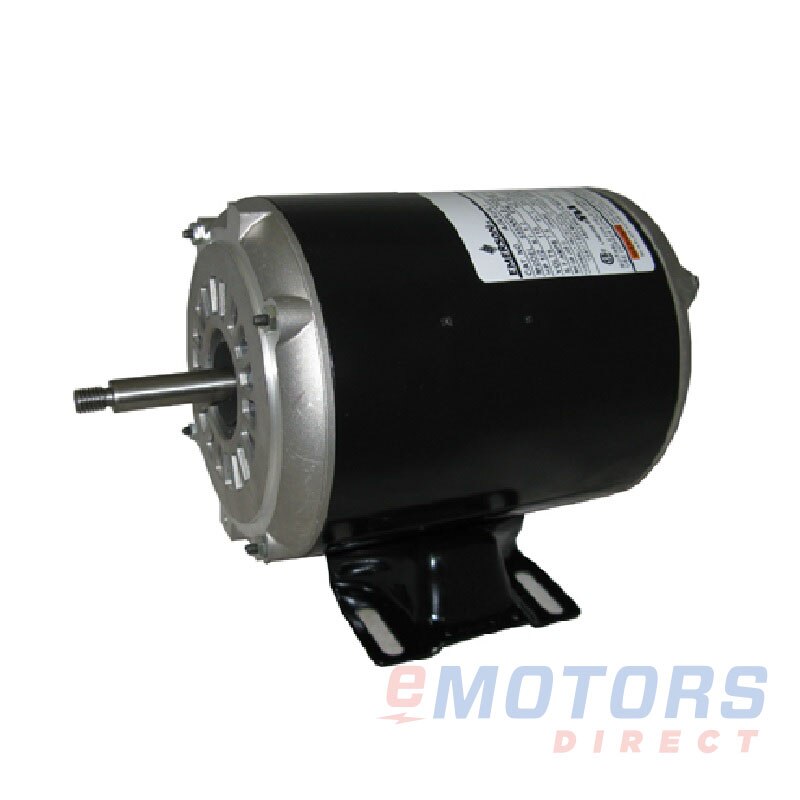

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Nidec SPH20FL2S

Nidec · Thru-Bolt Pool & Spa Motors 5.5" Frame Diameter
2 HP 3450|1725 48Y Fr ODP 230V General Purpose
Catalog Number: SPH20FL2S
Model Number: T055BRF1046013J
HP
2
RPM
1800,3600
Voltage
230V
Frame
48Y
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid / Thru Bolt

Product-line overview

Available in open drip proof (ODP) or totally enclosed, fan cooled (TEFC) enclosures, HP ranging from 1 - 500, and a range of voltages & RPM’s. Choose Nidec General Purpose motors for dirty, industrial environments where the reliability and around-the-clock availability of your equipment is crucial.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (2)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Nidec: Thru-Bolt Pool & Spa Motors 5.5" Frame Diameter (1)

SPH20FL2S23450|1725230V48Y $486.34
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
3450, 1725 RPM
Rated Motor Voltage
230V
Rated Motor Current
10.0/3.4 AMP
Phase
1
Poles
2|4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
A
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
30
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
ODP
Mounting
Rigid / Thru Bolt
Number of Speeds
1 Speed
Approximate Weight
30lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.983"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
CWLE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
