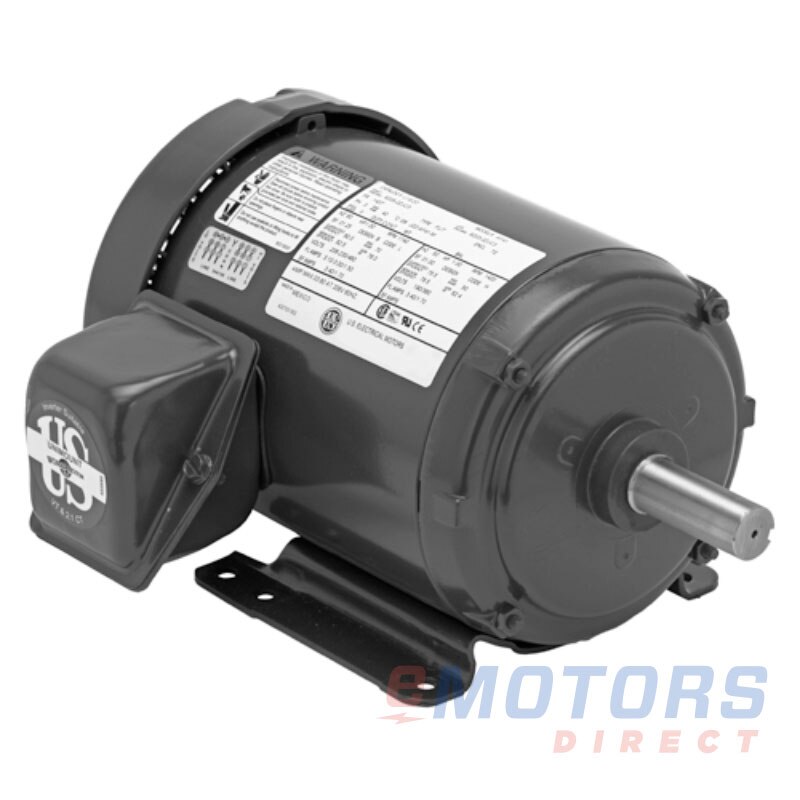

Nidec U2P2GH

Nidec · General Purpose Three Phase TEFC
2 HP 1750 56H Fr TEFC 575V General Purpose
Catalog Number: U2P2GH
Model Number: FM15
HP
2
RPM
1800
Voltage
575V
Frame
56H
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

Available in open drip proof (ODP) or totally enclosed, fan cooled (TEFC) enclosures, HP ranging from 1 - 500, and a range of voltages & RPM’s. Choose Nidec General Purpose motors for dirty, industrial environments where the reliability and around-the-clock availability of your equipment is crucial.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (1)

Important Links

Save up to CAD$13.00 per year
Switching from a Standard Efficient to a Premium Efficient motor

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Nidec: General Purpose Three Phase TEFC (2)

U32P1GH1 1/23515575V56H $535.86
U2P2GH21750575V56H $560.67

Description

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

Feature

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
575V
Rated Motor Current
2.3 AMP
Phase
3
Poles
4
Locked Rotor Current
20.4
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
M
Nominal Efficiency
86.5
Nominal Power Factor
76.7
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56H
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.6"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80°C RISE/RES@1.00SF
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203-2Z-J/C3
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & CE
Country of Origin
-
Warranty
1-Year
