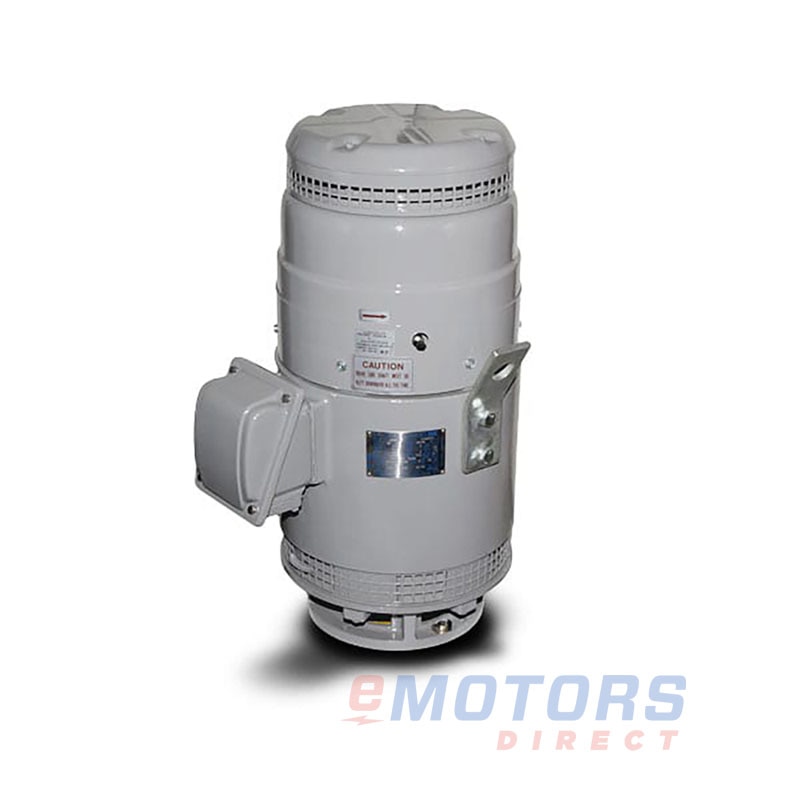

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New Overstock

TECO-Westinghouse VCN02065 Overstock

TECO Westinghouse
20HP 1200 286TP WPI 575V Vertical Shaft Motors
Catalog Number: VCN02065 Overstock
HP
20
RPM
1200
Voltage
575V
Frame
286TP
Phase
3
Enclosure
WPI
Material
Cast Iron
Mounting
P-Base
Final Sale Product

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Cambridge, ON: Out of Stock
Lachine, QC: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
20 HP
15 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
575V
Rated Motor Current
19.89 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
92.4
Nominal Power Factor
81.5
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
DELTA
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
286TP
Enclosure
WPI
Mounting
P-Base
Number of Speeds
-
Approximate Weight
456
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
28.25
NEMA Design
B
Degree of Protection (IP)
IP22
Insulation Class
F
Rotation
CCWLE
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6311ZZC3
NDE Bearing
7312B
Shaft Diameter
1.378
Shaft Length
-
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
1-Year
