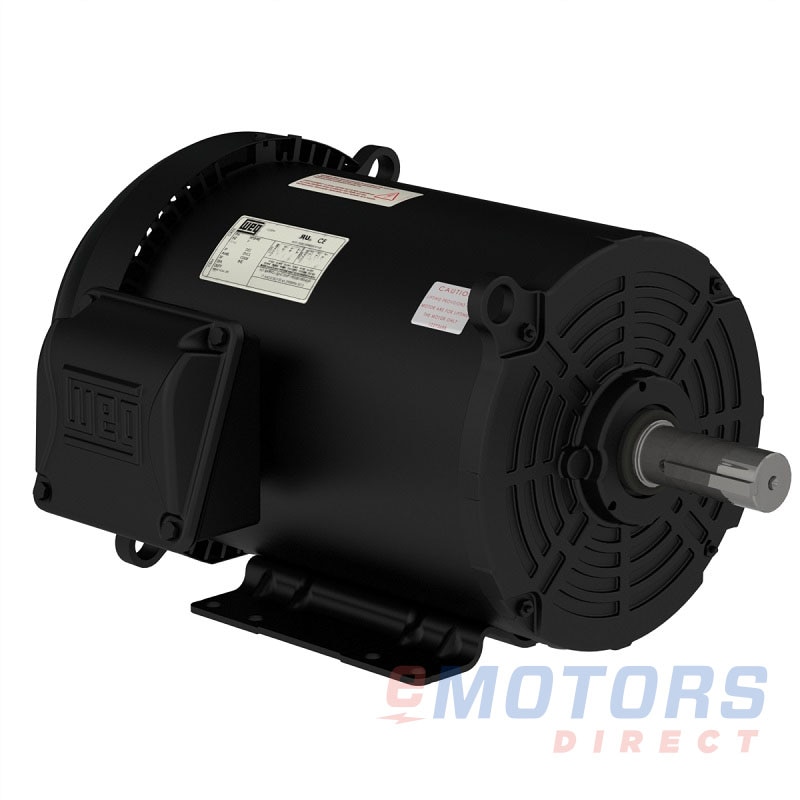

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

WEG HT025402NPW01

WEG · W01 NEMA Premium TEFC 140 and Up Frame
25 HP 3600 256T TEFC 208-230V,460V General Purpose AC Motors
Catalog Number: HT025402NPW01
HP
25
RPM
3600
Voltage
208-230V, 460V
Frame
256T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid
Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

WEG: W01 NEMA Premium TEFC 140 and Up Frame (140)

HT000204NPW0111800200V, 400V143T, 145T $409.68
HT001204NPW011 1/21800200V, 400V143T, 145T $457.01
CT000404NPW01V11800208-230V, 460V143TC, 145TC $459.97
HT002204NPW0121800200V, 400V143T, 145T $476.24
TF000106W01145T11200115V, 230V143T, 145T $505.82
CT001502NPW01V1 1/23600575V143TC, 145TC $523.57
CT002502NPW01V23600575V143TC, 145TC $572.37
HT003204NPW0131800200V, 400V182T, 184T $604.91
CT003404NPW01V31800208-230V, 460V182TC, 184TC $675.90
CT003504NPW01V31765575V182TC, 184TC $675.90
CT003502NPW01V33515575V182TC, 184TC $680.34
CT003402NPW01V33515230V, 460V182TC, 184TC $680.34
HT005204NPW0151800200V, 400V182T, 184T $687.74
CT005502NPW01V53600575V182TC, 184TC $754.29
CT005504NPW01V51800575V182TC, 184TC $777.95
CT005404NPW01V51800208-230V, 460V182TC, 184TC $777.95
CT007502NPW01184TV7 1/23600575V182TC, 184TC $899.23
TS003102SW0133600208-230V182T, 184T $903.67
HT007204NPW017 1/21800200V, 400V213T, 215T $951.00
TS003104W0131800208-230V182T, 184T $992.41
CT007504NPW01V7 1/21800575V213TC, 215TC $1,032.34
CT007404NPW01V7 1/21800208-230V, 460V213TC, 215TC $1,032.34
TS005102W0153600208-230V182T, 184T $1,161.02
HT010204NPW01101760208V213T, 215T $1,192.07
CT010502NPW01V103600575V213TC, 215TC $1,211.30
CT010402NPW01V103600208-230V, 460V213TC, 215TC $1,211.30
TS005104W0151800208-230V182T, 184T $1,226.09
TS007102W017 1/23600208-230V182T, 184T $1,339.97
TS007102SW017 1/23600208-230V213T, 215T $1,442.03
TS007104W017 1/21800208-230V213T, 215T $1,527.81
TS010104W01101800208-230V213T, 215T $1,662.40
HT015204NPW01151800200V, 400V254T, 256T $1,671.27
TS010102W01103600208-230V213T, 215T $1,762.97
CT015502NPW01V153600575V254TC, 256TC $1,767.41
HT020204NPW01201800200V, 400V254T, 256T $2,004.05
CT020502NPW01V203600575V254TC, 256TC $2,184.48
CT007506NPW017 1/21175575V254TC $2,496.96
CT007406NPW017 1/21175208-230V, 460V254TC $2,496.96
HT020502NPW01203515575V256T $2,592.43
HT020402NPW01203515208-230V, 460V256T $2,592.43
CT020504NPW01201765575V256TC $2,645.68
CT020404NPW01201765208-230V, 460V256TC $2,645.68
CT010506NPW01101175575V256TC $2,704.43
CT010406NPW01101175208-230V, 460V256TC $2,704.43
CT020502NPW01203515575V256TC $2,711.77
CT020402NPW01203515208-230V, 460V256TC $2,711.77
HT025502NPW01253530575V256T $3,086.32
HT025402NPW01253530208-230V, 460V256T $3,086.32
CT025502NPW01253530575V256TC $3,224.02
CT025402NPW01253530208-230V, 460V256TC $3,224.02

Description

Presenting a whole new electrical and mechanical design, the new platform of Rolled Steel motors is made to run cooler, last longer and to be easier to install and maintain. The Premium Efficiency motors meet or exceed all NEMA Premium requirements for energy efficiency. These TEFC motors are designed for operating in environments of dirt, dust, and moisture, on indoor and outdoor applications.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4 and 6 pole, 60Hz, 1.15 Service Factor
  • Voltage: 230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
  • V’Ring sealing / Ball bearings
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “B”
  • Continuous duty (S1)
  • 104ºF (40ºC) ambient temperature
  • Altitude: 3300 ft (1000m)
  • Double Gasketed terminal box
  • All frames have dual mounting
Electrical Data
Rated Motor Output Power
25 HP
18.5 kW
Rated Motor Speed
3530 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
57/28.5 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
62.99
Service Factor
1.15
KVA Code
-
Nominal Efficiency
91.7
Nominal Power Factor
.89
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
10:1
6
General Data
Frame
256T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
23.346"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6309-ZZ
NDE Bearing
6208-ZZ
Shaft Diameter
1.625"
Shaft Length
4"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cULus
Country of Origin
BRAZIL
Warranty
2-Year
