Product images are for reference only. Please review product specifications for the most accurate and detailed information.

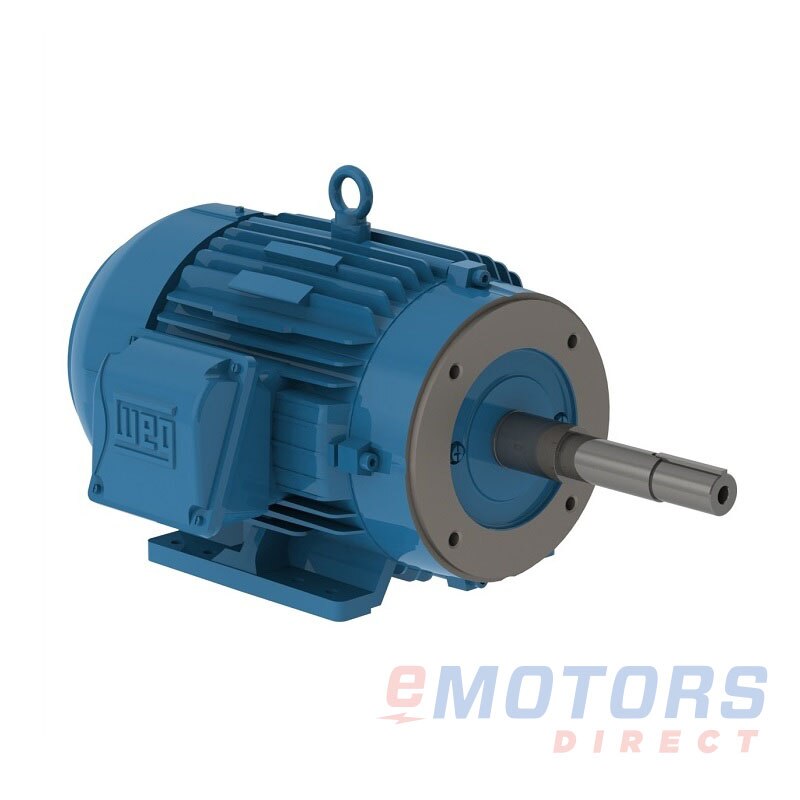

WEG JP001506NPW22

WEG · W22 NEMA Premium JM & JP Pump
1 1/2 HP 1200 182JP TEFC 575V Pump Motors
Catalog Number: JP001506NPW22
HP
1 1/2
RPM
1200
Voltage
575V
Frame
182JP
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

WEG: W22 NEMA Premium JM & JP Pump (176)

JP000504NPW2211770575V143JP $811.29
JP000502NPW2213480575V143JP $844.56
JP001504NPW221 1/21760575V145JP $877.82
JP001502NPW221 1/23455575V145JP $877.82
JP000506NPW2211150575V145JP $908.19
JP002504NPW2221755575V145JP $918.31
JP002502NPW2223450575V145JP $918.31
JP003502NPW22145JP33450575V145JP $1,101.97
JP003504NPW2231760575V182JP, 184JP $1,182.96
JP003502NPW2233500575V182JP, 184JP $1,265.39
JP001506NPW221 1/21160575V182JP $1,279.85
JP005502NPW2253490575V182JP, 184JP $1,308.77
JP005504NPW2251750575V184JP $1,379.63
JP002506NPW2221160575V184JP $1,525.69
JP007504NPW227 1/21755575V213JP $1,729.60
JP007502NPW22184JP7 1/23470575V184JP $1,783.11
JP003506NPW2231170575V213JP $1,864.10
JP010504NPW22101755575V215JP $2,027.51
JP007502NPW227 1/23510575V213JP $2,027.51
JP010502NPW22103510575V215JP $2,130.19
JP005506NPW2251165575V215JP $2,257.45
JP015502NPW22215JP153490575V215JP $2,979.08
JP015504NPW22151765575V254JP $3,112.13
JP007506NPW227 1/21175575V254JP $3,266.87
JP015502NPW22153520575V254JP $3,550.31
JP020504NPW22201760575V256JP $3,697.82
JP010506NPW22101170575V256JP $3,713.73
JP020502NPW22203520575V256JP $4,057.91
JP025504NPW22251760575V284JP $4,519.24
JP025502NPW22256JP253530575V256JP $4,715.91
JP030504NPW22301760575V286JP $5,022.50
JP025502NPW22253530575V256JP $5,236.53
JP030502NPW22303530575V286JP $5,573.49
JP015506NPW22151175575V284JP $5,616.87
JP040504NPW22401770575V324JP $7,003.73
JP040502NPW22286JP403550575V284JP $7,047.12
JM050504NPW22501775575V326JM $7,642.93
JP050504NPW22501770575V326JP $7,794.78
JP040502NPW22403550575V324JP $7,924.93
JP050502NPW22503555575V326JP $9,000.87
JM060502NPW22326JM603550575V326JM $9,741.31
JP060502NPW22326JP603550575V326JP $9,936.54
JM060504NPW22601770575V364JM $11,909.09
JP060504NPW22601770575V364JP $12,146.26
JM075504NPW22751770575V365JM $13,523.00
JP075504NPW22751770575V365JP $13,793.44
JM060502NPW22603550575V364JM $13,836.82
JP060502NPW22603550575V364JP $14,114.48
JM075502NPW22753550575V365JM $14,779.71
JP075502NPW22753550575V365JP $15,076.18

Description

Especially developed for applications on pumps with direct coupling, the W22 JM/JP (mechanical seal/gasket) motors feature frame with hermetic enclosure that allow the motor to operate in humid or dusty environments in industrial or commercial applications. They complie with NEMA Premium efficiency level.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4 and 6 pole, 60Hz, Service Factor 1.25
  • Voltage: 230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
  • Die cast aluminum squirrel cage rotor
  • V’Ring sealing
  • Ball bearings
  • 1045 heat treated and stress relieved carbon steel shaft
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • 575V rated motors have Spike Resistant WISE wire.
    • Protects against IGBT voltage spikes up to 2400V.
    • Exceeds NEMA MG1 Part 31.4.4.2
  • Insulation System:
    • Dip and Bake Insulation system with class “H” resin up to frame 324/6JM(JP)
  • NEMA design “B”
  • Continuous duty (S1)
  • 104ºF (40ºC) ambient temperature
  • Altitude: 3300 ft (1000m)
  • Double Gasketed terminal box
  • Paint: Synthetic enamel alkyd resin base
  • Paint Plan: 207A - 143/5JM(JP) to 213/5JM(JP)
  • Color: RAL 5009 - Blue
  • Fitted with closed rubber drain breathers
Electrical Data
Rated Motor Output Power
1 1/2 HP
1.1 kW
Rated Motor Speed
1160 RPM
Rated Motor Voltage
575V
Rated Motor Current
2.03 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
-
Nominal Efficiency
87.5
Nominal Power Factor
62
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
20:1
3
General Data
Frame
182JP
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
70.3lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
20.395"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6307-ZZ
NDE Bearing
6206-ZZ
Shaft Diameter
0.875"
Shaft Length
8.13"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
