WEG XC000104

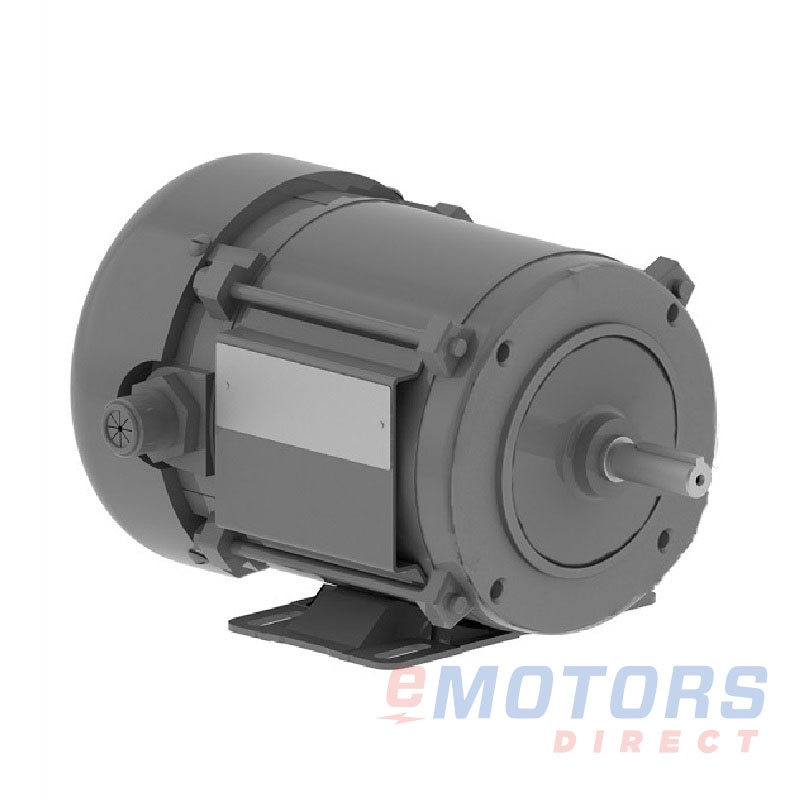

WEG · NEMA Premium Explosion Proof 56 Frame
1 HP 1800 56C TEFC-XP 115V,208-230V Explosion Proof Motors
Catalog Number: XC000104
HP
1
RPM
1800
Voltage
115V, 208-230V
Frame
56C
Phase
1
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
C-Face / Rigid
CAD$1,026.70
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

North York, ON: In Stock
Edmonton, AB: In Stock
Abbotsford, BC: Out of Stock
Pointe-Claire, QC: Out of Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

WEG Explosion Proof NEMA 56 Motors are designed for operation in hazardous locations containing flammable liquids, explosive gases and dust.

Feature

  • Single-phase, 4 poles, 60HZ, Service Factor 1.15
  • Voltage:115/208-230V
  • Totally Enclosed Fan Cooled (IP44)
  • Continuous Duty (S1)
  • Overload protection:Automatic Thermostats
  • 104°F (40°C) ambient temperature
  • Insulation class ‘B’ (Δt 80°C)
  • Terminal box included

What Makes Motors Explosion Proof

eMotors Direct’s stock of NEMA explosion proof electric motors are designed to be used for hazardous location applications. Their TEFC-XP (totally enclosed, fan cooled) and TENV-XP (totally enclosed, non-ventilated) enclosures keep internal explosions contained, while their flame paths allow for a safer escape for burning gases, helping to mitigate chances of an external ignition. Although many explosion proof motors are TEFC (totally enclosed fan cooled), not all TEFC motors are suitable for hazardous locations.

Our NEMA explosion proof motors are CSA approved for use in Classes I & II and Division I hazardous locations. One way to spot an explosion proof motor is the connection box. To control the damage when an internal explosion happens, the connection box will be visibly larger and likely have more bolts than a general-purpose motor.

Dust Ignition Proof Motors

If hazardous materials are present in the pulp and paper, mining or grain industries (class II, group E, F & G), motors specifically rated for explosive dusts are typically required. Dust may settle on the surface of the motor, increasing the surface temperature and limiting the cooling ability, potentially leading to overloading. Dustproof seals and bearings also prevent dust from entering the motor and causing an explosion.

Buy Explosion Proof Motors Canada

Choose from a plethora of frame sizes, output RPMs of 900, 1200, 1800, 2500 & 3600, and horsepower ratings from fractional to 350 HP and you’ll be on your way to keeping your hazardous worksite as safe as possible. Browse motors from your top trusted brands; Baldor, Marathon, WEG, Nidec, TECO-Westinghouse, Brook Crompton, and Leeson explosion proof motors.

Shop explosion proof electric motors online through our Canadian website today. With over 1700 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Industries:

  • Petrochemical
  • Oil and gas
  • Chemical
  • Grain handling
  • Mining
  • Pulp and paper
  • Waste management

Applications:

  • Pumps
  • Fans
  • Compressors
  • Blowers

Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1 HP
0.75 kW
Rated Motor Speed
1740 RPM
Rated Motor Voltage
115V, 208-230V
Rated Motor Current
11.4/5.7 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
6.3
Service Factor
1.15
KVA Code
-
Nominal Efficiency
74.9
Nominal Power Factor
75
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC-XP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
43.7lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
13.385"
NEMA Design
-
Degree of Protection (IP)
IP44
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3C
Mechanical Data
DE Bearing
6203-ZZ
NDE Bearing
6203-ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
T3C
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
