Baldor 342

Baldor · Polishing Lathes
1/4 HP 3600|1500 230V Polishing Lathes
Catalog Number: 342
Spec Number: L34-25W25
HP
1/4
RPM
1800, 3600
Voltage
220-240V
Frame
-
Phase
1
Enclosure
TENV
Material
Cast Iron
Mounting
-

Overview

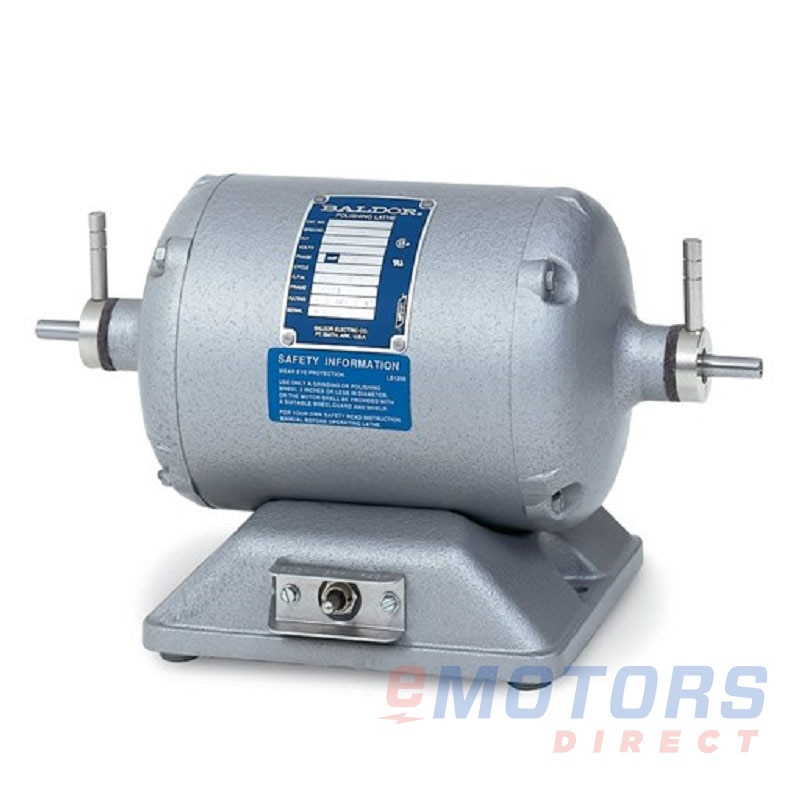

Baldor’s polishing lathes have features preferred by dentists, dental lab technicians, jewelers, lapidary, and others requiring precise trouble free polishing. The ball bearings in all lathes are lubricated for life and sealed to prevent entry of dust and debris.

CAD$905.38
Contact us for delivery dates

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Returns & Refund Policy

Baldor: Polishing Lathes (8)

3421/43600|1500220-240V  $905.38
3401/43600|1800115V  $905.38
LPL501/23600115V  $965.66
353T1/43600|1800115V  $992.35
359T1/23600115V  $994.34
380T1/33600|1800115V  $1,104.04
LPL753/43600115V, 230V  $1,179.16
380WCT1/33600|1800115V  $2,540.19

Features

  • Dual Speed
  • Factory connected for 220-240 volts, power cord without plug
  • Base mounted on-off switch
  • 8-foot cord with plug
  • Rubber feet and heavy construction to minimize vibration
  • Provisions for mounting to a laboratory bench are provided.

    • eMotors Direct’s stock of grinders are for use in various applications throughout numerous industries. These industrial quality motorized grinders spin disk attachments, like abrasive or polishing wheels, at high speeds to grind away or polish the surface of the workpiece. Sharpen tools at the mine, polish bolt threads at the shop, cut the perfect precious stone, or put the finishing touches on a pair of dentures.

    Our grinders category covers industrial grinders for industries like mining, automotive, machine tooling, woodworking, jewelry, lapidary, dental, and metal processing. Shop both standing and bench grinder motors that run on either single-phase or three-phase power. Choose form wheel diameters of 6 to 14 inches, horsepower ratings from fractional to 7.5 HP, and a variety of voltage and RPM options. Manufactured with cast iron, these grinders feature a cast iron tool rests and cast iron or cast aluminum wheel guards.

    Shop Baldor grinders online through our Canadian website today. With 80 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

    Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1/4 HP
Rated Motor Speed
3600, 1500 RPM
Rated Motor Voltage
220-240V
Rated Motor Current
1.5/1.2 AMP
Phase
1
Poles
2|4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
9#18
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
-
Enclosure
TENV
Mounting
-
Number of Speeds
-
Approximate Weight
31lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
B
Rotation
-
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.375"
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
-
