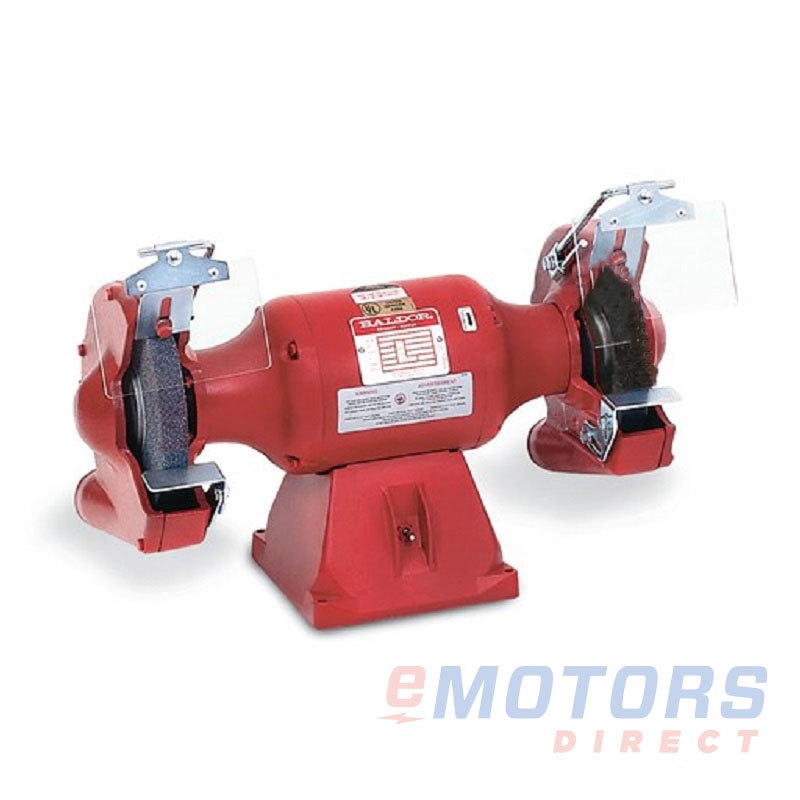

Baldor 862RE

Baldor · Big Red Grinders
3/4 HP 3600 115V|230V Big Red Grinders Wheel Size 8”x1”x3/4”
Catalog Number: 862RE
Alternative Number: 8250W
Spec Number: G8-360-0070
HP
3/4
RPM
3600
Voltage
115V, 230V
Frame
-
Phase
1
Enclosure
TENV
Material
Cast Iron
Mounting
-

Product-line overview

Big red grinders are available with 6", 7" or 8" wheels, equipped with base mounted on/ off switch and 8 foot cord with plug. Rubber mounting feet help minimize vibration. Models ending in "E" have exhaust type wheel guards.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Features

  • Wheel Size: 8"x1"x3/4"
  • Base mounted on/off switch
  • 8 foot cord with plug
  • Rubber mounting feet help minimize vibration
  • Models ending in "E" have exhaust type wheel guards
  • Stamp steel tool rests
  • Factory connected for 115 volts, power cord supplied

Supplied With

  • 1 x 36 grit wheel
  • 1 x 60 grit wheel
  • 2 x eyeshield
Electrical Data
Rated Motor Output Power
3/4 HP
Rated Motor Speed
3600 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
8.6 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
5#18
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
-
Enclosure
TENV
Mounting
-
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
B
Rotation
-
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.75"
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UL
Country of Origin
USA
Warranty
-
