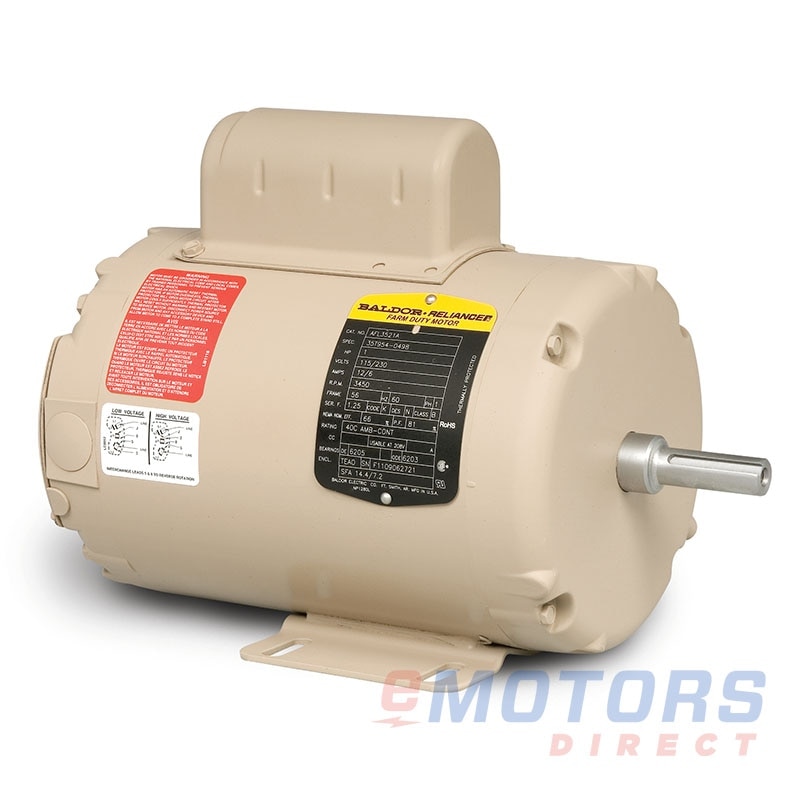

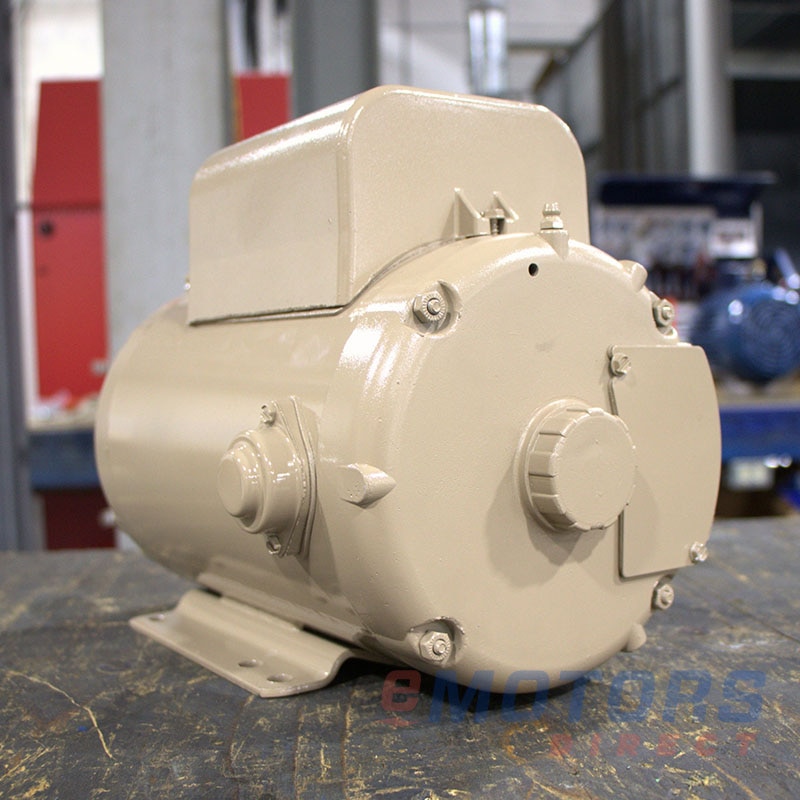

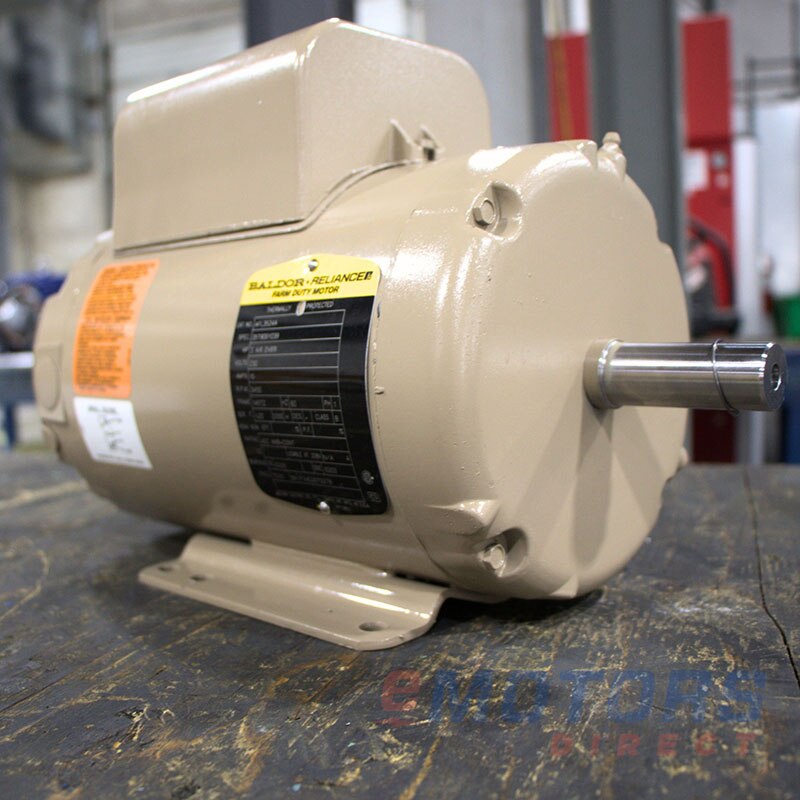

Baldor AFL3524A

Baldor · Aeration fan, single phase, TEAO, foot mounted
3 HP 3450 145TZ TEAO 230V Farm Duty
Catalog Number: AFL3524A
HP
3
RPM
3600
Voltage
230V
Frame
145TZ
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor aeration fan motor is designed for dependable performance in agricultural ventilation systems. This single-phase, foot-mounted motor features a Totally Enclosed Air Over (TEAO) enclosure, making it ideal for applications where airflow from the fan provides necessary cooling. It includes a 1/4-20 tapped and keyed shaft for secure and precise mounting, along with a terminal panel that simplifies electrical connections during installation. Automatic thermal overload protection is built in to help guard against overheating, ensuring safe and reliable operation. Additionally, the motor is equipped with double-shielded, permanently lubricated ball bearings, offering maintenance-free durability. This motor is a solid choice for aeration fans, grain storage ventilation, exhaust fans, and other air handling applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks
Edmonton [eMotors #2], AB: Out of Stock
Saint-Hubert, QC: In Stock
Edmonton, AB: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Aeration fan, single phase, TEAO, foot mounted

Features

  • Shaft includes a 1/4-20 tapped hole and keyway for secure, easy mounting
  • Terminal panel simplifies electrical connections for quicker setup
  • Built-in automatic thermal overload protection helps prevent overheating
  • Permanently lubricated, double-shielded ball bearings ensure long-lasting, maintenance-free performance

Applications

  • Designed for air handling systems
  • Ideal for grain storage aeration fans
  • Suitable for use in exhaust fan setups
Electrical Data
Rated Motor Output Power
3 HP
Rated Motor Speed
3600 RPM
Rated Motor Voltage
230V
Rated Motor Current
15 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
H
Nominal Efficiency
78
Nominal Power Factor
-
Leads (Qty, Size)
2
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145TZ
Enclosure
TEAO
Mounting
Rigid
Number of Speeds
-
Approximate Weight
52lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.61"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
2-Year
