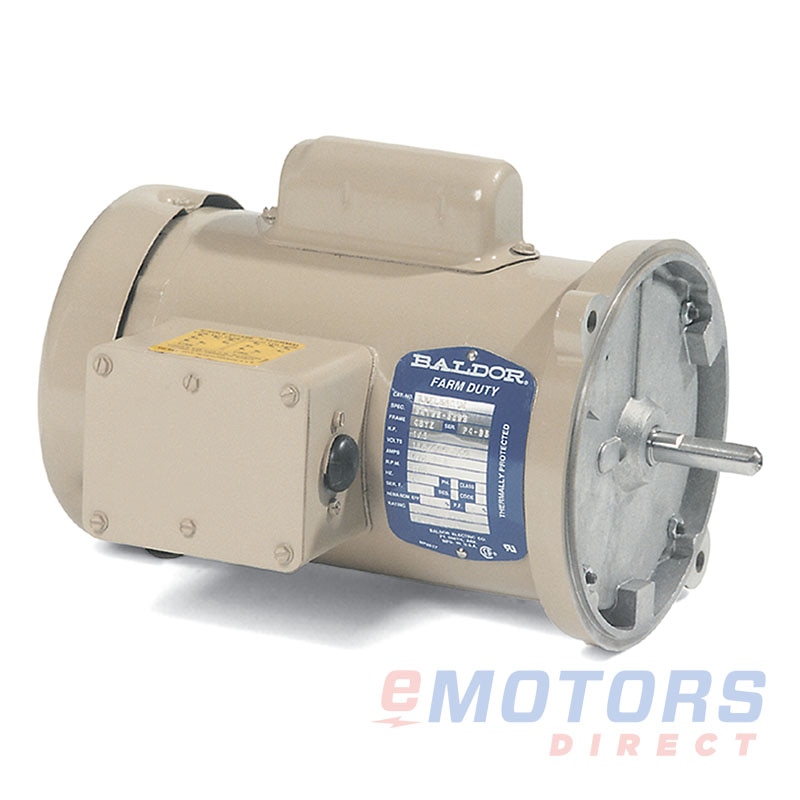

Baldor ANFL3504M

Baldor · Auger drive, single phase, TEFC, flange mounted
1/2 HP 1725 48YZ TEFC 115V|230V Farm Duty
Catalog Number: ANFL3504M
HP
1/2
RPM
1800
Voltage
115V,230V
Frame
48YZ
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Auger Flange / Round Body

Product-line overview

The Baldor auger drive motor, designed for single-phase operation and flange-mounted installation, delivers reliable performance for demanding agricultural applications. Featuring a Totally Enclosed Fan Cooled (TEFC) design, this motor is well-suited for environments that require protection from dust and moisture. It is equipped with a mechanically protected centrifugal switch to prevent over-speeding, ensuring safe operation. The motor also includes an extended opposite drive end (DE) shaft, enabling manual jogging functionality. For added safety, it features gasketed manual reset thermal overload protection to prevent overheating. With lifetime lubricated, double-shielded ball bearings, this motor offers long-lasting, low-maintenance operation. The NEMA 56N flange ensures compatibility with industry-standard drive and gear connections, making it an ideal choice for poultry feed auger drive systems.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Saint-Hubert, QC: In Stock
Factory Ordered: 2-3 weeks
Milton, ON: In Stock
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Auger drive, single phase, TEFC, flange mounted

Features

  • Centrifugal switch with mechanical protection against over-speeding
  • Extended shaft on the opposite drive end (DE) for manual jog functionality
  • Gasketed manual reset thermal overload protection for added safety
  • Maintenance-free, lifetime lubricated double-shielded ball bearings
  • NEMA 56N flange ensures compatibility with industry-standard drive and gear connections

Applications

  • Ideal for poultry feed auger drive systems
Electrical Data
Rated Motor Output Power
1/2 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
3.7 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
J
Nominal Efficiency
68
Nominal Power Factor
66
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48YZ
Enclosure
TEFC
Mounting
Auger Flange / Round Body
Number of Speeds
-
Approximate Weight
28lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.44"
NEMA Design
N
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
2-Year
