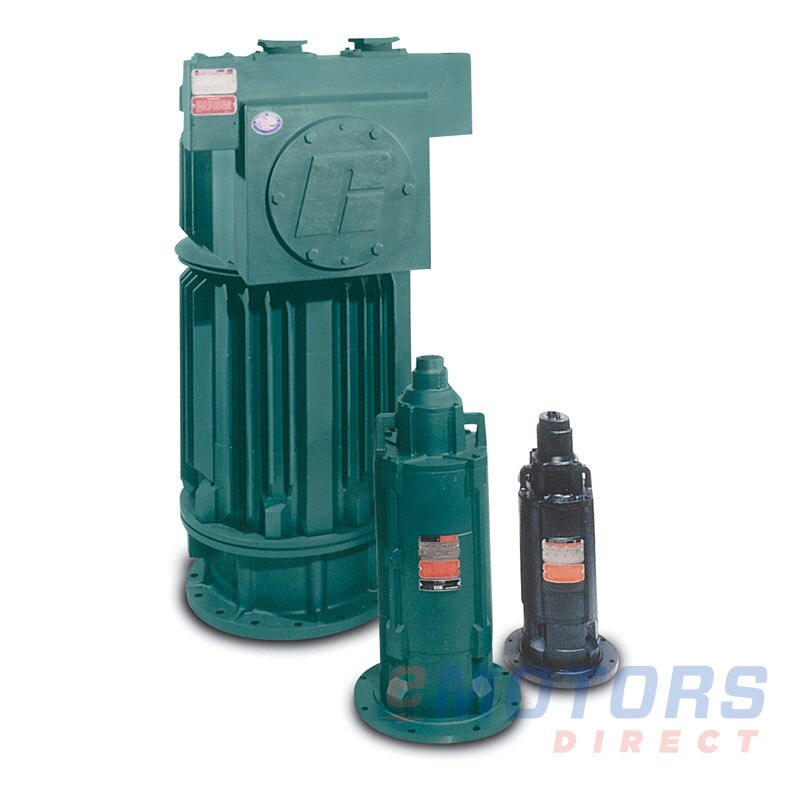

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor C21G2702

Baldor · Explosion Proof
5 HP 1800 210TY Fr TENV-XP Explosion Proof
Catalog Number: C21G2702
HP
5
RPM
1800
Voltage
230V
Frame
210TY
Phase
1
Enclosure
TENV-XP
Material
Cast Iron
Mounting
P-Base

Product-line overview

Baldor's extensive line of Division 1 Explosion Proof motors are designed and built to contain an explosion inside and not propagate it into the surrounding atmosphere. Approval listings are available for Class I (Gas) and or Class II (Dust) hazardous environments.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Feature

  • All cast iron construction
  • 416 stainless steel shafts
  • Dual carbon ceramic mechanical seals,
  • NC thermostats and 25 feet of cable
  • Dual moisture sensing probes
  • Includes NEMA 1 enclosure control box, wired complete with starting capacitors, wiring diagram and terminal board
  • Explosion Proof, Division 1, Group C & D, T3C
  • Submersible motors suitable for wet pit applications
  • Continuous duty in water/sewage
  • 15 minutes in air
  • 5 year pro-rated warranty
  • UL listed,Hazardous Duty

Applications

  • Municipal and Industrial wastewater
  • Slurry pump
  • Aerators
  • Mixers
Electrical Data
Rated Motor Output Power
5 HP
3.75 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V
Rated Motor Current
30 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
69
Nominal Power Factor
80.4
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
210TY
Enclosure
TENV-XP
Mounting
P-Base
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
31.69"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
15 min in air
Conduit Box Location
-
Removable Feet
No
Orientation
Vertical
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
60BC02JPP30A
NDE Bearing
30BC02JPG30A
Shaft Diameter
-
Shaft Length
-
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
T3C
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CCSA US, CSA, UL
Country of Origin
USA
Warranty
-
