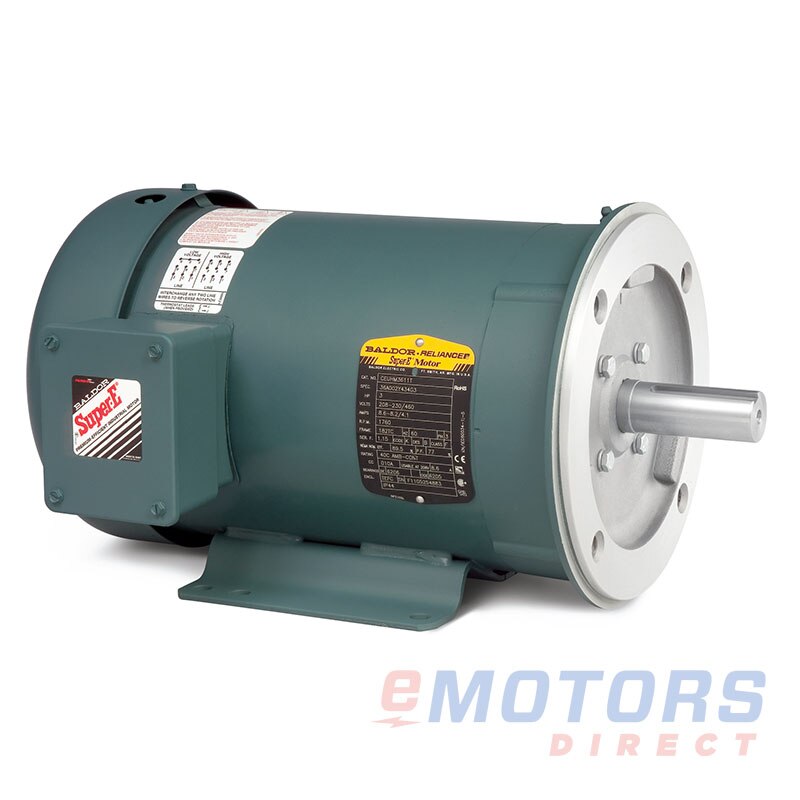

Baldor CEUHM3611T

Baldor · Unit Handling, three phase, TEFC, foot mounted
3 HP 1760 182TC TEFC 230V|460V General Purpose AC Motors
Catalog Number: CEUHM3611T
HP
3
RPM
1800
Voltage
208-230V, 460V
Frame
182TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor Unit Handling motor is built for dependable operation in demanding material handling environments. This three-phase, foot-mounted motor features a Totally Enclosed Fan Cooled (TEFC) enclosure that offers excellent protection against dust, debris, and moisture, making it ideal for continuous-duty applications. Most models come equipped with a compact, low-profile F-3 conduit box to improve mounting clearance and flexibility. The motor supports multiple base mounting configurations and includes color-coded and numbered leads for simplified wiring and installation. Rated for inverter duty, it’s well-suited for use with variable speed drives. A laser-etched nameplate with a clear, legible font ensures easy identification. Super-E® models also meet NEMA Premium® efficiency standards, helping to reduce energy costs, and come with a 3-year warranty for added peace of mind. Designed for use in conveyors, baggage handling systems, packaging lines, door operators, elevators, and hoists, this motor delivers the performance and efficiency needed for today’s unit handling systems.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Save up to CAD$14.00 per year
Switching from a Standard Efficient to a Premium Efficient motor

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

Unit Handling, three phase, TEFC, foot mounted

Features

  • Most models feature a space-saving, low-profile F-3 conduit box
  • Versatile mounting options with multiple base configurations
  • Simplified wiring through color-coded and numbered leads
  • Inverter duty rated for use with variable speed drives
  • Easy-to-read, laser-etched nameplate for quick identification
  • Super-E® models meet NEMA Premium® efficiency standards
  • Backed by a 3-year warranty and built for energy efficiency

Applications

  • Well-suited for conveyors and unit handling systems
  • Ideal for baggage handling, packaging equipment, and door operators
  • Commonly used in elevators and hoisting equipment
Electrical Data
Rated Motor Output Power
3 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
4.1 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
9
Service Factor
1.15
KVA Code
K
Nominal Efficiency
89.5
Nominal Power Factor
75
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
16.55"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR, CE, WEEE
Country of Origin
USA
Warranty
18-Month
