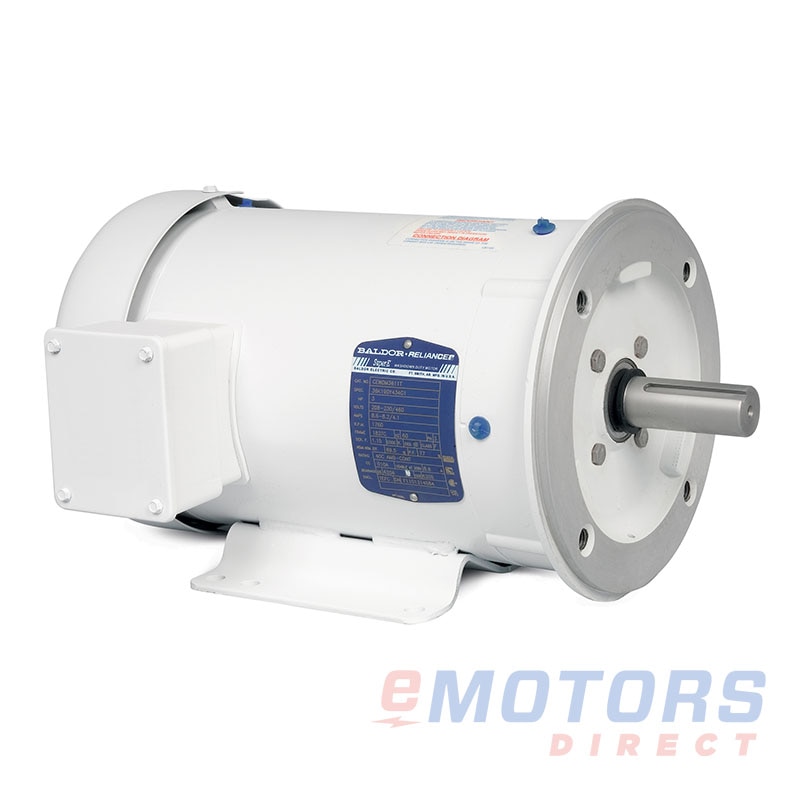

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor CEWDM23934T-5

Baldor · White Washdown, three phase, C-face foot mounted
20 HP 1765 256TC TEFC 575V Washdown Motors
Catalog Number: CEWDM23934T-5
HP
20
RPM
1800
Voltage
575V
Frame
256TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor White Washdown three-phase, C-face foot-mounted motor is built to perform in demanding washdown and wet environments. It features robust 300 series stainless steel hardware and neoprene gaskets for secure, moisture-resistant sealing. Double-sealed ball bearings, along with a lip and V-ring seal on the drive-end (DE), provide added protection against contaminants. The motor is coated with a durable white epoxy finish that resists corrosion, and it includes a stainless steel shaft extension for enhanced strength and longevity. Offering NEMA Premium® efficiency and backed by a 3-year warranty, this motor is ideal for food processing, packaging, pump systems, and wastewater applications.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Baldor: White Washdown, three phase, C-face foot mounted (77)

CWDM35371/23450208-230V, 460V56C $606.40
CWDM3538-51/21740575V56C $614.36
CWDM35381/21740208-230V, 460V56C $614.36
CWDM3542-53/41750575V56C $622.27
CWDM35423/41750208-230V, 460V56C $622.27
CWDM35413/43450208-230V, 460V56C $634.14
CEWDM3546-511745575V56C $689.67
CEWDM3546T-511745575V143TC $693.59
CEWDM3559T-533450575V145TC $733.23
CWDM35341/31755208-230V, 460V56C $743.23
CEWDM3558T-521755575V145TC $749.11
CEWDM3554T-51 1/21755575V145TC $772.90
CEWDM3611T-531760575V182TC $1,078.07
CWDM35391/21165208-230V, 460V56C $1,134.45
CEWDM3615T-551750575V184TC $1,189.03
CEWDM3613T-553450575V184TC $1,260.37
CEWDNM3545-H13450230V, 460V56HC $1,347.16
CEWDNM354513450208-230V, 460V56C $1,347.16
CWDM35433/41160208-230V, 460V56C $1,369.69
CEWDM3545T13450230V, 460V143TC $1,397.21
CEWDM3550T1 1/23500230V, 460V143TC $1,498.98
CEWDM3555-H23490230V, 460V56C $1,586.57
CEWDM3556-H11155230V, 460V56HC $1,609.92
CEWDNM3558T21750208-230V, 460V145TC $1,648.29
CEWDM3556T11155230V, 460V145TC $1,652.46
CEWDM3710T-57 1/21770575V213TC $1,763.74
CEWDM3714T-5101770575V215TC $2,033.27
CEWDM3617T1850230V, 460V182TC $2,576.71
CEWDM3618T1 1/2855230V, 460V184TC $2,998.79
CEWDM3709T-57 1/23500575V213TC $3,715.34
CEWDM3711T-5103490575V215TC $4,089.04
CEWDM3702T2865230V, 460V213TC $4,215.83
CEWDM3705T3865230V, 460V215TC $4,803.07
CEWDM3713T153500208-230V, 460V215TC $5,138.40
CEWDM23933T-5151765575V254TC $7,104.51
CEWDM23933T151765208-230V, 460V254TC $7,104.51
CEWDM23994T153500208-230V, 460V254TC $7,217.95
CEWDM23934T-5201765575V256TC $8,238.96
CEWDM23934T201765208-230V, 460V256TC $8,238.96
CEWDM41906T203520230V, 460V256TC $8,284.00
CEWDM3558-H21760230V, 460V56HC Contact for Pricing
CEWDM3554-H1 1/21770230V, 460V56HC Contact for Pricing
CEWDM3550-H1 1/23500230V, 460V56HC Contact for Pricing
CEWDM3546-H11775230V, 460V56HC Contact for Pricing
CWDM3543-H3/41180230V, 460V56HC Contact for Pricing
CWDM3542-H3/41765208-230V, 460V56HC Contact for Pricing
CWDM3541-H3/43450230V, 460V56HC Contact for Pricing
CWDM3539-H1/21175208-230V, 460V56HC Contact for Pricing
CWDM3538-H1/21770208-230V, 460V56HC Contact for Pricing
CWDM3537-H1/23450208-230V, 460V56HC Contact for Pricing

White Washdown, three phase, C-face foot mounted

Features

  • Built with corrosion-resistant 300 series stainless steel hardware
  • Neoprene gaskets for reliable sealing in wet conditions
  • Double-sealed ball bearings for extended motor life
  • Drive-end equipped with both lip and V-ring seals for added protection
  • Durable white epoxy finish resists corrosion and wear
  • Stainless steel shaft extension for strength and durability
  • Delivers NEMA Premium® efficiency and includes a 3-year warranty

Applications

  • Suitable for packaging operations
  • Designed for food processing environments
  • Reliable for pump and wastewater systems
  • Ideal for consistently wet or washdown areas
Electrical Data
Rated Motor Output Power
20 HP
15 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
575V
Rated Motor Current
19 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
93
Nominal Power Factor
84
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
256TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
289lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
23.57"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6309
NDE Bearing
6208
Shaft Diameter
1.625"
Shaft Length
4.0"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
USA
Warranty
3-Year
