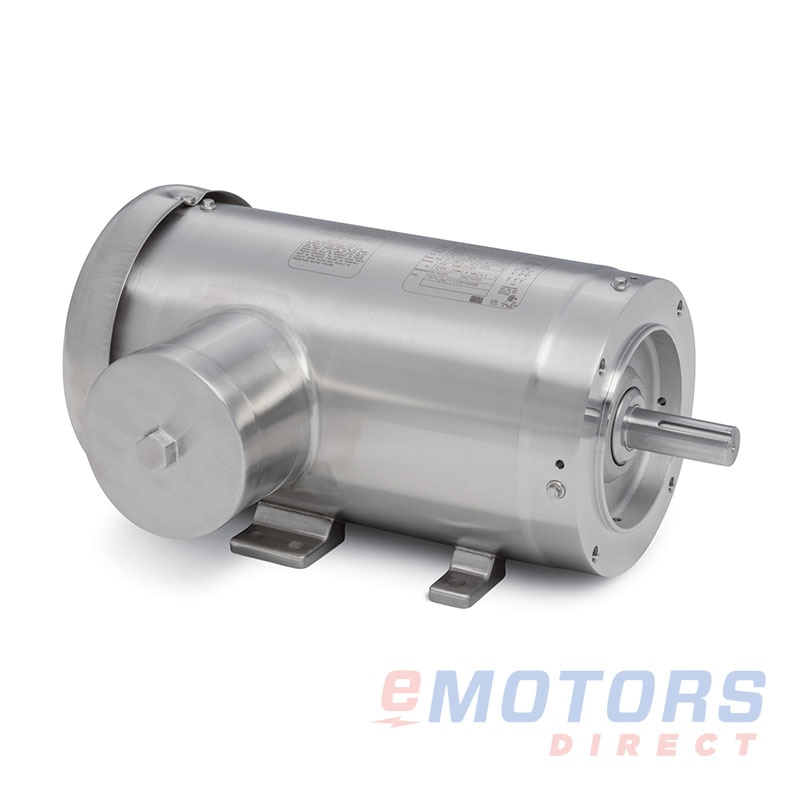

Baldor CFSWDM3558T-E

Baldor · Food Safe stainless steel, three phase, C-face foot mounted, encapsulated
2 HP 1760 145TC TEFC 230V|460V Washdown Motors
Catalog Number: CFSWDM3558T-E
HP
2
RPM
1800
Voltage
208V,230V,460V
Frame
145TC
Phase
3
Enclosure
TEFC
Material
Stainless Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor Food Safe three-phase motor is built with 300 series stainless steel, offering superior corrosion resistance to meet the stringent demands of food processing and other sanitary environments. This motor features individually welded feet for easy cleaning, smooth heads on external drains and hardware for enhanced sanitation, and a welded and polished conduit box that is rotatable 360° for flexible installation. The encapsulated windings with a Class H insulation system and color-coded leads ensure maximum durability and protection against contaminants. With O-ring sealed endplates and internal and external shaft sealing, this motor provides reliable, long-lasting performance even in the harshest washdown and caustic environments. Backed by a 3-year warranty and meeting NEMA Premium® efficiency standards, this motor is a top choice for food processing, pumps, wastewater systems, and other high-pressure washdown applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks
Edmonton, AB: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Food Safe stainless steel, three phase, C-face foot mounted, encapsulated (76)

CFSWDNM3554-E1 1/21750208V, 230V, 460V56C $2,524.48
CFSWDNM3554T-E1 1/21750208V, 230V, 460V145TC $2,594.05
CFSWDM3554T-E1 1/21760208V, 230V, 460V145TC $2,680.18
CFSWDNM3556-E11155230V, 460V56C $2,801.11
CFSWDNM3555-E23480230V, 460V56C $2,888.07
CFSWDM3556-E11155208-230V, 460V56C $2,888.07
CFSWDNM3558-E21750230V, 460V56C $2,930.31
CFSWDNM3555T-E23480230V, 460V145TC $2,951.02
CFSWDNM3558T-E21750230V, 460V145TC $2,986.63
CFSWDM3558-5E21765575V56C $3,016.45
CFSWDM3558-E21750208V, 230V, 460V56C $3,016.45
CFSWDM3555T-E23450208V, 230V, 460V143TC $3,037.16
CFSWDM3558T-E21750208V, 230V, 460V145TC $3,072.77
CFSWDM3558T-5E21800575V145TC $3,107.56
CFSWDM3607T-E1 1/21170230V, 460V182TC $3,201.15
CFSWDM3559-E33470230V, 460V56C $3,425.60
CFSWDM3614T-E21175230V, 460V184TC $3,553.15
CFSWDNM3611T-E31750208V, 230V, 460V182TC $3,578.00
CFSWDM3559T-E33470208V, 230V, 460V145TC $3,579.65
CFSWDM3559T-5E33600575V145TC $3,613.61
CFSWDM3611T-E31760208V, 230V, 460V182TC $3,688.98
CFSWDNM3610T-E33500230V, 460V182TC $3,704.72
CFSWDM3611T-5E31760575V182TC $3,777.60
CFSWDM3613T-E53500230V, 460V184TC $3,905.98
CFSWDM3615T-E51750230V, 460V184TC $3,934.97
CFSWDM3613T-5E53500575V184TC $3,993.77
CFSWDM3615T-5E51750575V184TC $4,022.76
CFSWDM3704T-E31170230V, 460V213TC $4,682.04
CFSWDM3709T-5E7 1/23500575V213TC $4,899.87
CFSWDM3709T-E7 1/23500230V, 460V213TC $4,899.87
CFSWDM3710T-5E7 1/21770575V213TC $5,001.74
CFSWDM3710T-E7 1/21770230V, 460V213TC $5,001.74
CFSWDM3708T-E51165230V, 460V215TC $5,545.07
CFSWDM3711T-5E103500575V215TC $5,555.83
CFSWDM3711T-E103500230V, 460V215TC $5,555.83
CFSWDM3714T-5E101770575V215TC $5,887.96
CFSWDM3714T-E101770230V, 460V215TC $5,887.96
CFSWDM41906T-E203525230V, 460V256TC $10,939.39
CFSWDM41903T251775230V, 460V284TC $13,916.09
CFSWDM41902T201180230V, 460V284TC $15,584.99
CFSWDM41904T301775230V, 460V284TC $16,004.08
CFSWDM3613T-4E53500460V182TC Contact for Pricing
CFSWDNM3611T-4E31750460V182TC Contact for Pricing
CFSWDM3559T-4E33470460V143TC Contact for Pricing
CFSWDNM3558T-4E21760460V143TC Contact for Pricing
CFSWDNM3555T-4E23480460V145TC Contact for Pricing
CFSWDNM3554-4E1 1/21765460V56C Contact for Pricing
CFSWDM3550-4E1 1/23500460V56C Contact for Pricing
CFSWDM3546-4E11770460V56C Contact for Pricing
CFSWDM3545-4E13450460V56C Contact for Pricing

Food Safe stainless steel, three phase, C-face foot mounted, encapsulated

Features

  • Constructed with 300 series stainless steel for superior corrosion resistance
  • Individually welded feet for easy cleaning, with smooth heads on external drains and hardware for optimal sanitation
  • Welded and polished conduit box, rotatable 360° for flexible installation
  • Epoxy-encapsulated windings with a Class H insulation system and color-coded leads for enhanced durability
  • O-ring sealed endplates to prevent contaminants from entering the motor
  • Internal and external shaft sealing for added protection and reliability
  • Backed by a 3-year warranty and meets NEMA Premium® efficiency standards for optimal performance

Applications

  • Ideal for caustic environments
  • Perfect for food processing operations
  • Commonly used in pumps and wastewater systems
  • Designed for outdoor installations
  • Suitable for high-pressure washdown applications
  • Excellent for sanitary washdown environments
Electrical Data
Rated Motor Output Power
2 HP
Rated Motor Speed
1750 RPM
Rated Motor Voltage
208V,230V,460V
Rated Motor Current
2.8 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
5.8
Service Factor
1.15
KVA Code
L
Nominal Efficiency
88.5
Nominal Power Factor
75
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
45lb
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
14.03"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
-
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
  • CAD 3DRegister or log in to download
