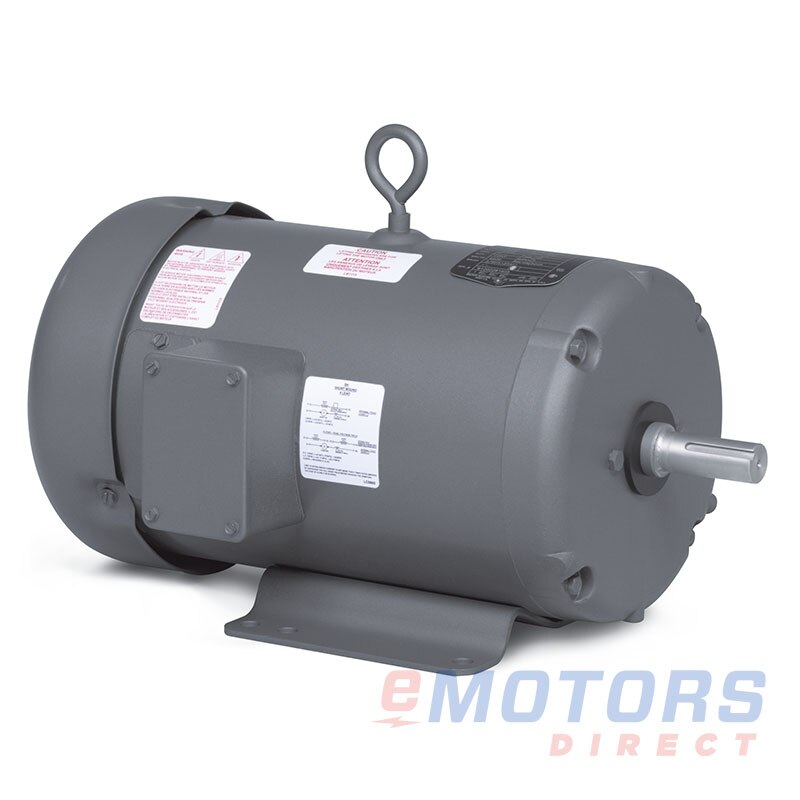

Baldor D2305

Baldor · DC Power Motor
1 1/2 HP 1750 184 TEFC 230V DC Motor
Catalog Number: D2305
HP
1 1/2
RPM
1800
Voltage
230V
Frame
184
Phase
DC
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor DC Power Motor is designed with a 20% compound wound construction for improved torque performance. It features weatherproof, VPI insulation that meets IEEE 45 specifications, making it ideal for marine duty applications. This motor is versatile, as it can be mounted in any position and is rated for continuous duty operation. It also offers easy access to the brush system for simplified maintenance. Powered by generators or batteries, the Baldor DC Power Motor is perfect for applications such as augers, cranes, hoists, and conveyors, and is well-suited for marine environments.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

DC Power Motor

Features

  • 20% compound wound design for enhanced torque performance
  • Weather-resistant construction with VPI insulation that meets IEEE 45 marine duty standards
  • Flexible installation—suitable for mounting in any orientation
  • Rated for continuous duty operation
  • Brush system designed for easy access and maintenance
  • Operates efficiently on generator or battery power sources

Applications

  • Ideal for augers, cranes, and hoists
  • Suitable for marine environments
  • Also used in conveyor systems
Electrical Data
Rated Motor Output Power
1 1/2 HP
Rated Motor Speed
1750 RPM
Rated Motor Voltage
230V
Rated Motor Current
0 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
2
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
84lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
16.79"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
2-Year
