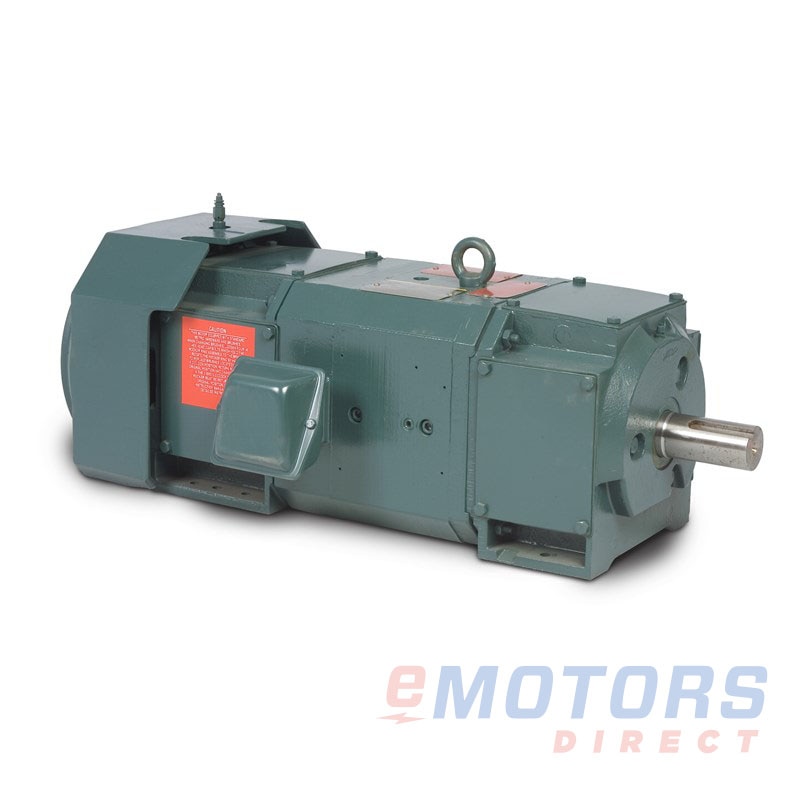

Baldor D5505R

Baldor · Permanent Magnet DC
5 HP 1750|2300 SC2113ATZ TENV Permanent Magnet DC
Catalog Number: D5505R
Spec Number: T21S0201
HP
5
RPM
1800, 2500
Voltage
-
Frame
2113ATZ
Phase
-
Enclosure
TENV
Material
Rolled Steel
Mounting
Rigid

Overview

These NEMA frame permanent magnet DC motors available in fractional through 5 HP are designed for adjustable speed operation from SCR controls. Applications include conveyors, extruders, winders, printing presses and metering pumps.

CAD$30,511.60
Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Baldor: Permanent Magnet DC (263)

CD750221750 213C $5,430.56
CD750331750 215C $5,775.42
D5005P51750|2300500V186AT $13,959.79
D2005P51750|2300240V186AT $13,959.79
CD2003P-231750|2300240V186ATC $14,304.25
CD2005P-251750|2300240V186ATC $14,523.81
D5005P-C51800|2500500V186ATC $15,883.73
D2005P-C51800|2500240V186ATC $15,883.73
D5007P7 1/21750|2300500V218AT $16,263.66
CD1805R51750180V1810ATCZ $16,350.57
D5010P101750|2300500V219AT $16,565.18
D2010P101750|2300240V219AT $16,565.18
CD2010P-2101750|2300240V219ATC $17,189.69
CD2005R-251750|2300240V1811ATCZ $17,490.89
D2007P-C7 1/21800|2500240V1810ATC $18,187.60
D5015P151750|2300500V258AT $18,541.18
D2015P151750|2300240V258AT $18,541.18
D5007P-C7 1/21800|2500500V218ATC $18,802.48
D5010P-C101800|2500500V219ATC $19,104.00
D2010P-C101800|2500240V219ATC $19,104.00
CD2015P-2151750|2300240V258ATC $19,510.15
D5015P-C151800|2500500V258ATC $22,075.12
D2015P-C151800|2500240V258ATC $22,075.12
CDD1803R31750180V189ATCZ $22,563.80
D2003R31750|2300240V189ATCZ $23,025.80
D5020P-C201800|2500500V259ATC $23,068.48
D5510P-C101800|2500500V259ATC $24,816.14
CD2003R-231750|2300 1811ATCZ $25,985.40
CD2007R-27 1/21750|2300240V1812ATCZ $26,525.80
D5025P-C251800|2500500V287-8ATC $29,011.75
D5030P-C301800|2500500V288ATC $29,011.75
D2030P-C301800|2500240V288ATC $29,011.75
D5507P-C7 1/21800|2500500V2110ATC $29,624.62
D2507P-C7 1/21800|2500240V2110ATC $29,624.62
D5505R51750|2300 2113ATZ $30,511.60
D5507R7 1/21750|2300 2113ATZ $32,886.00
D2507R7 1/21750|2300 2113ATZ $32,886.00
D2510P-C101800|2500240V259ATC $34,067.94
D5510R101750|2300 2113ATZ $36,978.20
D2510R101750|2300 2113ATZ $36,978.20
D5075P751750|2100500V366AT $43,199.65
D5515R151750|2300 2512ATZ $44,606.80
D2515R151750|2300 2512ATZ $44,606.80
D50150RE-BV1501750|2000500V2815ATZ $44,929.56
D50150URE-BV1501750|2000500V2815ATZ $45,637.59
D2520R201750|2300 3698 $46,488.40
D5520R201750|2300 3614 $46,488.40
D5525R251750|2300 2812ATZ $54,037.20
D2525R251750|2300 2812ATZ $54,037.20
D50300P-BV3001750500V506AT $189,095.90

Description

These NEMA frame permanent magnet DC motors include permanent magnet designs through 5 HP designed for adjustable speed operation from SCR controls. Applications include conveyors, extruders, winders, printing presses and metering pumps. Most designs are constructed so a tachometer may be added for closed loop applications. Permanent magnet designs for 90 or 180 VDC have a 20:1 constant torque speed range.

Features

High quality ball bearing motors with precision machined die cast aluminum or steel housings, Dynamically balanced for smooth vibration-free operation.

Common Industries

  • Plastics
  • Printing
  • Packaging

Common Applications

  • General purpose including conveyors
  • Material handling equipment
  • Packaging machinery

eMotors Direct’s stock of DC electric motors are designed for use in many industries, particularly where direct current is used as the power source. These small DC motors are best suited for applications where low-speed and high torque are required and where load stays relatively the same. They’re known for their ability to provide consistent torque throughout their entire speed range, but, keep in mind, DC motors are sensitive to changes in load.

Due to their simpler design, DC motors offer the chance at higher energy efficiency and are much easier to control than their counterpart, the induction motor. Amongst our stock, you’ll find standard brushed and BLDC (brushless) electric motors. Brushless electric motors are designed without the commutator or brushes, removing two of the main wearable components and in turn reducing the required maintenance time and costs.

Shop DC electric motors online through our Canadian website today. With over 400 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
5 HP
Rated Motor Speed
1750, 2300 RPM
Rated Motor Voltage
-
Rated Motor Current
1.06 AMP
Phase
-
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
F
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
2113ATZ
Enclosure
TENV
Mounting
Rigid
Number of Speeds
-
Approximate Weight
340lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
28.38"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
50BC03J30X
NDE Bearing
45BC02J30X
Shaft Diameter
1.875"
Shaft Length
-
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CCSA US
Country of Origin
USA
Warranty
2-Year
