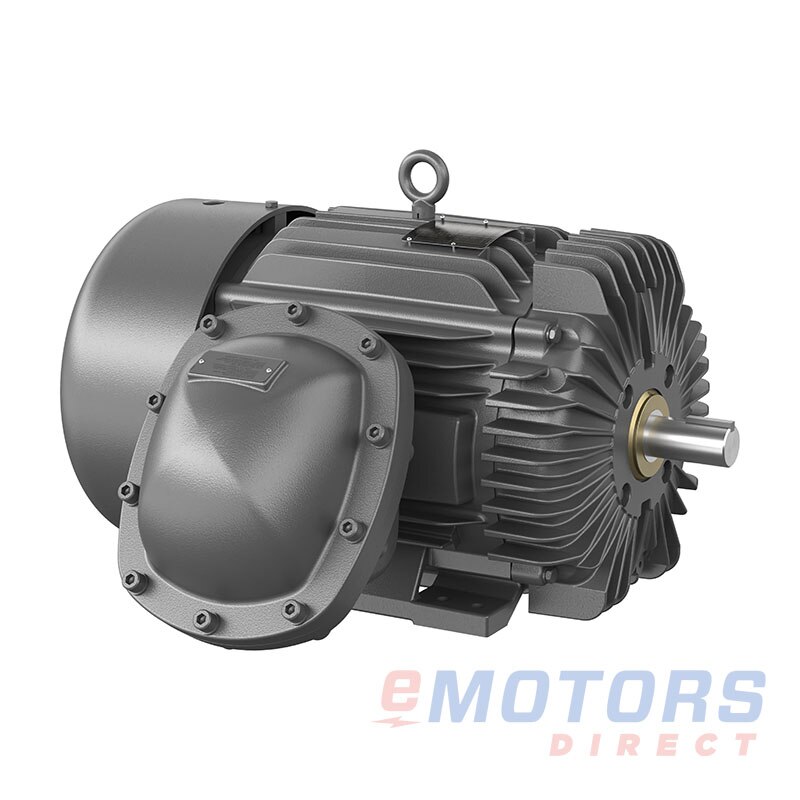

Baldor DRX282524T-5

Baldor · Explosion Proof, Drill Rig Duty, three phase, foot mounted
25 HP 3520 284TS TEFC-XP 575V Explosion Proof Motors for Hazardous Locations
Catalog Number: DRX282524T-5
Spec Number: 10-0000-0922
HP
25
RPM
3600
Voltage
575V
Frame
284TS
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Baldor Explosion Proof Drill Rig Duty three-phase, foot-mounted motor is designed for demanding applications in hazardous environments. Built with robust steel and cast iron frame construction, it offers durability and resilience for long-term performance. The motor features a 1.15 service factor with Class F insulation, making it suitable for 40°C ambient temperatures, and it can operate in environments up to 55°C at a 1.0 service factor. Inverter duty rated, the motor includes DE shaft slingers and UL-approved breather drains for added protection. It is equipped with normally closed thermostats for thermal safety and a threaded lead inlet for secure wiring. With an IP55-rated enclosure, this motor is ideal for use in bulk fuel terminals, Division 1 hazardous areas, transfer stations, and on and offshore drill rig services, supporting both fixed and variable speed operations.
Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Explosion Proof, Drill Rig Duty, three phase, foot mounted (74)

DRX18344T-531755575V182T $1,941.63
DRX18544T-551750575V184T $2,305.11
DRX18524T-553500575V184T $2,843.94
DRX21744T-57 1/21770575V213T $2,923.45
DRX21724T-57 1/23510575V213T $3,280.54
DRX21124T-5103500575V215T $3,442.40
DRX251524T-5153530575V254T $3,892.49
DRX251524T153530230V, 460V254T $3,892.49
DRX21144T-5101765575V215T $4,022.41
DRX251544T-5151765575V254T $4,561.24
DRX251544T151765230V, 460V254T $4,561.24
DRX25224T-5203530575V256T $5,132.01
DRX25224T203530230V, 460V256T $5,132.01
DRX25244T201770230V, 460V256T $5,909.37
DRX282524T-5253520575V284TS $6,735.72
DRX282524T253520230V, 460V284TS $6,735.72
DRX282544T-5251775575V284T $7,168.06
DRX281564T151175230V, 460V284T $8,001.51
DRX28324T-5303520575V286TS $8,041.26
DRX28324T303520230V, 460V286TS $8,041.26
DRX28264T201180230V, 460V286T $8,215.90
DRX28344T-5301770575V286T $8,739.12
DRX28344T301760230V, 460V286T $8,739.12
DRX322564T251180230V, 460V324T $10,271.83
DRX32424T-5403540575V324TS $10,413.82
DRX32424T403540230V, 460V324TS $10,413.82
DRX32364T301180230V, 460V326T $11,333.16
DRX32444T-5401775575V324T $11,712.26
DRX32444T401775230V, 460V324T $11,712.26
DRX32524T-5503560575V326TS $13,333.72
DRX32524T503560230V, 460V326TS $13,333.72
DRX32544T-5501775575V326T $13,595.68
DRX32544T501775230V, 460V326T $13,595.68
DRX36464T401190230V, 460V364T $13,639.69
DRX36564T501185230V, 460V365T $15,394.62
DRX36624T603560230V, 460V364TS $15,690.65
DRX36644T-5601780575V364T $15,792.17
DRX36644T601780230V, 460V364T $15,792.17
DRX36724T753555230V, 460V365TS $16,363.66
DRX36744T-5751780575V365T $17,338.38
DRX36744T751780230V, 460V365T $17,338.38
DRX40664T601185230V, 460V404T $19,434.77
DRX40764T751185230V, 460V405T $20,129.07
DRX40144T-51001785575V405T $20,136.17
DRX40144T1001785230V, 460V405T $20,136.17
DRX44164T1001188230V, 460V444T $23,084.25
DRX441244T1251785460V444T $23,468.78
DRX441264T1251190460V445T $25,236.53
DRX441544T1501785460V445T $26,227.68
DRX44244T2001785460V447T $36,289.94

Explosion Proof, Drill Rig Duty, three phase, foot mounted

Features

  • Durable steel and cast iron frame construction for long-lasting performance
  • 1.15 service factor with Class F insulation, rated for 40°C ambient temperature
  • Capable of handling up to 55°C ambient temperature at a 1.0 service factor
  • Inverter duty rated for reliable operation in various settings
  • DE shaft slinger and UL-approved breather drains for enhanced protection
  • Equipped with normally closed thermostats for thermal safety
  • Threaded lead inlet for secure and easy wiring installation
  • IP55-rated enclosure, with this specification clearly marked on the nameplate

Applications

  • Suitable for bulk fuel terminals
  • Designed for Division 1 hazardous locations as per customer specifications
  • Ideal for transfer stations
  • Supports both fixed and variable speed operation
  • Perfect for onshore and offshore drill rig service
Electrical Data
Rated Motor Output Power
25 HP
18.75 kW
Rated Motor Speed
3520 RPM
Rated Motor Voltage
575V
Rated Motor Current
23 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
F
Nominal Efficiency
91.7
Nominal Power Factor
90
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
10:1
6
General Data
Frame
284TS
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
27.23"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
57
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
1.625"
Shaft Length
3.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UL, CSA EEV
Country of Origin
USA
Warranty
-

Product Line Review
