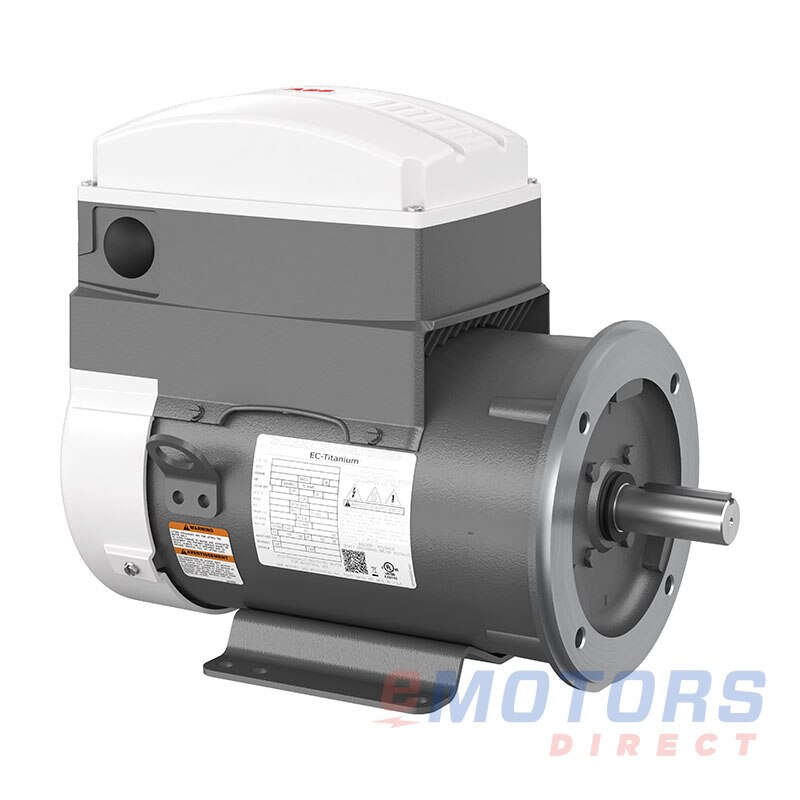

Baldor ECS100T4H5EB4

Baldor · EC Titanium Integrated motor-drive, TEFC, C-face foot mounted, Top Mount Drive
5 HP 1800 184TC TEFC 460V Integrated Drive Motors
Catalog Number: ECS100T4H5EB4
HP
5
RPM
1800
Voltage
460V
Frame
184TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor EC Titanium™ Integrated Motor-Drive, TEFC, C-Face Foot Mounted with Top Mount Drive is designed for high efficiency and advanced control in a compact package. Featuring a permanent magnet motor with PWM AC drive control, it delivers IE5+ efficiency and precise speed regulation. The motor is housed in a durable IP54-rated enclosure, ensuring reliable performance in harsh environments. It includes integrated ABB Ability™ and Bluetooth® for seamless connectivity, along with a Serial Modbus RJ45 interface for communication. With two digital inputs, two configurable analog/digital inputs, and one relay output, it provides versatile control options. Designed for inverter use and compliant with NEMA MG1 Part 31.4.4.2, this motor features Class F insulation, Class B temperature rise, and an internal grounding brush to reduce bearing currents. It’s ideal for applications including fans, compressors, blowers, HVAC systems, and pumps.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

EC Titanium Integrated motor-drive, TEFC, C-face foot mounted, Top Mount Drive

Features

  • Permanent Magnet motor with PWM AC drive control for precise speed management
  • Durable IP54-rated plastic cover with gasketed enclosure for enhanced protection
  • Integrated ABB Ability™ and Bluetooth® connectivity for easy monitoring and configuration
  • Built-in RJ45 interface for Serial Modbus communication
  • Includes 2 digital inputs and 2 configurable analog/digital inputs for flexible integration
  • One relay output for external control functionality
  • Exceeds IE5+ efficiency standards for energy-saving performance
  • Equipped with Class F insulation and operates at Class B temperature rise
  • Internal grounding brush reduces bearing currents for extended motor life
  • Designed for inverter duty, compliant with NEMA MG1 Part 31.4.4.2

Applications

  • Ideal for compressors and blowers
  • Performs reliably in fan and HVAC systems
  • Suitable for unit handling operations
  • Effective in pump systems
  • Perfect for variable speed and inverter-driven applications
Electrical Data
Rated Motor Output Power
5 HP
3.75 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
460V
Rated Motor Current
5.3 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
93.7
Nominal Power Factor
97
Leads (Qty, Size)
2
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
133:1
0.45
Constant Torque
10:1
6
General Data
Frame
184TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
77lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
16.71"
NEMA Design
-
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cULus
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
  • CAD 3DRegister or log in to download
