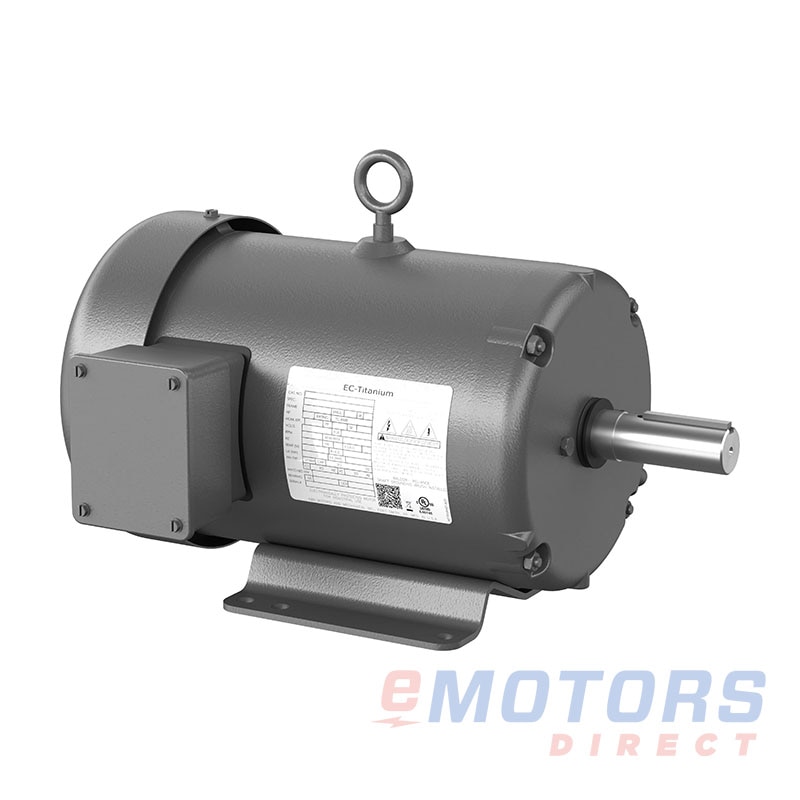

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor ECS101M0H5EF4

Baldor · EC Titanium, three phase, TEFC, foot mounted
5 HP 1800 184T TEFC 230V|460V General Purpose AC Motors
Catalog Number: ECS101M0H5EF4
Spec Number: 36T257L051G1
HP
5
RPM
1800
Voltage
230V, 460V
Frame
184T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor EC Titanium™, Three Phase, TEFC, Foot Mounted motor is engineered for exceptional energy efficiency and reliable performance in demanding industrial environments. Designed to meet IE5+ efficiency standards, it features innovative Ferrite Assisted Synchronous Reluctance (FASR) rotor technology. With Class F insulation and Class B temperature rise, the motor offers enhanced thermal protection, while its IP55 enclosure and shaft seal provide solid defense against dust and moisture. An internal grounding brush on the drive-end retainer ring helps mitigate bearing currents, extending motor life. Built specifically for inverter-driven applications per NEMA MG1 Part 31.4.4.2, it also offers a 1.5 service factor for increased load-handling capacity. Backed by a 3-year warranty, this motor is ideal for compressors, blowers, fans, unit handling systems, HVAC applications, pumps, and other variable speed operations.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

EC Titanium, three phase, TEFC, foot mounted

Features

  • Exceeds IE5 efficiency standards for ultra-premium performance
  • Built with Ferrite Assisted Synchronous Reluctance (FASR) rotor technology
  • Features Class F insulation and operates at Class B temperature rise for enhanced thermal protection
  • IP55 protection rating with shaft seal for added durability in tough environments
  • Includes internal grounding brush on the drive end retainer ring to reduce bearing currents
  • Engineered exclusively for inverter-driven applications per NEMA MG1 Part 31.4.4.2
  • High 1.5 service factor for added reliability under variable loads
  • Backed by a 3-year warranty for long-term dependability

Applications

  • Ideal for compressors and blower systems
  • Performs efficiently in fan-driven operations
  • Suitable for unit handling and HVAC setups
  • Reliable choice for pump systems
  • Perfect for variable speed and inverter-based applications
Electrical Data
Rated Motor Output Power
5 HP
3.75 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
10.5/5.3 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.5
KVA Code
-
Nominal Efficiency
93.7
Nominal Power Factor
97.3
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
60:1
1
Constant Torque
10:1
6
General Data
Frame
184T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
16.54"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
-
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cULus
Country of Origin
USA
