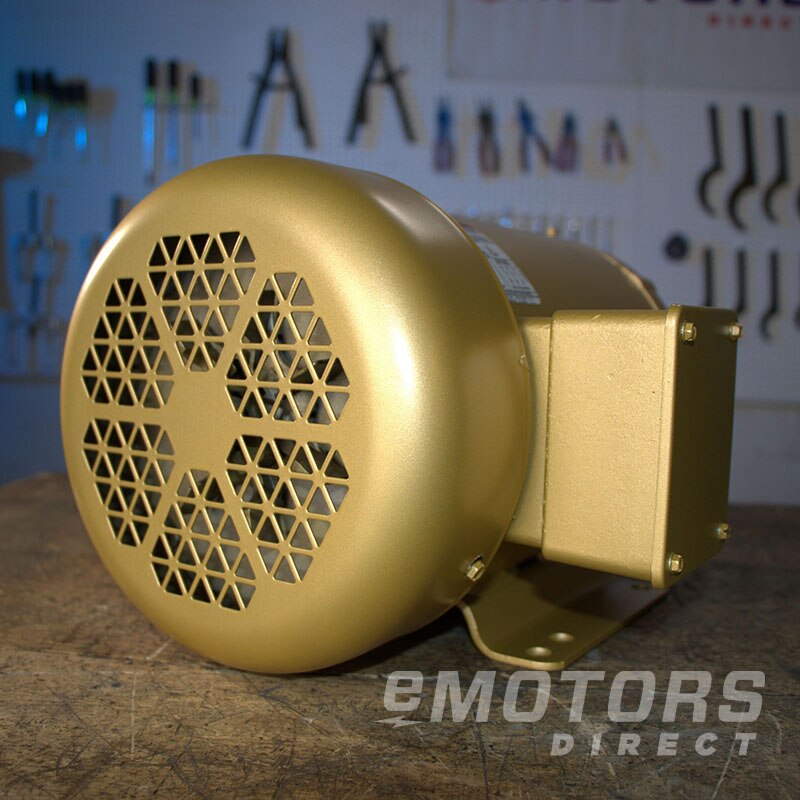

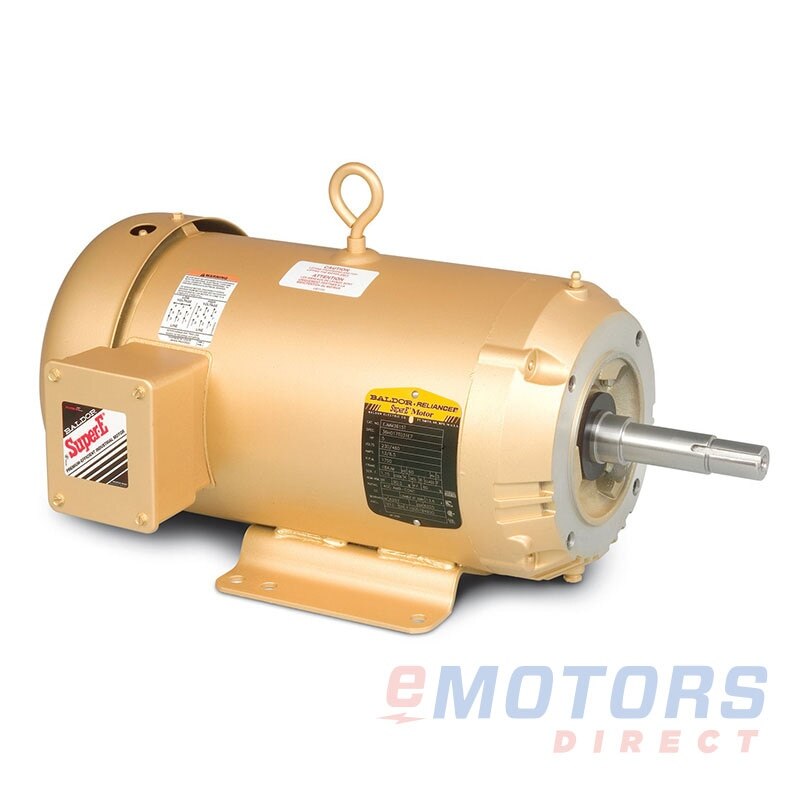

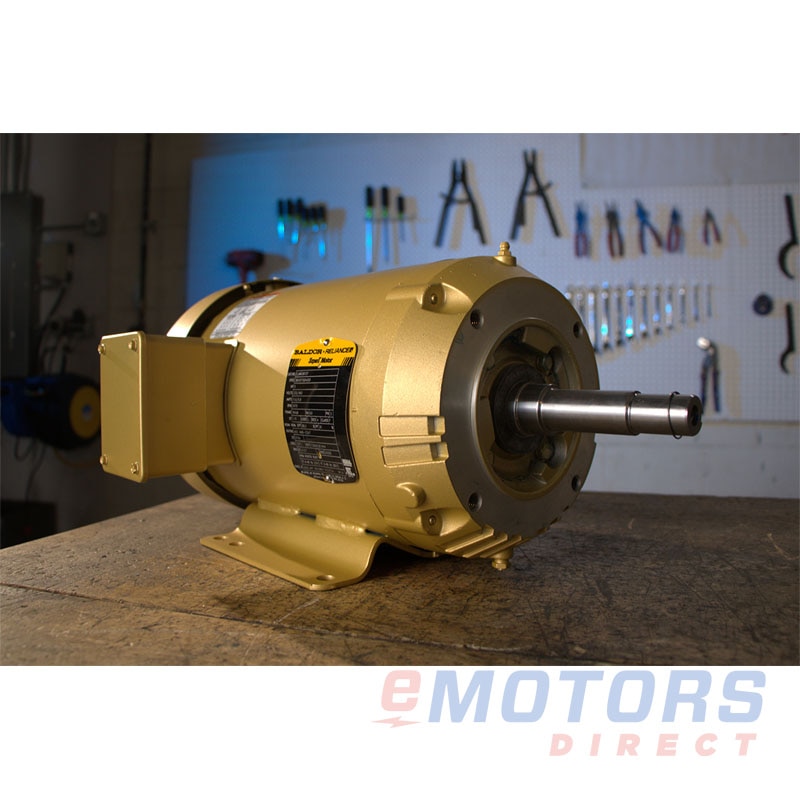

Baldor EJMM3616T-5

Baldor · Pump
7 1/2HP 3470 184JM TEFC 575V Pump
Catalog Number: EJMM3616T-5
Spec Number: 36H017S467G1
HP
7 1/2
RPM
3600
Voltage
575V
Frame
184JM
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Overview

Baldor Jet pump motors are available in open drip proof or totally enclosed industrial steel band constructions. Motor construction can be tailored for specific applications and industries such as food processing, washdown applications or explosion proof enclosures for pumps in hazardous areas.

CAD $1,164.45
Contact us for delivery dates
Flat Fee Shipping across Canada: $40.00
Need it Now?See our Cross-Referenced Matches for equivalent alternatives

Product Highlights

Cross-Referenced Matches (2)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Max Motion JMPP-26S

    7 1/2HP 3505 184JM TEFC 575V Pump

    CAD $727.14
    Ships next business day
  • Nidec UJ7P1GFM

    7 1/2HP 3515 184JM TEFC 575V Pump

    CAD $861.00
    Ships next business day
More Information

Description

Baldor Close-Coupled pump motors are available in a wide variety of construction enclosures from industrial steel band open designs to harsh applications requiring totally enclosed cast iron design. Various mounting provisions from JM, JP, and Westcoast are available as stock and custom.

Feature

  • The motor flange and shaft are designed to support the pump unit.
  • Over-sized ball bearings with locked drive end construction to minimize endplay.
  • The Super-E® motors (EJPM & EJMM) meet NEMA Premium Efficiency requirements
  • 1-year warranty
