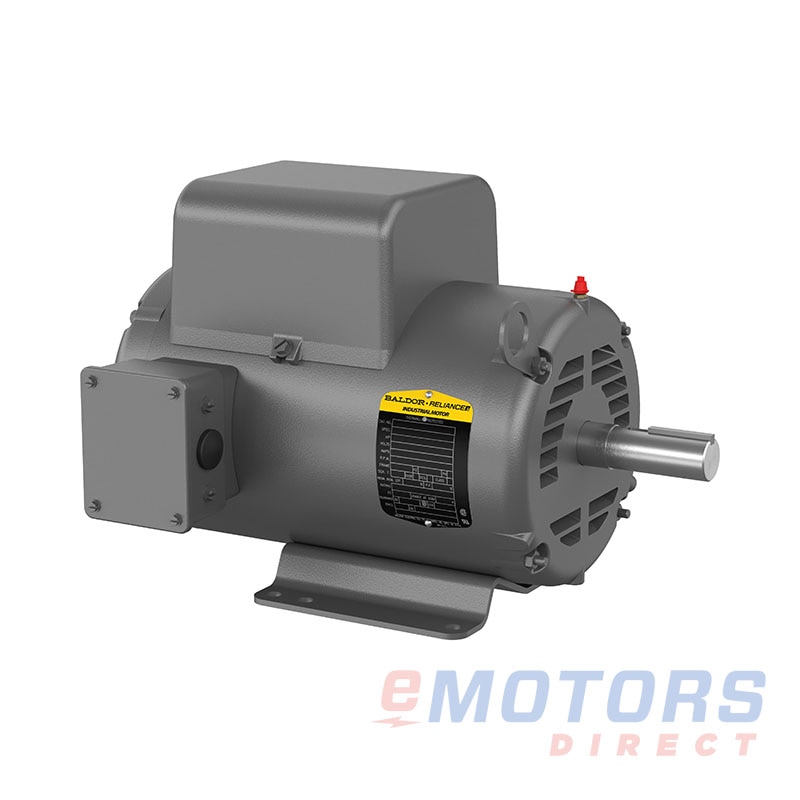

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor EL1408T

Baldor · General purpose, single phase, ODP, foot mounted
3 HP 1750 184T ODP 208-230V General Purpose AC Motors
Catalog Number: EL1408T
Spec Number: 36K265T269E7
HP
3
RPM
1800
Voltage
208-230V
Frame
184T
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor general-purpose, single-phase motor with an open drip-proof (ODP) design is built to deliver reliable and efficient performance across a range of industrial applications. It features a low-noise, vibration-dampening base that ensures smooth operation, while the dynamically balanced rotor extends bearing life for long-term reliability. The motor’s superior switch design provides optimized torque for efficient operation. Constructed with robust, heavy-gauge steel, it offers exceptional durability. Additionally, the optimized airflow design allows for higher horsepower output within a more compact size. This motor is ideal for use in machine tools, air handling systems, conveyors, pumps, material handling, and fan applications.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: General purpose, single phase, ODP, foot mounted (90)

EL11306A3/43450115V, 230V56 Contact for Pricing
EL11203M1/41725115V, 230V48 $522.90
EL11301M1/31740115V, 230V56 $559.79
EL11206M1/31740115V, 230V48 $559.79
EL11304A1/21725115V, 230V56 $624.15
EL11209M1/21725115V, 230V48 $624.15
EL1130913600115V, 230V56 $676.23
EL11309A13480115V, 230V56 $707.32
EL11307M3/41755115V, 230V56 $736.97
EL11307A3/41755115V, 230V56 $736.97
EL113131 1/23600115V, 230V56H $768.07
EL11313A1 1/23480115V, 230V56H $800.61
EL1131811800115V, 230V56H $812.19
EL11318M11800115V, 230V56H $843.28
EL1131723600115V, 230V56H $849.08
EL11317A23600115V, 208-230V56H $881.62
EL113191 1/21800115V, 230V56H $966.96
L1313T-C1 1/23600115V, 208-230V143TC $1,012.20
L1318T-C11800115V, 208-230V143TC $1,050.53
EL1319T1 1/21755115V, 208-230V145T $1,074.01
L1318TM-C11800115V, 230V143TC $1,080.90
L1319T-C1 1/21800115V, 208-230V145TC $1,097.53
L1321T-C1 1/21800115V, 208-230V145TC $1,251.59
L1322T-C21800115V, 208-230V145TC $1,269.66
L1405T-C21800115V, 208-230V182TC $1,295.02
EL1405T21800115V, 230V182T $1,299.64
L1320T-C23600115V, 208-230V145TC $1,301.49
L1321TM-C1 1/21800115V, 208-230V145TC $1,330.42
EL1408T31800208-230V184T $1,359.67
EL1406T33600115V, 230V182T $1,368.36
L1408T-C31800115V, 208-230V184TC $1,374.57
EL1319T-C1 1/21800115V, 208-230V145TC $1,404.92
L1410T-C51800208-230V184TC $1,428.81
L1406T-C33600115V, 208-230V182TC $1,435.31
L1430T-C51800208-230V184TC $1,462.81
EL1410T51800230V184T $1,552.77
L1408TM-C31800115V, 230V184TC $1,558.26
EL1409T53600230V184T $1,624.37
EL1405T-C21800115V, 230V182TC $1,631.31
L1409T-C53600208-230V184TC $1,645.05
EL1319T-D1 1/21800115V, 208-230V145TD $1,690.36
EL1408T-C31800208-230V184TC $1,691.34
L1430TM-C51800208-230V184TC $1,823.70
L1410TM-C51800208-230V184TC $1,823.70
EL1410T-C51800230V184TC $1,884.44
L1508T-C51800230V213TC $2,292.85
L1510T-C7 1/21800208-230V215TC $2,430.99
L1509T-C7 1/23600208-230V213TC $2,539.63
L1511T-C103600208-230V215TC $3,224.37
L1512T-C101800230V215TC $3,241.74

General purpose, single phase, ODP, foot mounted

Features

  • Quiet operation with a vibration-dampening base for reduced noise
  • Dynamically balanced rotor extends bearing life and improves performance
  • Advanced switch design ensures efficient torque delivery
  • Built with heavy-duty steel for maximum durability
  • Optimized airflow system delivers higher horsepower in a compact design

Applications

  • Industrial machine tools
  • Air handling systems
  • Conveyor machinery
  • Pumping systems
  • Material handling equipment
  • Fan installations
Electrical Data
Rated Motor Output Power
3 HP
2.25 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
11.2 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
12.5
Service Factor
1.15
KVA Code
F
Nominal Efficiency
85.5
Nominal Power Factor
98
Leads (Qty, Size)
2
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
16.5"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
USA
Warranty
3-Year
