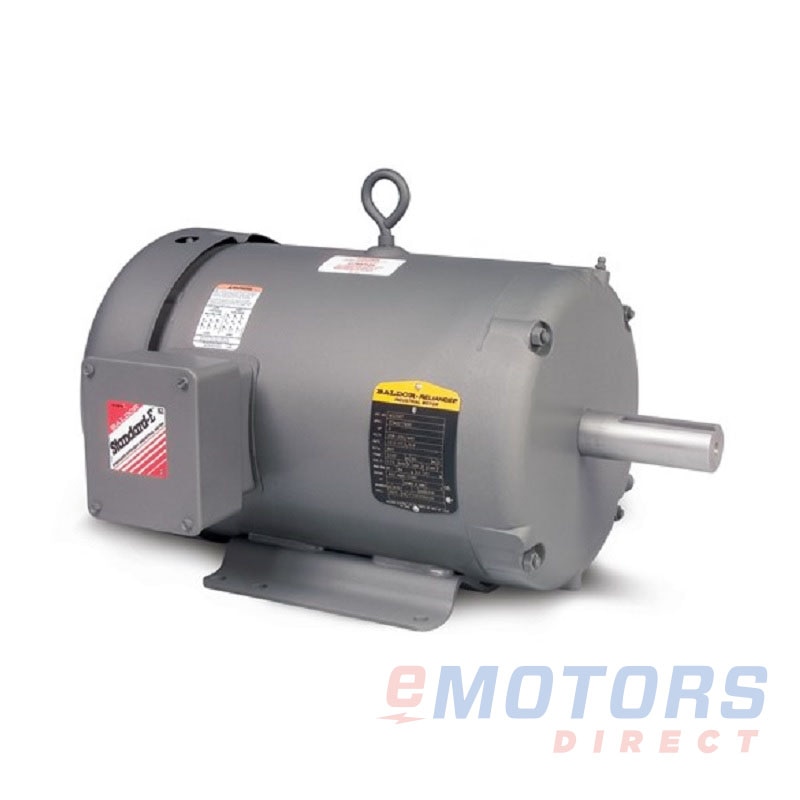

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor EM3558T-9

Baldor · Quarry Duty, three phase, TEFC, foot mounted, Design C, high torque
2 HP 1765 145T TEFC 230V|460V General Purpose AC Motors
Catalog Number: EM3558T-9
Spec Number: 35E2790L098G1
HP
2
RPM
1800
Voltage
208V, 230V, 460V
Frame
145T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor Quarry Duty three-phase motor is designed to deliver high performance and durability in demanding industrial environments. Featuring a Totally Enclosed Fan-Cooled (TEFC) construction, it offers superior protection against dust, dirt, and moisture, making it ideal for harsh conditions. The motor is built with a high-torque NEMA Design C, ensuring reliable operation even under heavy load conditions. The foot-mounted design provides stable and secure installation, while the steel band frame, cast endplates, and conduit box, along with a steel fan cover, contribute to its robust build. With an IP55-rated enclosure, gasketed conduit box, and shaft seal, this motor is protected from the elements and designed for longevity. It is also inverter-duty rated and operates efficiently at 208V, making it suitable for a variety of heavy-duty applications in industries like mining, cement, and material handling.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

Quarry Duty, three phase, TEFC, foot mounted, Design C, high torque

Features

  • High-torque NEMA Design C for enhanced performance
  • Steel band frame with cast endplates and conduit box, complemented by a steel fan cover for durability
  • IP55-rated enclosure featuring a gasketed conduit box, cover, and shaft seal for superior protection
  • Inverter Duty rated for compatibility with variable frequency drives
  • Class F insulation with a 1.15 service factor or higher, operating within Class "B" temperature limits at rated horsepower
  • Operates efficiently at 208V for versatile use

Applications

  • Ideal for above-ground mining operations
  • Cement production and processing
  • Bulk material handling systems
  • Belt conveyors and screening equipment
  • Aggregate processing
Electrical Data
Rated Motor Output Power
2 HP
Rated Motor Speed
1740 RPM
Rated Motor Voltage
208V,230V,460V
Rated Motor Current
2.9 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
5.8
Service Factor
1.15
KVA Code
L
Nominal Efficiency
86.5
Nominal Power Factor
74
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.29"
NEMA Design
C
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
-
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
-
