Baldor EM3604

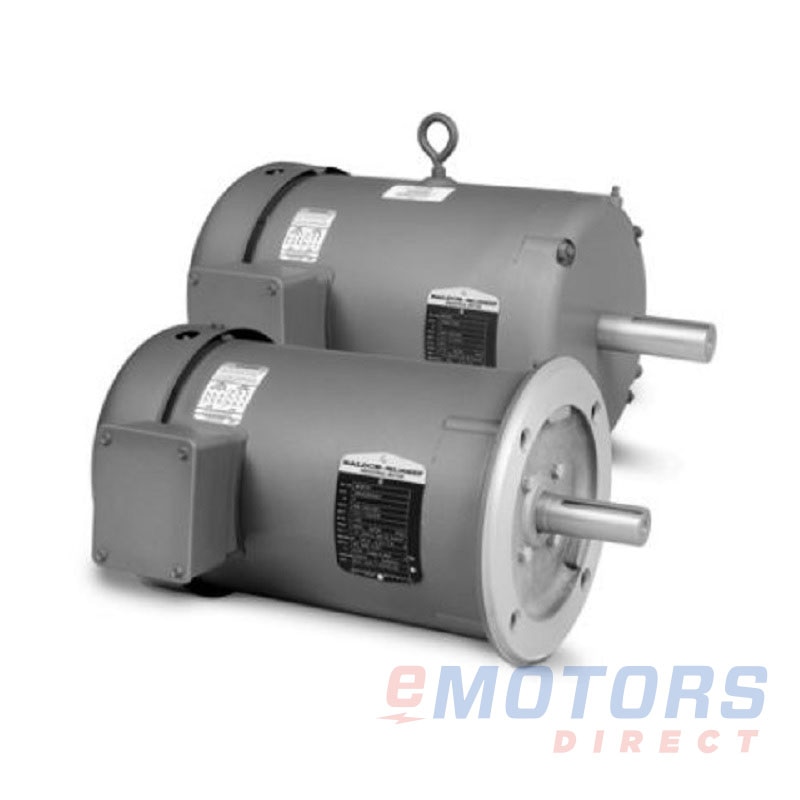

Baldor · U-Frame, three phase, TEFC, foot mounted
1 HP 1170 184 TEFC 230V|460V Definite Purpose
Catalog Number: EM3604
HP
1
RPM
1200
Voltage
230V,460V
Frame
184
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor U-Frame motor is engineered for reliable and efficient operation in a variety of industrial applications. This three-phase motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring optimal protection against dust, moisture, and contaminants while allowing for effective cooling. Designed for cool operation, the motor helps extend its lifespan and operates within "B" temperature limits at rated horsepower. With a 1.15 service factor, it provides added reliability for demanding tasks. The motor is equipped with high-performance ball bearings, ensuring smooth operation, and is dynamically balanced to reduce vibration and improve stability. Its heavy-gauge steel and cast-iron frame construction enhances durability, while the U-frame mounting dimensions allow for easy installation. This motor is ideal for applications such as pumps, compressors, fans, conveyors, and machine tools, offering consistent, long-lasting performance.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

U-Frame, three phase, TEFC, foot mounted

Features

  • Designed for cool operation, promoting longer motor life
  • Operates within "B" temperature limits at rated horsepower
  • Fan-cooled for optimal performance
  • 1.15 service factor for added reliability
  • High-performance ball bearings ensure smooth operation
  • Dynamically balanced for reduced vibration
  • Constructed with heavy-gauge steel and cast-iron frames for durability
  • U-frame mounting dimensions for easy installation

Applications

  • Ideal for pumps, compressors, and fans
  • Suitable for conveyors and machine tools
Electrical Data
Rated Motor Output Power
1 HP
Rated Motor Speed
1200 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
1.8 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
F
Nominal Efficiency
82.5
Nominal Power Factor
64
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
41lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.76"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
  • CAD 3DRegister or log in to download

Downloads unlock once you're signed in.
