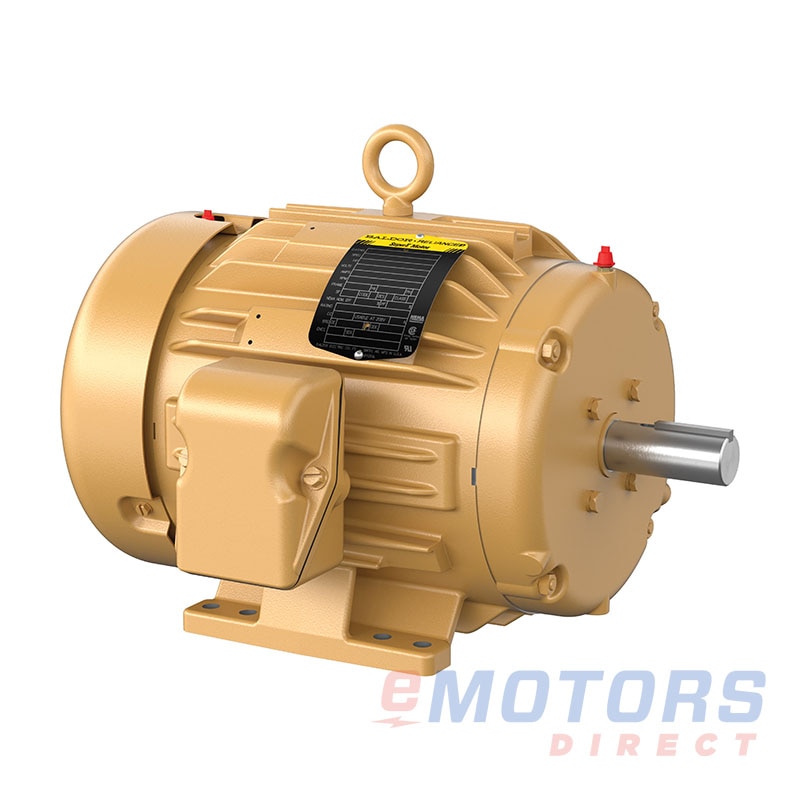

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor EM3667T-BG

Baldor · HVAC, NEMA Premium, three phase, TEFC, foot mounted, Shaft Grounding
1 1/2 HP 1170 182T TEFC 230V|460V General Purpose AC Motors
Catalog Number: EM3667T-BG
Spec Number: 06-0000-0090
HP
1 1/2
RPM
1200
Voltage
230V, 460V
Frame
182T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The HVAC, NEMA Premium, three-phase, TEFC, foot-mounted motor from Baldor is designed for optimal performance in demanding HVAC applications. Built with Class H insulation, this motor offers increased protection for inverter use and features an internal grounding brush for bearing current mitigation on the DE retainer ring. It is also designed for longevity, with a 3-year warranty ensuring dependable operation. This motor is suitable for inverter use, meeting the NEMA MG1 Part 31.4.4.2 standards. Its durable construction makes it ideal for variable speed applications in fans, pumps, blowers, and other general-purpose HVAC systems.

Let us know you are interested in this product and our team will get back to you with a price.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: HVAC, NEMA Premium, three phase, TEFC, foot mounted, Shaft Grounding (44)

EM3546T-BG11760230V, 460V143T $1,019.45
EM3554T-BG1 1/21760230V, 460V145T $1,052.10
EM3558T-BG21755230V, 460V145T $1,083.34
EM3555T-BG23490230V, 460V145T $1,123.09
EM3611T-BG31760230V, 460V182T $1,212.54
EM3559T-BG33450230V, 460V145T $1,212.54
EM3584T-BG1 1/21770230V, 460V145T $1,284.96
EM3615T-BG51750230V, 460V184T $1,304.83
EM3586T-BG23490230V, 460V145T $1,363.05
EM3582T-BG11170230V, 460V145T $1,373.70
EM3613T-BG53450230V, 460V184T $1,373.70
EM3661T-BG31755230V, 460V182T $1,509.29
EM3665T-BG51750230V, 460V184T $1,539.82
EM3664T-BG21165230V, 460V184T $1,637.79
EM3663T-BG53480230V, 460V184T $1,768.41
EM3710T-BG7 1/21770230V, 460V213T $1,808.17
EM3704T-BG31160230V, 460V213T $1,835.14
EM3709T-BG7 1/23520230V, 460V213T $1,970.74
EM3711T-BG103490230V, 460V215T $1,994.17
EM3764T-BG31165230V, 460V213T $2,006.23
EM3714T-BG101770230V, 460V215T $2,008.36
EM3708T-BG51165230V, 460V215T $2,039.60
EM3770T-BG7 1/21770230V, 460V213T $2,225.60
EM3769T-BG7 1/23510230V, 460V213T $2,294.46
EM3771T-BG103490230V, 460V215T $2,344.16
EM3774T-BG101760230V, 460V215T $2,438.58
EM2333T-BG151800208-230V, 460V254T $3,002.96
EM2394T-BG153600208-230V, 460V254T $3,253.56
EM2276T-BG7 1/21180230V, 460V254T $3,286.93
EM2334T-BG201800208-230V, 460V256T $3,575.87
EM2332T-BG101200208-230V, 460V256T $3,707.91
EM4103T-BG251800208-230V, 460V284T $4,624.42
EM4100T-BG151175200-230V, 460V284T $4,884.96
EM4104T-BG301800208-230V, 460V286T $5,420.95
EM4102T-BG201200208-230V, 460V286T $6,388.57
EM4110T-BG401800208-230V, 460V324T $7,059.44
EM4111T-BG251200208-230V, 460V324T $7,260.35
EM4115T-BG501800208-230V, 460V326T $7,674.24
EM3768T-BG51160230V, 460V215T Contact for Pricing
EM3587T-BG21760230V, 460V145T Contact for Pricing
EM3667T-BG1 1/21170230V, 460V182T Contact for Pricing
EM3660T-BG33470230V, 460V182T Contact for Pricing
EM3583T-BG1 1/23500230V, 460V143T Contact for Pricing
EM3581T-BG11770230V, 460V143T Contact for Pricing

HVAC, NEMA Premium, three phase, TEFC, foot mounted, Shaft Grounding

Features

  • Class H insulation for enhanced protection in inverter-driven applications
  • Internal grounding brush on DE retainer ring to mitigate bearing currents
  • Built for long-lasting performance with a 3-year warranty
  • Compatible with inverter use, adhering to NEMA MG1 Part 31.4.4.2 standards

Applications

  • Fans
  • Pumps
  • Blowers
  • Unit handling
  • HVAC systems
  • Variable speed operations
  • General purpose uses
Electrical Data
Rated Motor Output Power
1 1/2 HP
1.125 kW
Rated Motor Speed
1170 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
5/2.5 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
87.5
Nominal Power Factor
65
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
182T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
15.24"
NEMA Design
B
Degree of Protection (IP)
IP44
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
26 °C
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.74"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA EEV, UR
Country of Origin
USA
Warranty
3-Year
