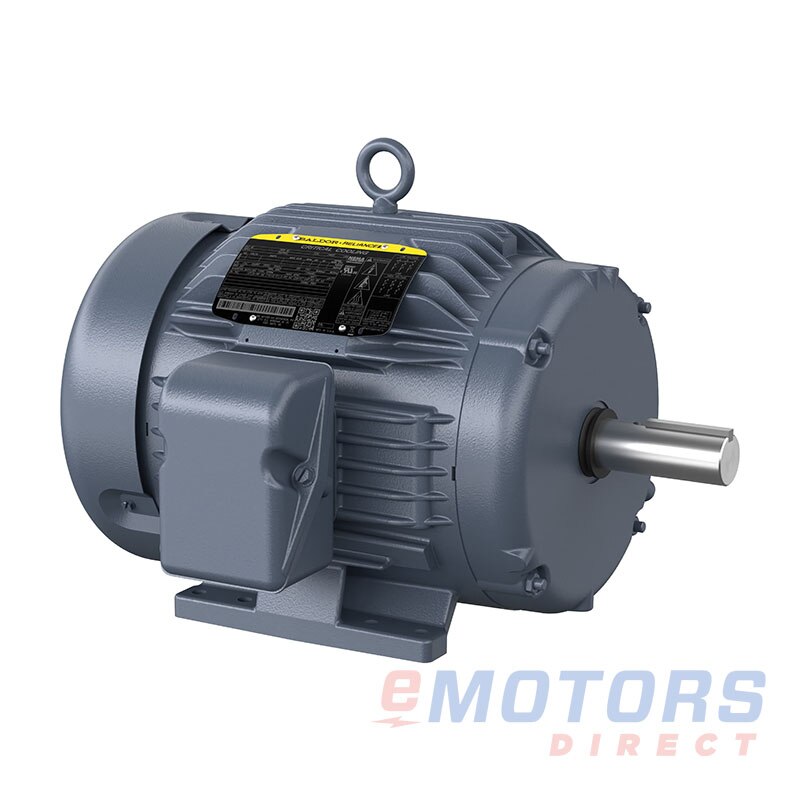

Baldor HBEM3764T

Baldor · Critical Cooling, three phase, TEFC, Inverter Duty, Bearing Protection
3 HP 1165 213T TEFC 230V|460V General Purpose AC Motors
Catalog Number: HBEM3764T
Spec Number: 07D743X970G1
HP
3
RPM
1200
Voltage
230V, 460V
Frame
213T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Baldor Critical Cooling motor is designed for superior performance, featuring a durable cast iron frame and built to handle inverter applications in accordance with NEMA MG1 Part 31.4.4.2 standards. It is equipped with sealed hybrid ceramic bearings that offer protection against shaft currents, ensuring long-lasting reliability. With a focus on longevity, this motor is backed by a 5-year warranty for added peace of mind. It is well-suited for a range of demanding applications, including fans, direct drive systems, HVAC, variable speed operations, and mission-critical environments, making it a dependable choice for industries that require consistent and efficient performance.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

Critical Cooling, three phase, TEFC, Inverter Duty, Bearing Protection

Features

  • Sturdy cast iron frame construction for durability
  • Inverter-ready, compliant with NEMA MG1 Part 31.4.4.2
  • Hybrid Ceramic bearings sealed to safeguard against shaft currents
  • Designed for long-lasting performance with a 5-year warranty

Applications

  • Fans and blowers
  • Direct drive systems
  • HVAC systems
  • Variable speed setups
  • Mission-critical operations
Electrical Data
Rated Motor Output Power
3 HP
2.25 kW
Rated Motor Speed
1165 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
8.8/4.4 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
9
Service Factor
1.15
KVA Code
K
Nominal Efficiency
89.5
Nominal Power Factor
71
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
213T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
18.45"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
34
Temp Code
-
Mechanical Data
DE Bearing
6307
NDE Bearing
6206
Shaft Diameter
1.375"
Shaft Length
3.38"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus EEV
Country of Origin
USA
Warranty
5-Year
