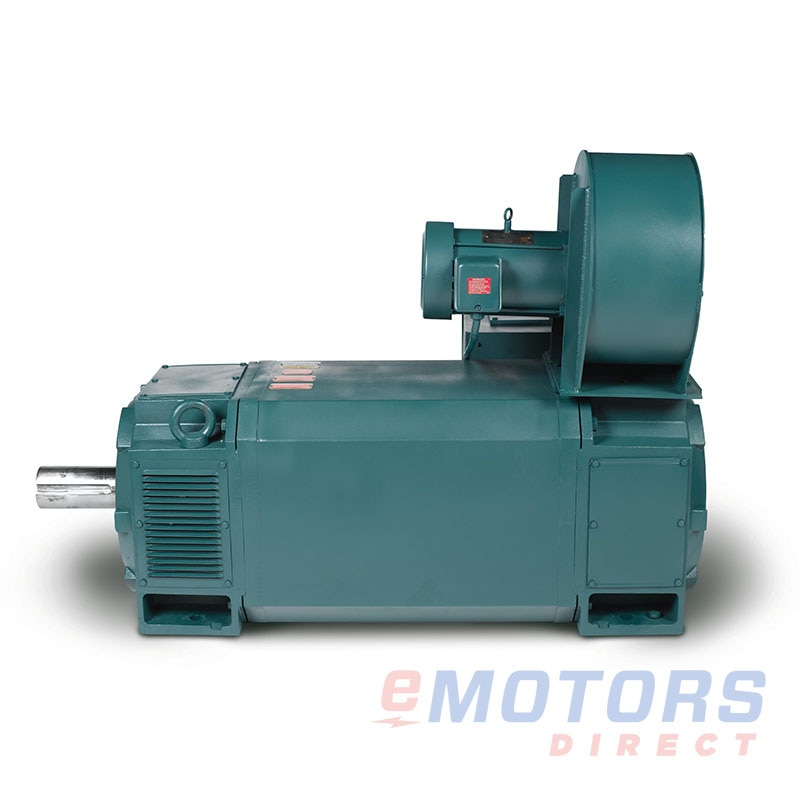

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor IDBRPM18154C

Baldor · RPM AC, Inverter Duty, Induction rotor, totally enclosed
15 HP 1760 1844CZ TEBC 460V Vector/Inverter Duty Motors
Catalog Number: IDBRPM18154C
HP
15
RPM
1800,3600
Voltage
460V
Frame
1844C
Phase
3
Enclosure
TEBC
Material
Aluminum
Mounting
C-Face / Rigid

Product-line overview

The Baldor RPM AC, Inverter Duty motor with an induction rotor and totally enclosed design offers robust performance in demanding industrial applications. Built with a power-dense square laminated frame, it provides a constant torque of 1000:1 for reliable operation. Featuring Class H insulation with a 40°C ambient temperature rating and a 1.0 service factor, this motor is equipped with three thermostats, one for each phase, to ensure optimal temperature management. It is designed for use with inverters only and includes both induction and caged-IPM rotors for versatile performance. The motor also features a shaft grounding brush for enhanced protection and optimized pole designs to maximize efficiency. Additionally, a QR code is provided for easy access to motor data, simplifying inverter configuration. This motor is ideal for a wide range of applications including winders, extruders, conveyors, cranes, hoists, centrifugal pumps, fans, and various process control systems.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

RPM AC, Inverter Duty, Induction rotor, totally enclosed

Features

  • Power-dense square laminated frame for compact efficiency
  • Delivers constant torque with a 10001 ratio
  • Class H insulation with a 40°C ambient temperature rating and 1.0 service factor
  • Equipped with three thermostats, one for each phase
  • Designed for inverter use only
  • Includes induction and caged-IPM rotors
  • Features a shaft grounding brush for protection
  • Optimized pole designs for better performance
  • QR code for easy motor data access and inverter configuration

Applications

  • Winding systems
  • Extrusion lines, conveyors, and lifting equipment like cranes and hoists
  • Centrifugal pumps and ventilation fans
  • Web processing, industrial process control, and testing stations
Electrical Data
Rated Motor Output Power
15 HP
Rated Motor Speed
1800, 3500 RPM
Rated Motor Voltage
460V
Rated Motor Current
21 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
1844C
Enclosure
TEBC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
180lb
Double Drilled
No
Frame Material
Aluminum
C-Dimension
23.89"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
1.625"
Shaft Length
-
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CCSA US
Country of Origin
USA
Warranty
3-Year
