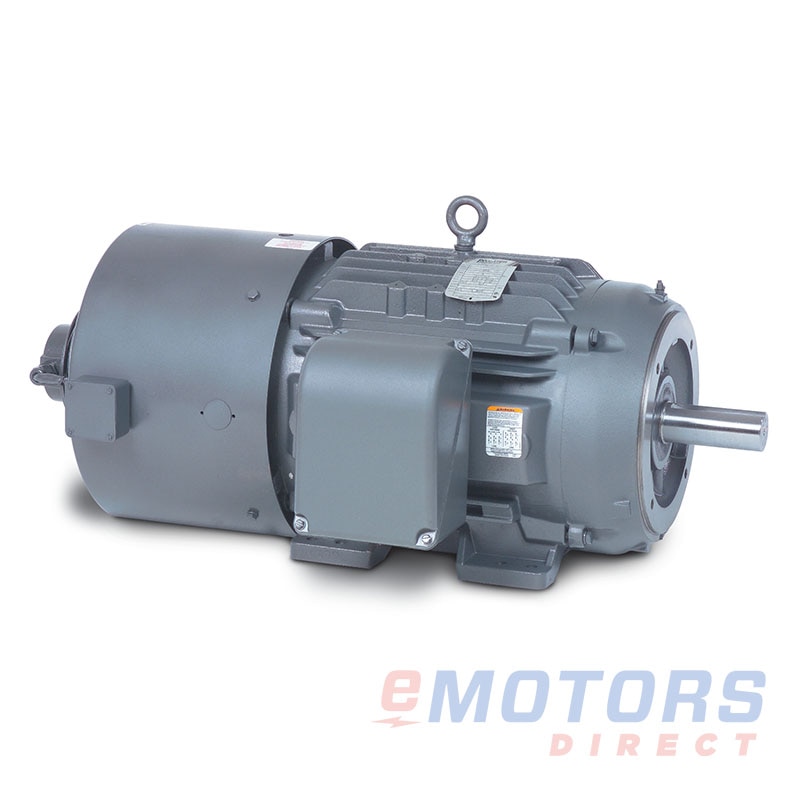

Baldor IDM4104T

Baldor · 1000:1 Turndown
30 HP 1800|4000 286T TEBC 230V|460V 1000:1 Turndown
Catalog Number: IDM4104T
HP
30
RPM
1800
Voltage
230V, 460V
Frame
286T
Phase
3
Enclosure
TEBC
Material
Cast Iron
Mounting
Rigid

Overview

1000:1 Turndown(RPM AC) motor is most suitable for tough variable speed industrial applications where high performance, and power density (compact size and weight) is most important.

CAD $4,285.88
Usually ships in 2 to 3 weeks
Flat Fee Shipping across Canada: $100.00
Need it Now?See our Cross-Referenced Matches for equivalent alternatives

Product Highlights

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Baldor ZDM4104T

    30 HP 1800|4000 286T Fr TEBC 1000:1 Turndown

    CAD $5,471.57
    Ships next business day
More Information

Description

Industrial electric motors are available for most general purpose applications and processes. However, some AC Variable Speed applications require constant torque at zero speed. Inverter/Vector motors are designed specifically for adjustable speed applications in a standard NEMA Frame motor. Additionally, the AC Inverter/Vector Motors can be ran across the line for bypass operation and can deliver a 1000:1 Speed Range in a standard TENV or TEBC Enclosure.

Features

  • Extensive HP Range 1/3 - 500hp
  • B Rise
  • IEC
  • 1000:1 CT
  • Low Noise
  • 841XL Features
  • Cast iron Frame Construction
  • Stock Availability
  • Corona Free insulation
  • Class F Insulation
  • 200% torque overload for one minute at base speed
  • Insulated Bearings
  • Constant horsepower 1.5 times base speed
  • Special Encoder provisions

Common Industries

  • Rubber
  • Automotive
  • Metals
  • Plastics
  • Converting
  • Pulp and Paper
  • Oil and Gas

Common Applications

  • Winders
  • Positioning
  • Extruders,
  • Web Processing
  • Oil Drilling
  • Induction Servo Spindle
  • Test Stands-low / high speed
