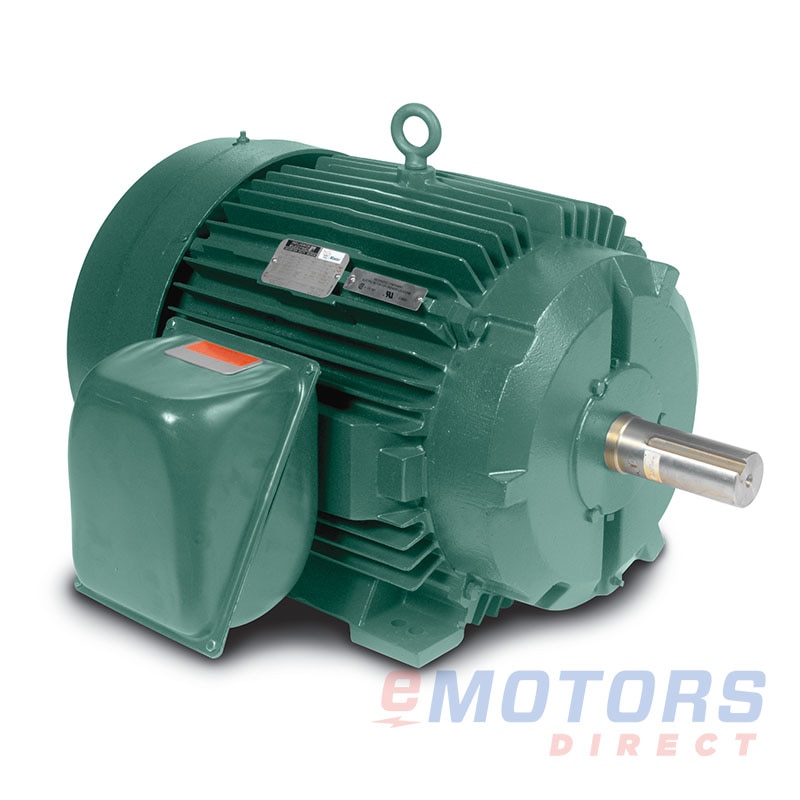

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor IDVSM3665T

Baldor · V*S Master, Inverter Duty, TEFC
5 HP 1750 184TC TEFC 230V|460V Vector/Inverter Duty Motors
Catalog Number: IDVSM3665T
HP
5
RPM
1800,2500
Voltage
230V,460V
Frame
184TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

The Baldor V*S Master® Inverter Duty motor with a TEFC (Totally Enclosed Fan Cooled) enclosure is built for continuous-duty industrial applications requiring variable speed and consistent torque. It delivers a 1000:1 constant torque ratio and is available in standard NEMA frame sizes. The motor includes encoder mounting provisions to support feedback systems and is equipped with three thermostats—one on each phase—for reliable thermal monitoring. Designed for robust performance, it's ideal for use in centrifugal pumps, fans, conveyors, extruders, cranes, hoists, winders, web processing systems, test stands, and various process control applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

V*S Master, Inverter Duty, TEFC

Features

  • Available in TENV, TEFC, and TEBC enclosures with 10001 constant torque capability
  • Encoder mounting provisions included
  • Equipped with three thermostats (one per phase) for temperature monitoring
  • Offered in standard NEMA frame sizes

Applications

  • Ideal for centrifugal pumps and fans
  • Suitable for extruders, conveyors, cranes, hoists, and winding equipment
  • Used in web processing, industrial control systems, and test stand operations
Electrical Data
Rated Motor Output Power
5 HP
Rated Motor Speed
1800, 2700 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
6.4 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
J
Nominal Efficiency
-
Nominal Power Factor
79
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
120lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
17.12"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6206
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
3-Year
