Baldor JL1303A

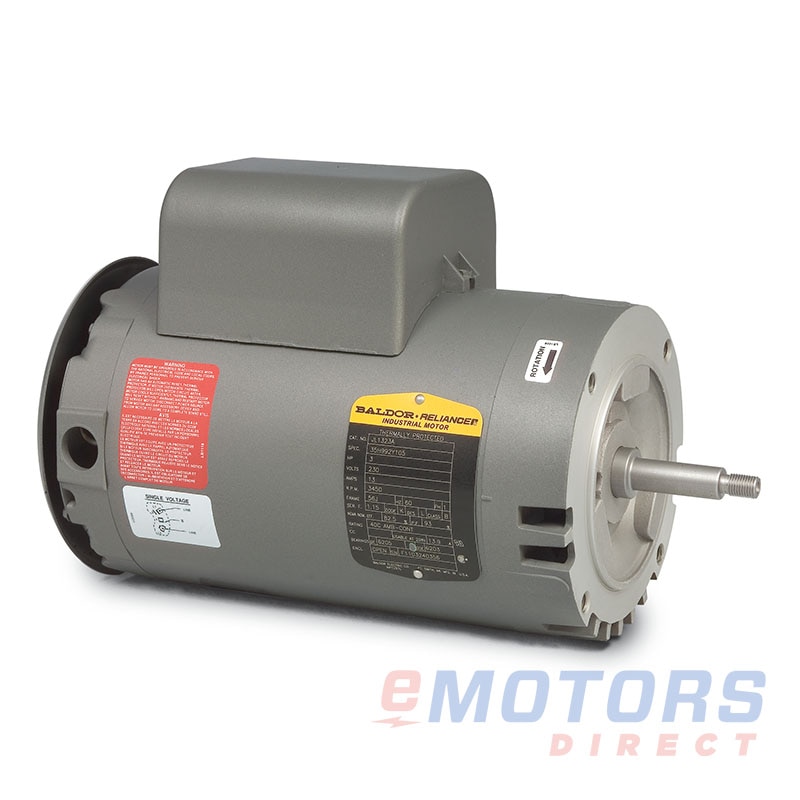

Baldor · Jet pump, single phase, ODP, Footless
1/2 HP 3450 56J ODP 115V|230V Pump Motors
Catalog Number: JL1303A
HP
1/2
RPM
3600
Voltage
115V,230V
Frame
56J
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor Jet Pump, featuring a single-phase ODP (Open Drip Proof) motor with a footless design, delivers reliable performance for various applications. It is equipped with automatic thermal overload protection and a corrosion-resistant stainless steel shaft extension for durability. The slotted opposite DE shaft simplifies installation, while the superior switch design ensures optimized torque profiles for efficient operation. Additionally, its dynamically balanced rotor helps reduce noise and extends bearing life, making it ideal for use in agricultural systems, general-purpose pumps, industrial machinery, food and beverage processing, swimming pool pumps, and wastewater applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Saint-Hubert, QC: In Stock
Milton, ON: In Stock
Edmonton, AB: In Stock
Edmonton [eMotors #2], AB: Out of Stock
Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Jet pump, single phase, ODP, Footless

Features

  • Integrated automatic thermal overload protection
  • Durable stainless steel shaft extension resistant to corrosion
  • Slotted opposite DE shaft for straightforward installation
  • Advanced switch design for optimized torque delivery
  • Dynamically balanced rotor to reduce noise and extend bearing life

Applications

  • Agricultural equipment
  • General-purpose and industrial pumps
  • Commercial machinery applications
  • Food and beverage processing
  • Swimming pool pump systems
  • Wastewater management
Electrical Data
Rated Motor Output Power
1/2 HP
.38 kW
Rated Motor Speed
3450 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
7.4/3.7 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.6
KVA Code
L
Nominal Efficiency
66
Nominal Power Factor
67
Leads (Qty, Size)
5
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56J
Enclosure
ODP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
26lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
12.51"
NEMA Design
N
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CWNDE
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
2.44"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
USA
Warranty
18-Month
