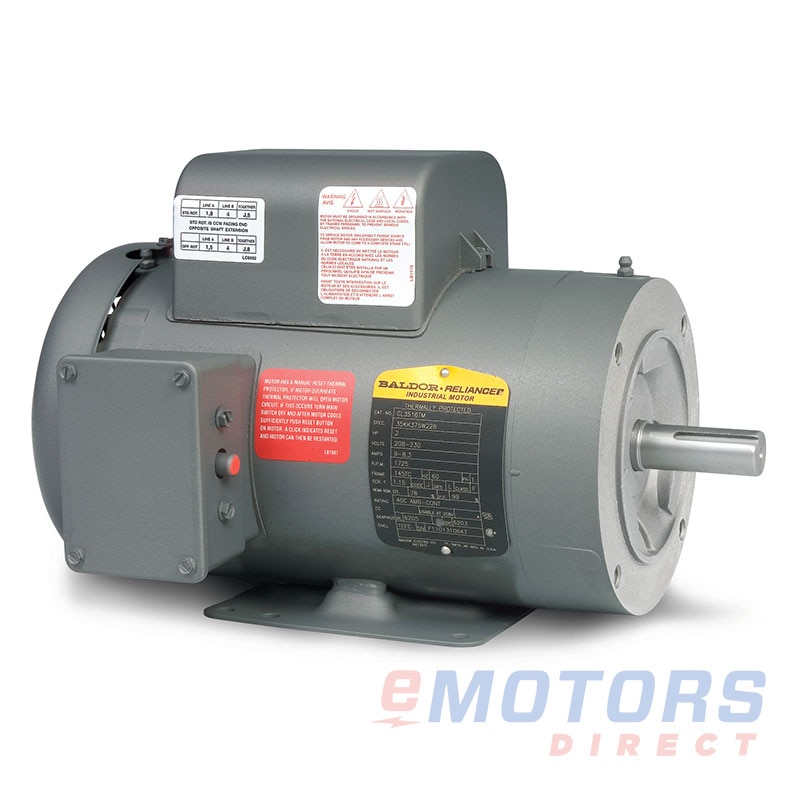

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor PCL3514M

Baldor · Pressure washer, single phase, TEFC, C-face foot mounted
1 1/2 HP 1725 56C TEFC 115V|230V General Purpose AC Motors
Catalog Number: PCL3514M
Spec Number: 35K358Y860
HP
1 1/2
RPM
1800
Voltage
115V, 230V
Frame
56C
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor Pressure Washer motor is designed for reliable and efficient performance in demanding pressure washing applications. This single-phase motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, providing excellent protection against dust, moisture, and other environmental factors. It incorporates a capacitor start, capacitor run design for smooth and efficient operation. The motor is available in 1.5 horsepower models, rated at 14 amps or less on 115 volts, ensuring optimal power for your pressure washer. Additionally, it is equipped with manual thermal overload protection to prevent overheating, ensuring long-lasting durability. The motor also meets UL and CSA recognized component approvals for enhanced safety and reliability. This motor is the ideal choice for pressure washers and steam cleaners, offering high performance in demanding cleaning tasks.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Pressure washer, single phase, TEFC, C-face foot mounted (4)

PCL3513M1 1/23600115V, 230V56C $833.45
PCL3515M23600115V, 230V56C $988.92
PCL3519M33600208-230V56C $1,083.34
PCL3514M1 1/21800115V, 230V56C $1,086.89

Pressure washer, single phase, TEFC, C-face foot mounted

Features

  • Equipped with manual thermal overload protection
  • Capacitor start, capacitor run design for efficient performance
  • 1.5 horsepower models rated at 14 amps or less on 115 volts
  • UL and CSA recognized component approval for safety and reliability

Applications

  • Ideal for pressure washers
  • Suitable for steam cleaner systems
Electrical Data
Rated Motor Output Power
1 1/2 HP
1.12 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
6 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
J
Nominal Efficiency
82.5
Nominal Power Factor
98
Leads (Qty, Size)
7#18
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.12"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
