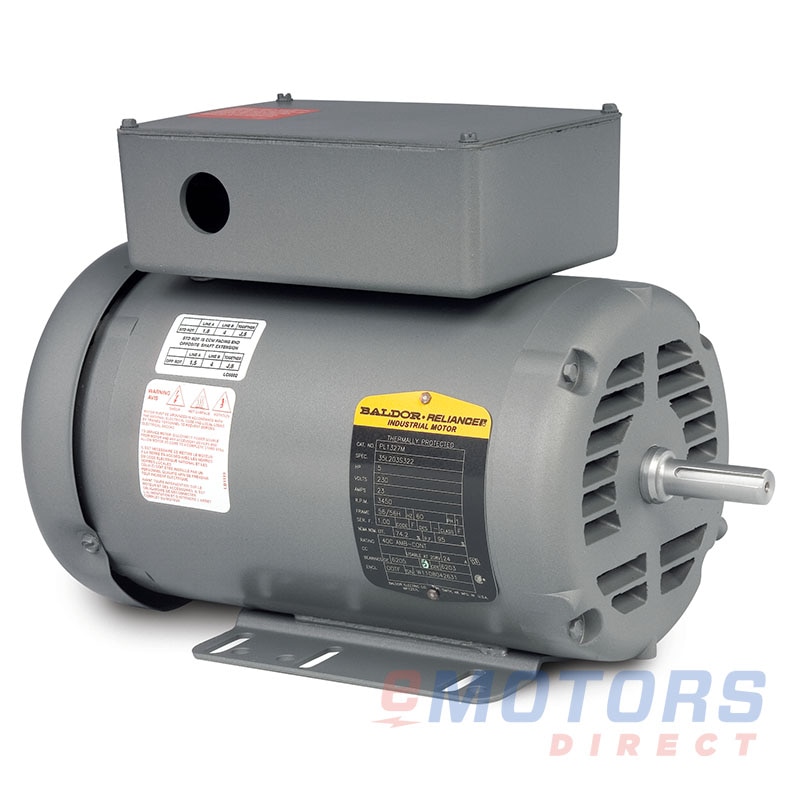

Baldor PL1327M

Baldor · Pressure washer, single phase, ODP, foot mounted
5 HP 3450 56H ODP 230V General Purpose AC Motors
Catalog Number: PL1327M
Spec Number: 35L203S322
HP
5
RPM
3600
Voltage
230V
Frame
56H
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor Pressure Washer motor is designed for high-performance and reliability in pressure washing applications. This single-phase motor features an Open Drip Proof (ODP) enclosure, allowing for efficient ventilation while protecting the motor from dust and moisture. It utilizes a capacitor start, capacitor run design to ensure smooth and efficient operation. The motor is available in 1.5 horsepower models, rated at 14 amps or less on 115 volts, providing the necessary power for demanding cleaning tasks. Equipped with manual thermal overload protection, the motor helps prevent overheating, ensuring safe and long-lasting operation. Additionally, it meets UL and CSA recognized component approvals, offering enhanced safety and performance. This motor is the ideal choice for pressure washers and steam cleaners, delivering consistent and durable performance.
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks
Edmonton, AB: In Stock
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Pressure washer, single phase, ODP, foot mounted (3)

PL1327M53600230V56H $1,003.83
PL1327M-C53600230V56HC $1,314.74
EPL1322M21725115V, 230V56 Contact for Pricing

Pressure washer, single phase, ODP, foot mounted

Features

  • Equipped with manual thermal overload protection
  • Capacitor start, capacitor run design for efficient performance
  • 1.5 horsepower models rated at 14 amps or less on 115 volts
  • UL and CSA recognized component approval for safety and reliability

Applications

  • Ideal for pressure washers
  • Suitable for steam cleaner systems
Electrical Data
Rated Motor Output Power
5 HP
Rated Motor Speed
3600 RPM
Rated Motor Voltage
230V
Rated Motor Current
23 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
F
Nominal Efficiency
74.2
Nominal Power Factor
95
Leads (Qty, Size)
2
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56H
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.81"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
