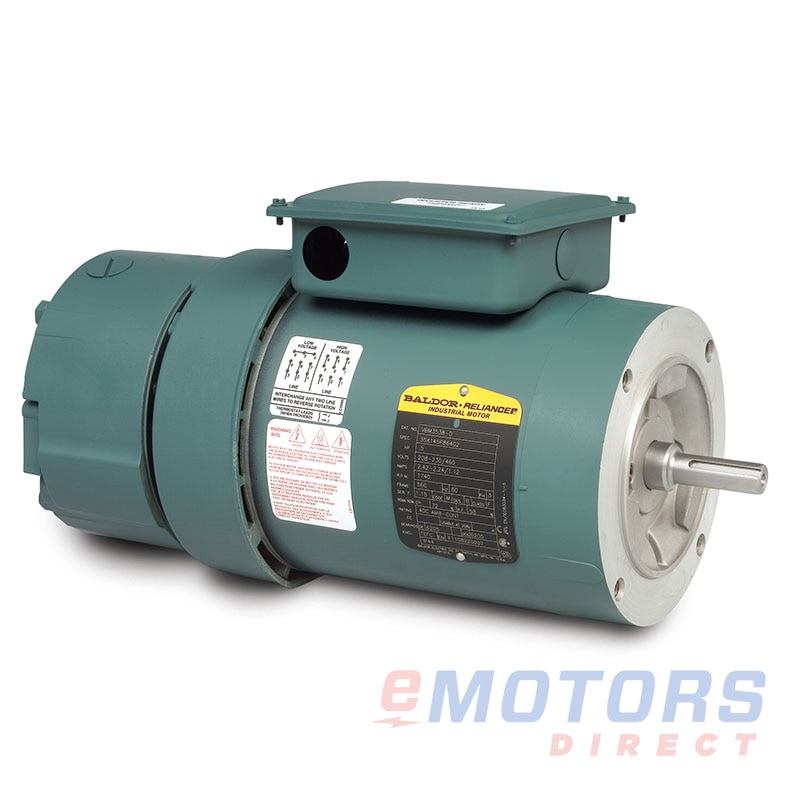

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor VEBM3558T-5D

Baldor · D-series brake motor, three phase, C-face footless
2 HP 1765 145TC TEFC 575V Brake Motor
Catalog Number: VEBM3558T-5D
HP
2
RPM
1800
Voltage
575V
Frame
145TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor D-Series Brake Motor, designed with a C-face footless configuration, is engineered for applications that require frequent starts and stops. It features a low-profile F-3 conduit box for most models, making installation straightforward. Equipped with a fast-acting DC brake and an integral rectifier, the motor provides quick and reliable stopping capabilities, making it ideal for high-cycle environments. Additionally, the motor includes a manual release lever for easy operation and maintenance. With flexible mounting options, it can be installed in various configurations to suit different system requirements. The motor is also designed with phase insulation, ensuring compatibility with inverters. Super-E® models meet NEMA Premium® efficiency standards, offering long-term energy savings. The D-Series Brake Motor is well-suited for a variety of applications, including hoists, baggage handling, conveyors, packaging equipment, door operators, unit handling, and elevators, delivering high performance and durability.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Milton, ON: In Stock
Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

D-series brake motor, three phase, C-face footless

Features

  • Low-profile F-3 conduit box design for most models
  • Fast-acting DC brake with built-in rectifier for quick stops
  • Manual release lever for easy operation
  • Versatile mounting options, adaptable to various configurations
  • Includes phase insulation and is compatible with inverter use
  • Super-E® motors meet NEMA Premium® efficiency standards

Applications

  • Hoists and baggage handling systems
  • Conveyors and packaging equipment
  • Door operators and unit handling systems
  • Elevators and material handling systems
Electrical Data
Rated Motor Output Power
2 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
575V
Rated Motor Current
2.3 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
86.5
Nominal Power Factor
75
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145TC
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
62lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
17.35"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6205
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, CE, UR, WEEE
Country of Origin
USA
Warranty
-
