Baldor VEBM3611T-5

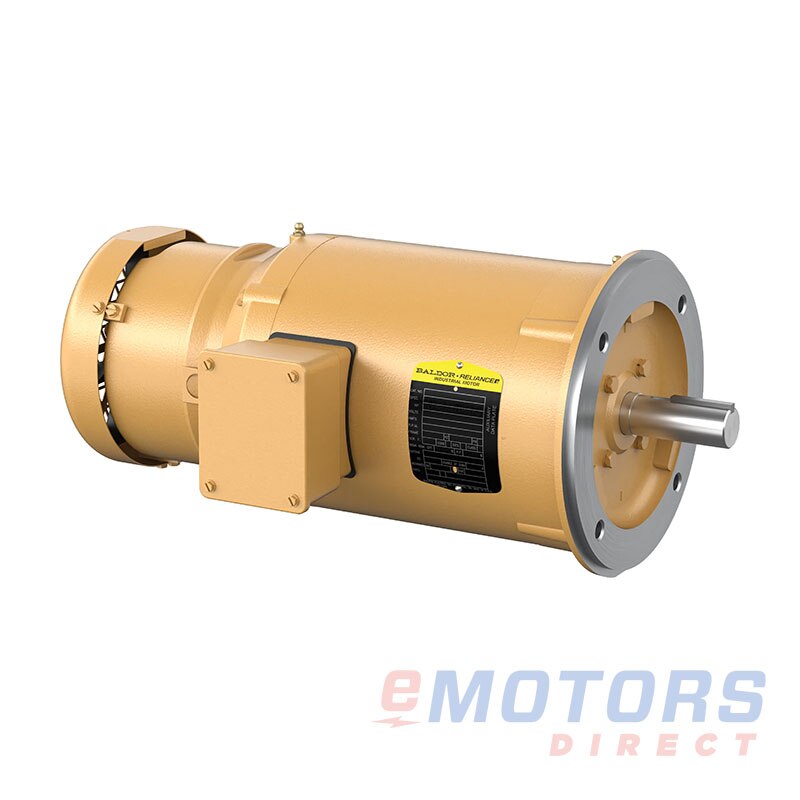

Baldor · Brake Motor, three phase, TEFC, C-face footless
3 HP 1760 182TC TEFC 575V Brake Motor
Catalog Number: VEBM3611T-5
HP
3
RPM
1800
Voltage
575V
Frame
182TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor three-phase, TEFC, C-face footless brake motor offers outstanding performance and versatility for a variety of industrial applications. It comes equipped with a manual release for easy operation, a spring-set brake for reliable stopping, and a vibration-damping base that ensures smooth, quiet performance. Featuring Super-E® motors with NEMA Premium® efficiency, this motor delivers energy savings without compromising on power. It's designed to be inverter-compatible, meeting the standards set by NEMA MG1 Part 31.4.4.2, and is ideal for vertical mounting, with the brake positioned either above or below the motor. Perfect for use in conveyors, unit handling systems, machine tools, door operators, speed reducers, packaging equipment, and many other general-purpose applications, this motor provides a reliable solution across a range of industrial needs.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Brake Motor, three phase, TEFC, C-face footless

Features

  • Includes manual release for convenient operation
  • Features a spring-set brake for reliable stopping
  • Base engineered for vibration reduction and smoother performance
  • Super-E® motor models offer NEMA Premium® energy efficiency
  • Compatible with inverters in accordance with NEMA MG1 Part 31.4.4.2
  • Optimized for vertical mounting—brake can be positioned above or below the motor

Applications

  • Conveyor systems
  • Unit material handling
  • Machine tool operations
  • Automatic door systems
  • Speed reduction mechanisms
  • Packaging and processing equipment
  • Versatile use across general industrial applications
Electrical Data
Rated Motor Output Power
3 HP
2.25 kW
Rated Motor Speed
1760 RPM
Rated Motor Voltage
575V
Rated Motor Current
3.1 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
89.5
Nominal Power Factor
77
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182TC
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
82lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
15.56"
NEMA Design
B
Degree of Protection (IP)
IP44
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
41 °C
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus EEV
Country of Origin
USA
