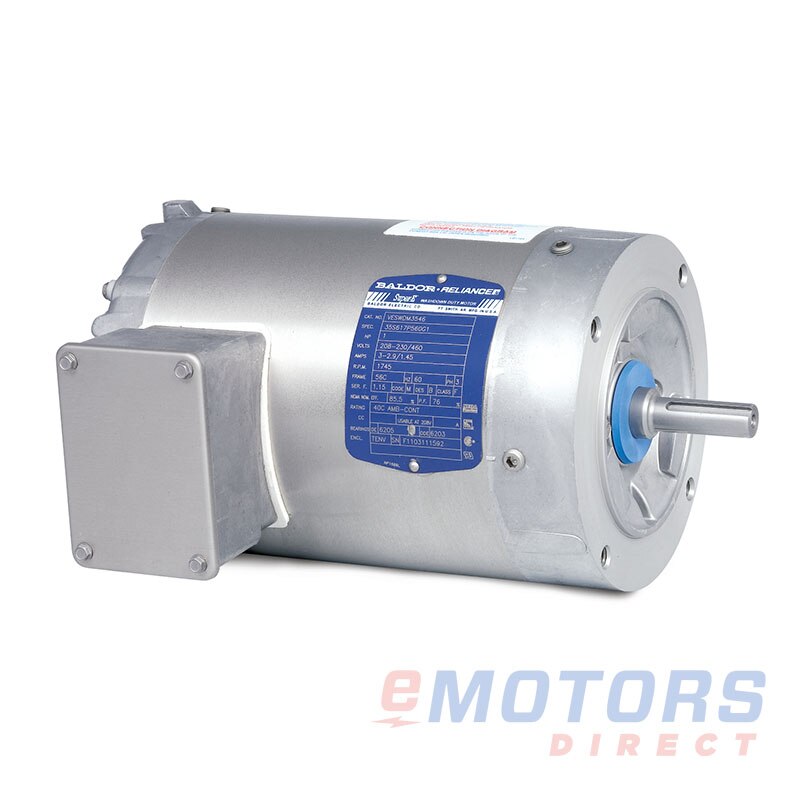

Baldor VESWDM3546

Baldor · Paint-Free, three phase, C-face footless
1 HP 1770 56C TENV 230V|460V Washdown Motors
Catalog Number: VESWDM3546
HP
1
RPM
1800
Voltage
208-230V,460V
Frame
56C
Phase
3
Enclosure
TENV
Material
Stainless Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor Paint-Free three-phase, C-face footless motor is designed for high durability and reliable performance in tough environments. Built with a 300 series stainless steel motor frame, endplates, conduit box, shaft, base, and hardware, this motor offers excellent resistance to corrosion. It features sealed ball bearings and a non-contact rotating labyrinth seal for added protection against contaminants. With no exterior paint, the motor avoids the risk of peeling or degradation over time, making it ideal for demanding applications. Backed by a 3-year warranty, this motor is perfect for food processing, outdoor environments, and packaging applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Milton, ON: In Stock
Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Paint-Free, three phase, C-face footless

Features

  • Motor frame, endplates, conduit box, shaft, base, and hardware made from durable 300 series stainless steel
  • Sealed ball bearings for enhanced reliability
  • Non-contact rotating labyrinth seal for superior protection
  • No exterior paint to prevent peeling or degradation
  • Includes a 3-year warranty for added peace of mind

Applications

  • Ideal for food processing environments
  • Suitable for outdoor use
  • Perfect for packaging applications
Electrical Data
Rated Motor Output Power
1 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
1.4 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TENV
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
39lb
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
12.07"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
  • CAD 3DRegister or log in to download

Downloads unlock once you're signed in.
