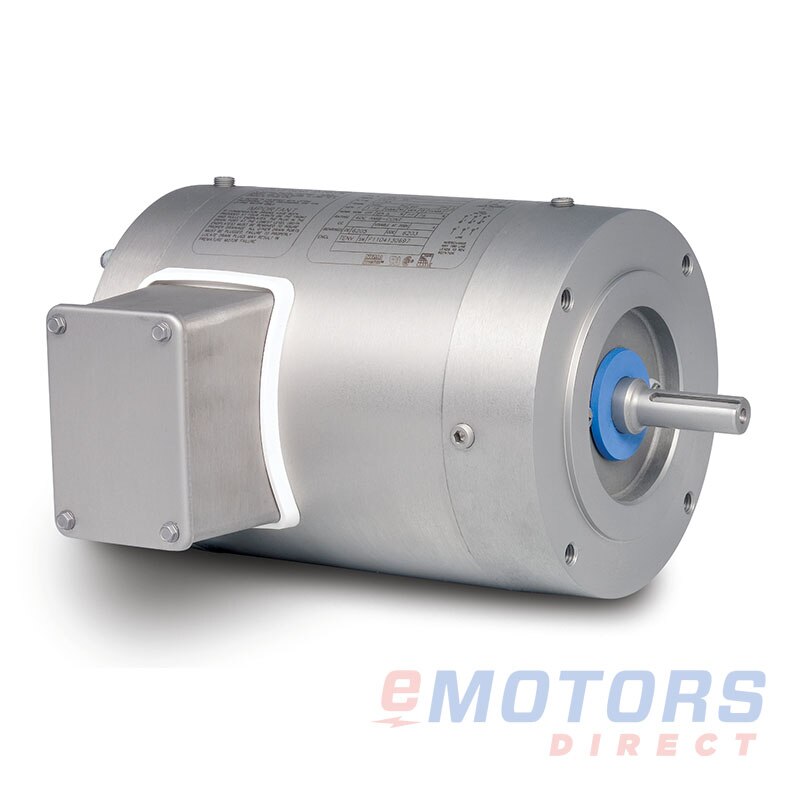

Baldor VSSWDM3538

Baldor · Stainless Steel, three phase, C-face footless
1/2 HP 1775 56C TENV 230V|460V Washdown Motors
Catalog Number: VSSWDM3538
Spec Number: 35V824M303G1
HP
1/2
RPM
1800
Voltage
208-230V, 460V
Frame
56C
Phase
3
Enclosure
TENV
Material
Stainless Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor stainless steel three-phase, C-face footless motor is engineered for durability in demanding environments. Constructed from high-quality 300 series stainless steel, this motor features a corrosion-resistant frame, endplates, conduit box, shaft, base, and hardware. It is designed with four condensate drains in each endplate and sealed endplate rabbets for additional protection. The labyrinth seals on both the drive-end (DE) and opposite drive-end (ODE) ensure enhanced sealing, providing long-lasting performance even in harsh conditions. Ideal for applications requiring robust and reliable operation, such as pumps, wastewater systems, and food processing, this motor is backed by a 3-year warranty for added peace of mind.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Stainless Steel, three phase, C-face footless

Features

  • Motor frame, endplates, conduit box, shaft, base, and hardware made from durable 300 series stainless steel
  • Four condensate drains located in each endplate
  • Sealed endplate rabbets for added protection
  • Labyrinth seals on both drive-end (DE) and opposite drive-end (ODE)
  • Includes a 3-year warranty for peace of mind

Applications

  • Ideal for pumps and wastewater systems
  • Suitable for food processing environments
  • Perfect for wet conditions
  • Great for packaging applications
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
0.8/1.6 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
1.7
Service Factor
1.25
KVA Code
N
Nominal Efficiency
75.5
Nominal Power Factor
64
Leads (Qty, Size)
9#18
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TENV
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
11.09"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
-
