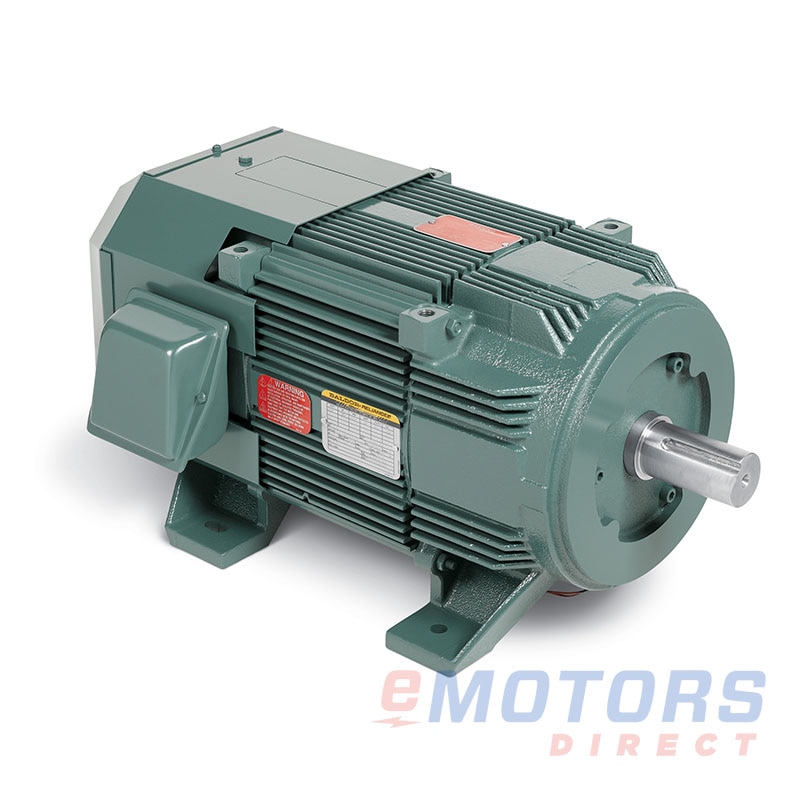

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor XEFRPM401004

Baldor · RPM XE, three phase, TEFC, foot mounted
100 HP 1800 405T TEFC 460V General Purpose AC Motors
Catalog Number: XEFRPM401004
Spec Number: H40-A000-0001
HP
100
RPM
1800
Voltage
460V
Frame
405T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Baldor RPM XE three-phase motor is designed to offer exceptional performance and efficiency for a wide range of industrial applications. With its Totally Enclosed Fan-Cooled (TEFC) construction, it provides superior protection against dust, dirt, and moisture, ensuring long-lasting durability. The foot-mounted configuration ensures a secure and stable installation, while the motor operates with efficiency levels that exceed NEMA Premium standards. The RPM XE is engineered for across-the-line operation and is suitable for adjustable frequency power in scalar mode. With a high power density and the ability to achieve Super Premium (IE4) efficiency when operated with a VFD, this motor is perfect for applications demanding reduced weight, low inertia, and ultimate energy efficiency.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

RPM XE, three phase, TEFC, foot mounted

Features

  • Delivers efficiency levels two to four tiers higher than NEMA Premium standards
  • Power-dense design with standard NEMA frame sizes for easy integration
  • Built for reliable across-the-line operation
  • Compatible with adjustable frequency power in scalar mode
  • Achieves Super Premium (IE4) efficiency when paired with a VFD
  • Operates at true synchronous speed regardless of load
  • Ultra Premium (IE5) efficiency when run across the line
  • Equipped with a shaft grounding brush for enhanced protection

Applications

  • Ideal for applications requiring reduced weight or inertia
  • Perfect for centrifugal fans and pump systems
  • Suitable for compressor applications
  • Continuous operations that demand top-tier efficiency
Electrical Data
Rated Motor Output Power
100 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
460V
Rated Motor Current
98 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
F
Nominal Efficiency
-
Nominal Power Factor
99.1
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
405T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
40.56"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
2.875"
Shaft Length
7.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CCSA US
Country of Origin
USA
Warranty
-
