Baldor DMG2320-C

Baldor · Generators

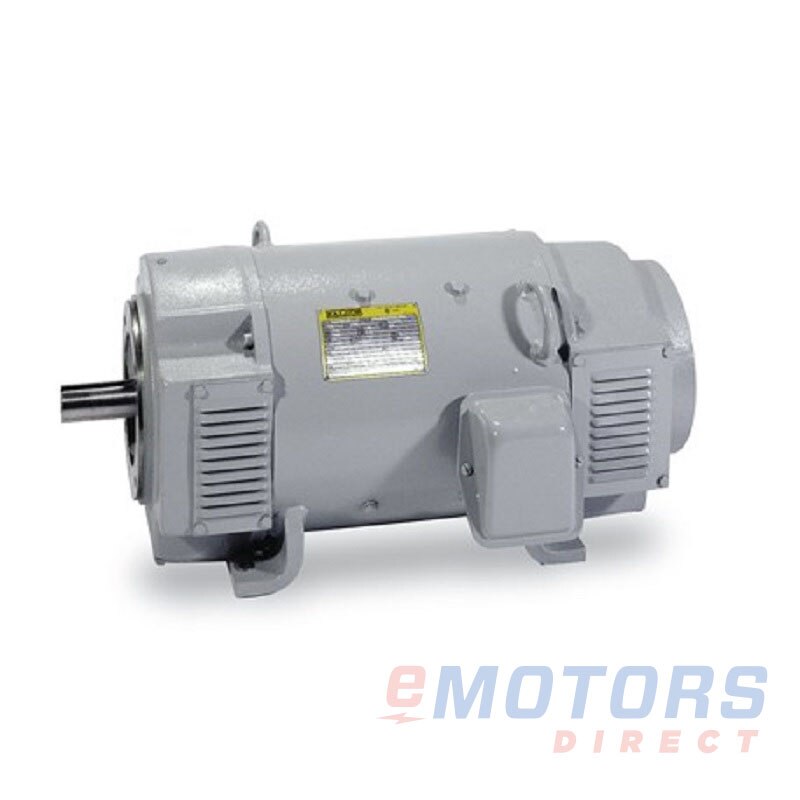

20 KW 1750 288ATC ODP 230V Generator
Catalog Number: DMG2320-C
HP
-
RPM
1800
Voltage
230V
Frame
288ATC
Phase
-
Enclosure
ODP
Material
Rolled Steel
Mounting
C-Face / Rigid

Overview

Lifting Magnet Generators provide power for lifting electro-magnets used in scrap and bulk metal handling facilities. Horizontal motors may be belted from the diesel engine or the motors with C-faces may be coupled to the PTO drive of the crane.

CAD$44,028.42
Final Sale Product
Contact us for delivery dates

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Returns & Refund Policy

Baldor: Generators (18)

DMG2305-2500230V1810AT $23,480.80
DMG2307-2500230V219AT $23,947.00
DMG2310-2500230V219AT $24,596.60
CDMG2310-2500230V219ATC $25,085.20
DMG2305-C-2500230V1810ATC $25,574.26
DMG2307-C-2500230V219ATC $26,569.16
DMG2325-1750230V328AT $26,630.09
DMG2310-C-2500230V219ATC $27,068.76
DMG2315-1750230V259AT $35,424.20
CDMG2315-1750230V259ATC $36,715.00
DMG2315-C-1800230V259ATC $38,864.94
DMG2320-1750230V288AT $39,219.60
CDMG2320-1750230V288ATC $40,986.40
DMG2320-C-1800230V288ATC $44,028.42
CDMG2325-1750230V328ATC $44,595.60
DMG2333-1750230V328AT $53,772.60
CDMG2333-1750230V328ATC $55,946.80
DMG2340-1750230V329AT $58,944.20

Features

  • Class H insulation with Class F temperature rise
  • Precision brush holders
  • Constant pressure brush springs
  • Double sealed bearings
  • Compound wound with drooping voltage characteristics
  • CDMG generators have C-face and base mounting

Common Applications

  • Crane mounted lifting magnets

eMotors Direct’s stock of lifting magnet generators are for use in scrap and bulk metal handling facilities. They are most often mounted on the cranes in the yard of metal recycling plants or steel mills. The generators shaft is turned either by a belt connected to the diesel engine (horizontal motors) or the PTO drive shaft of the crane (C-face mounted motors), the mechanical energy of the spinning shaft is captured internally and converted into electrical energy. The electrical energy or current is sent to the magnet which creates the necessary magnetic field to pick up and move the intended metal object.

Our generator category covers 18 different SKUs from Baldor, a top trusted electric motor brand. All the lifting magnet generators create a field voltage of 230V, have an open drip proof (ODP) enclosure, and are manufactured with rolled steel. You have the choice of multiple different frame sizes, and rigid or C-face mounting options. Select a generator with a base speed of either 1750 or 2500 RPM.

Shop generators online through our Canadian website today. With 18 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
- HP
20 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V
Rated Motor Current
2.93-1.80 AMP
Phase
-
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
288ATC
Enclosure
ODP
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
675lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
32.00"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6210
NDE Bearing
6209
Shaft Diameter
1.875"
Shaft Length
3.75"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
USA
Warranty
2-Year
